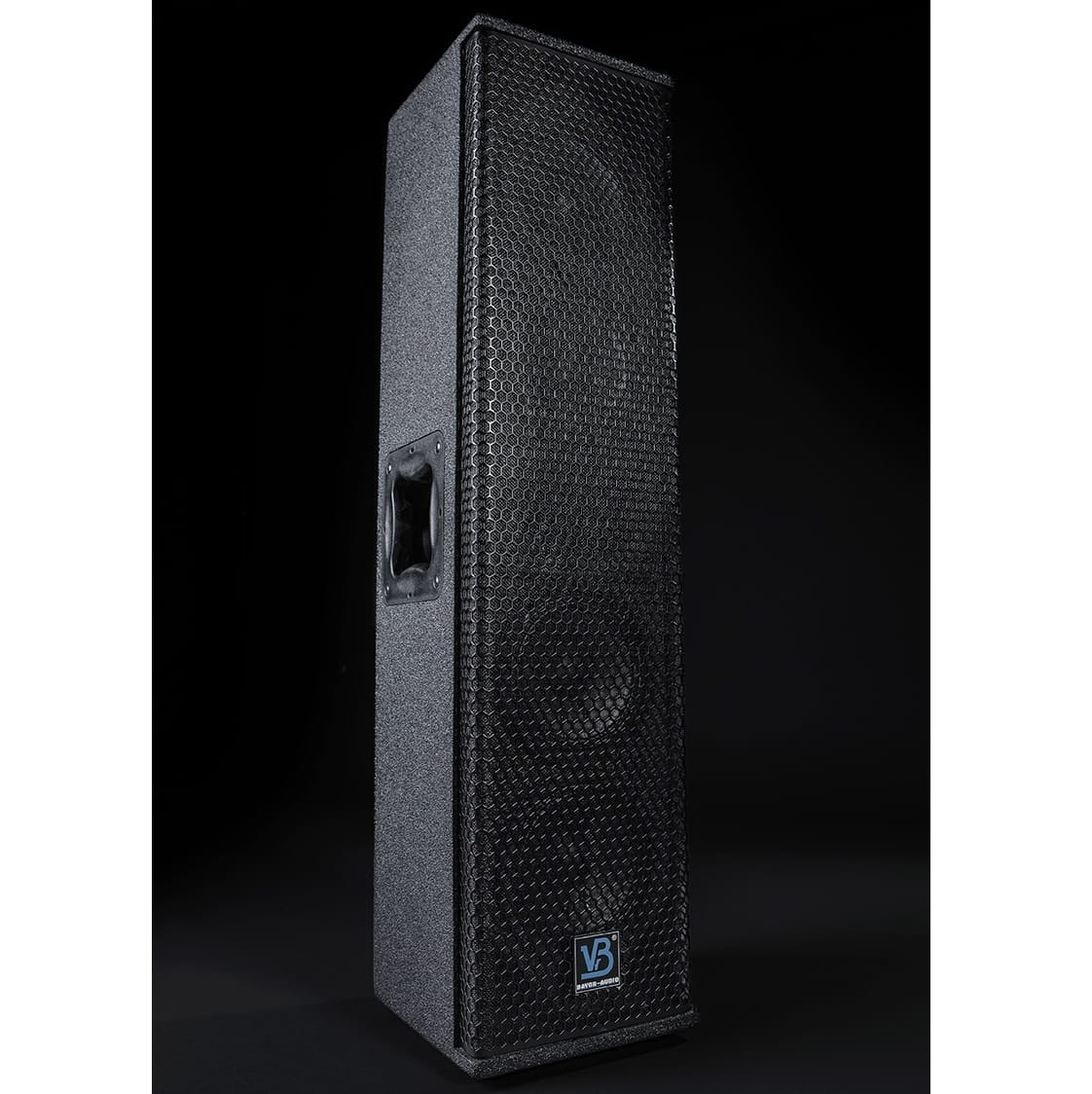

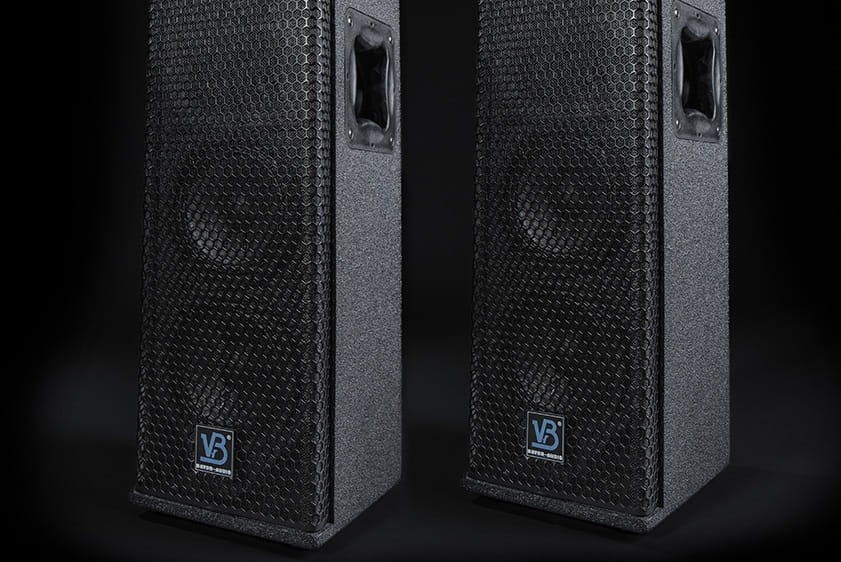

Bayor Audio DA46

This satellite features a modified d'Appolito configuration. High power and efficiency, controlled directivity, and extensive functionality. It's an excellent choice for musicians, mobile DJs, and professional sound reinforcement companies and installations. Bayor-Audio's #2 best-selling product.

Perfect for playing music as  a satellite  or as  a full-range set  for speeches and conferences.

It works well as  outfill, frontfill and delayline  in large systems.

Built using a modified d'Appolito configuration, it combines  the advantages of both line and point source arrays . It is a continuation of the DA line, which previously included systems with 8-, 10-, and 12-inch speakers.

Inside, it houses four six-inch FaitalPRO woofers and a compression driver from the same brand. Thanks to its symmetrical design, the device features  increased directivity  (fewer destructive reflections from the ceiling and floor) in the vertical axis while maintaining a symmetrical SPL distribution.

Both  the frequency and phase response are very even  across the entire frequency spectrum, which is rare in passive systems.

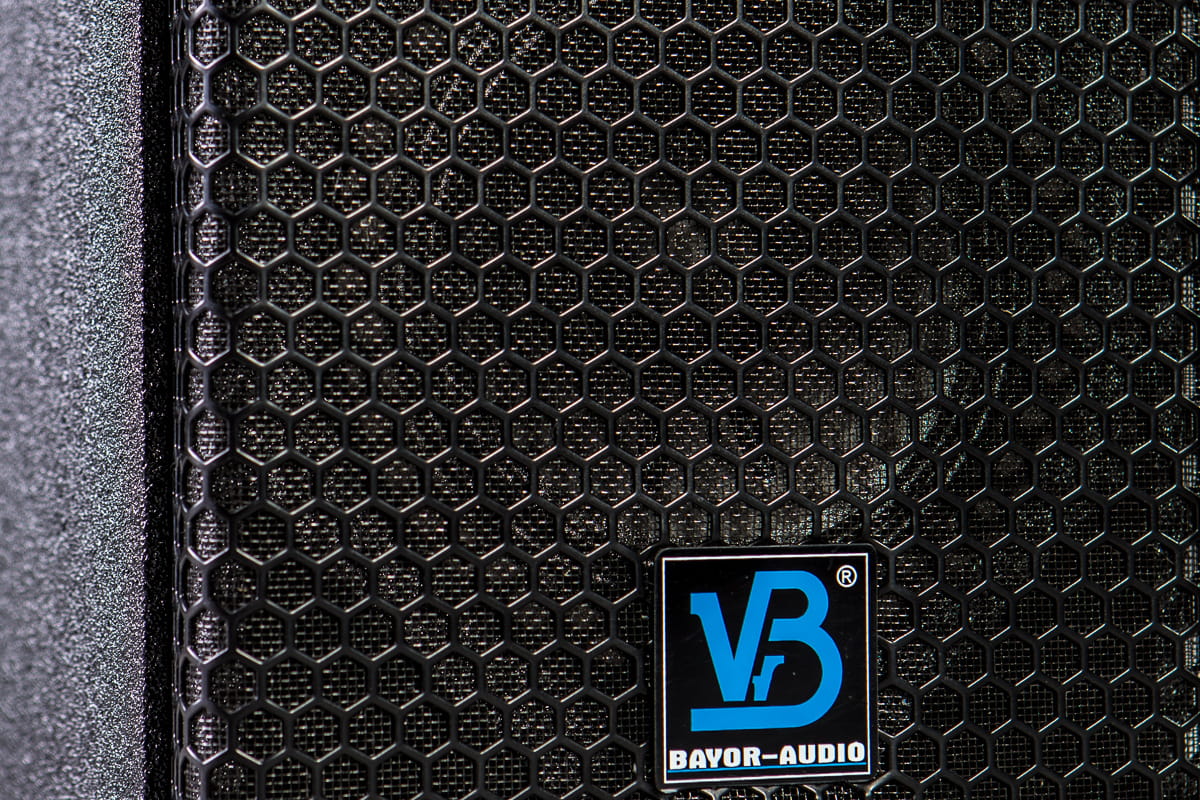

At the front  there is a honeycomb mesh with an additional  rain protection system - the column is largely resistant to external factors.

Currently we offer it in a set with the  Nsub sub-bass .

It is also available in an active version  DA46Active , with a built-in Powersoft module with its own DSP.

Parameters:

• 4x 6"MF speakers + 1x driver 1"/1.7" voice coil
• power 520W + 60W AES / 1040W + 120W Program
• passive division
• recommended continuous amplifier power ~600W
• Nominal SPL 101dB/1W
• SPL Max (Continuous) 128.5 dB / 134.5 dB Peak
• usable range 65-24000 Hz (-10dB)
• weight about 21.5 kg.
• dimensions: 930 x 230 x 235 mm (H x W x D).

Tested by Live Sound & Installation:

"(...)In the case of the DA46 satellite and the HBP12HP subwoofer, it's rare to encounter such a refined, precise, and versatile sound. It's also significant that the sets are very solidly and aesthetically made. Thanks to their small size, they easily fit in the trunk of a station wagon. Without a doubt, a pair of full-range speakers and subwoofers will handle the sound reinforcement of a club, concert hall, or even a small outdoor venue.(...)"

Marek Kozik,  Live Sound & Installation , April 2016.
