DUKE MAX 8XD181 2XLA3C 2XMBR118 up to 1500 people
Opis
PRODUCT DESCRIPTION

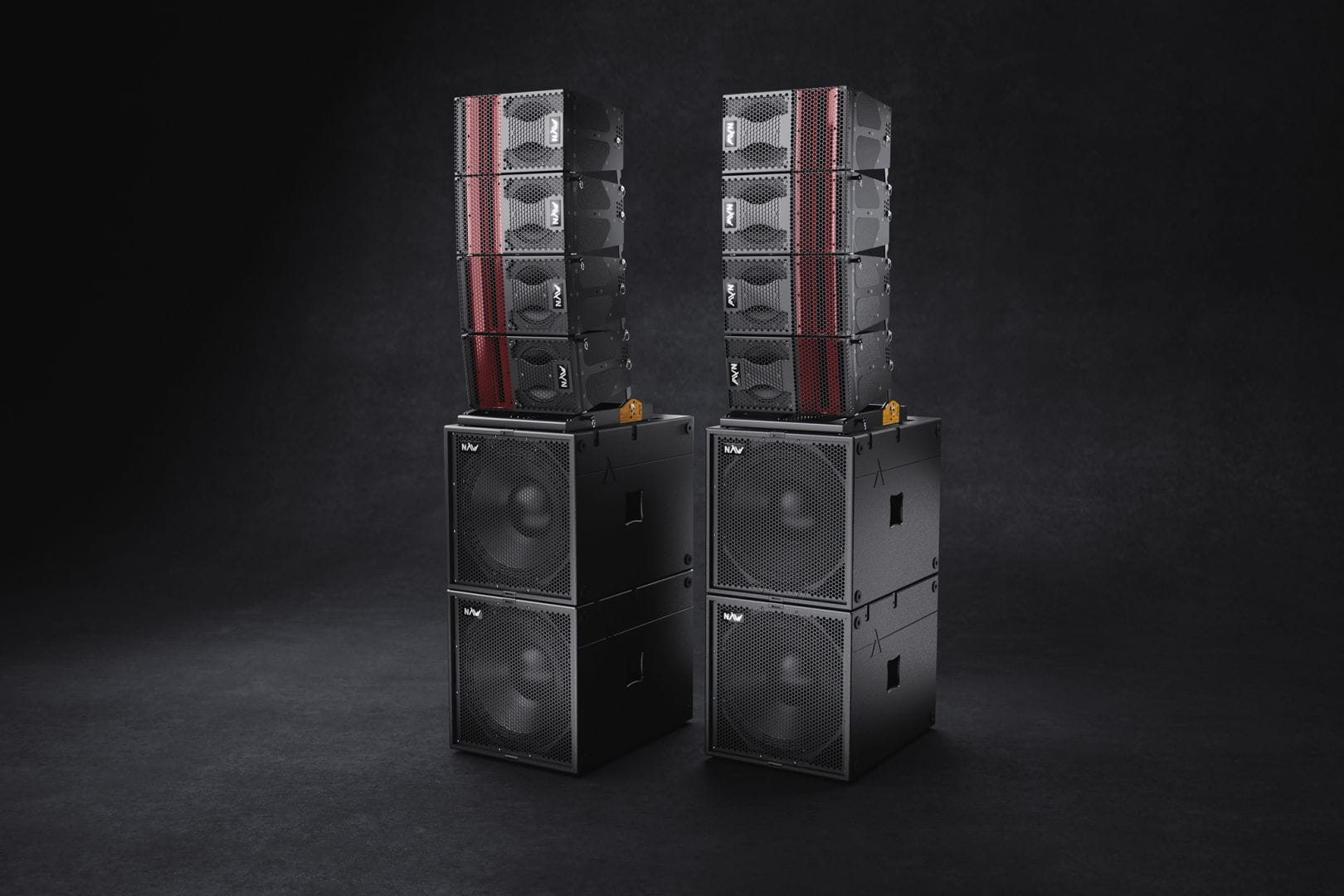

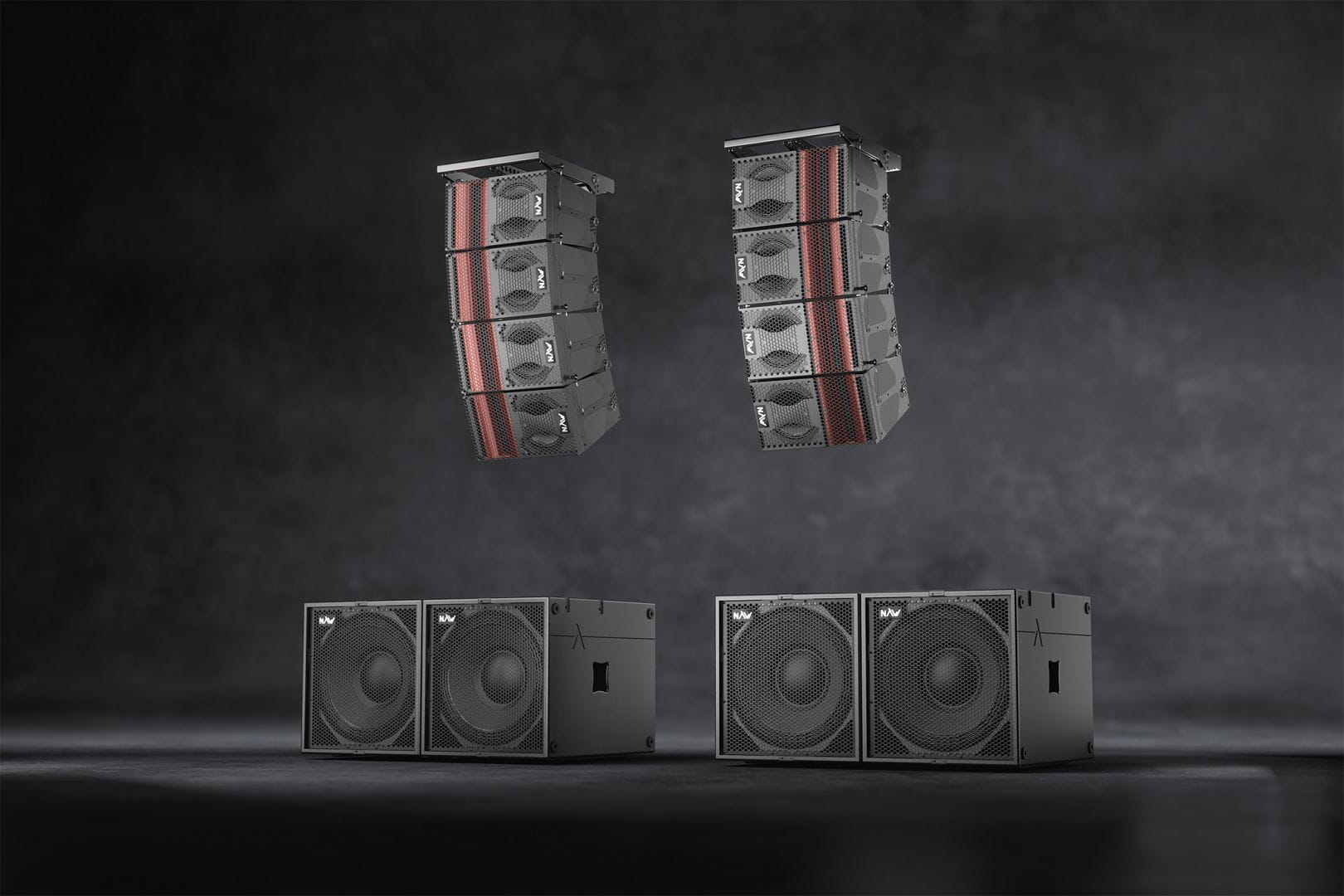

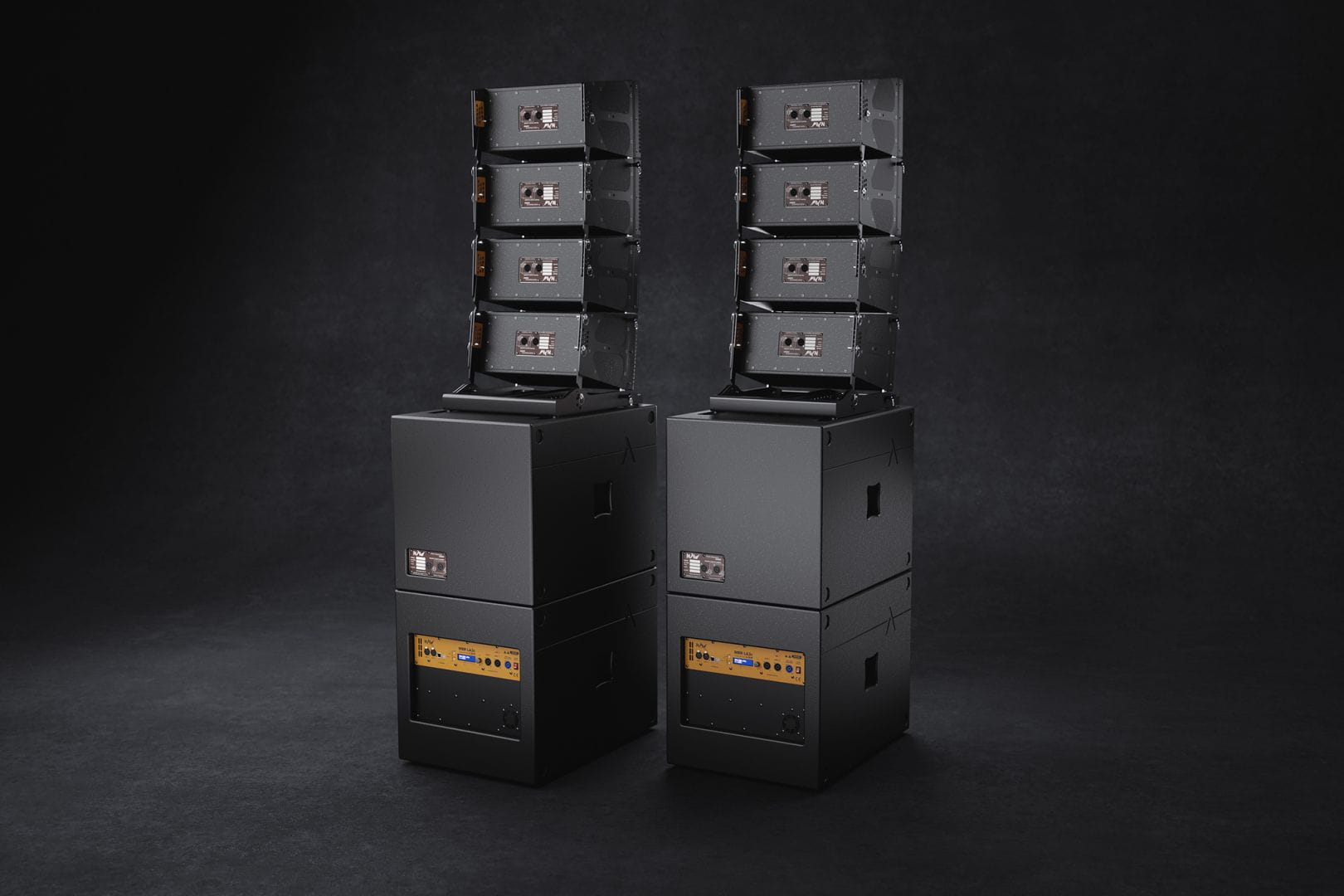

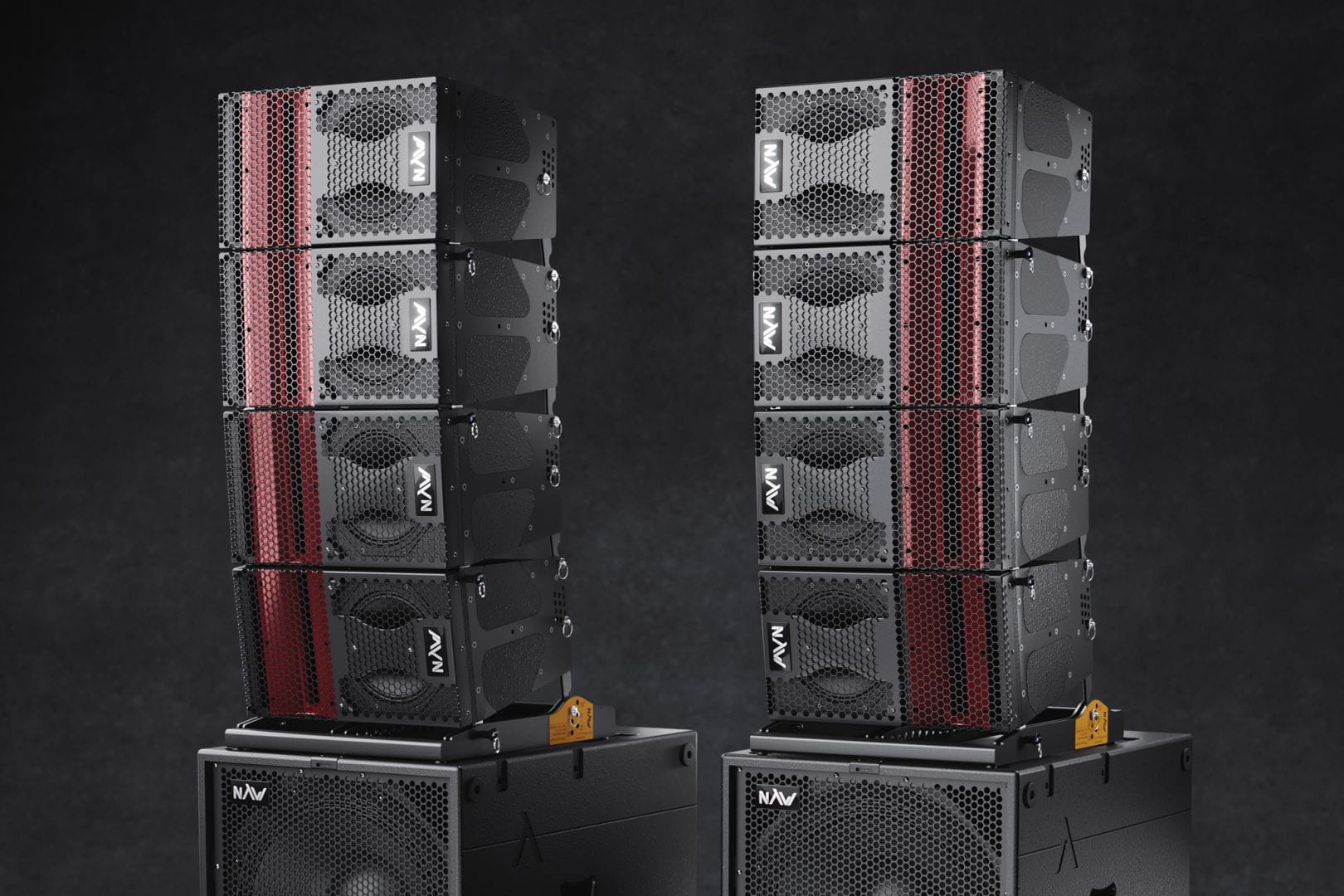

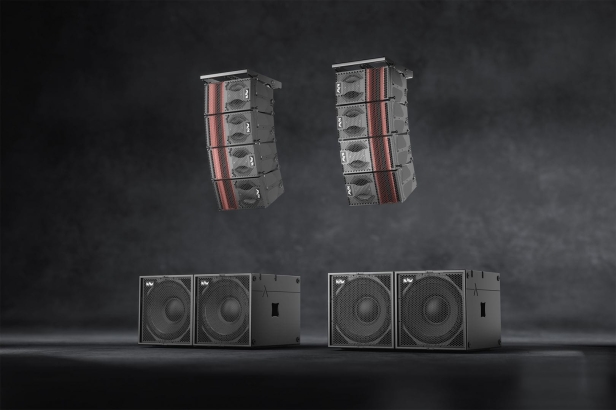

The largest set in the mobile group, based on Duke D181 line array modules. The MAX version includes four D181 modules per side (two with wide and two with narrow horizontal directivity), two LA3c basses, and two MBR118s, along with all the accessories needed for proper operation (crates, skateboards, covers). It offers enormous capabilities in just a few easy-to-configure components. Suitable for events of up to 1,500 people, it can be easily expanded to even larger outdoor venues.
As in smaller VMS systems, we've integrated the power amp with DSP in two LA3c basses (an active MBR118 for the line array modules). The D181 Duke modules operate in bi-amplified mode. This solution offers a selection of filters and protections suitable for a line array system, as well as advanced control options and sound quality without compromising ergonomics, portability, or ease of use.
The system is designed for bands, DJs, and sound companies providing sound for both small and large events. In the configuration shown, it delivers excellent sound in large venues (including acoustically challenging ones) and small outdoor venues up to 30 meters away, and is fully scalable, allowing for extensive expansion options. Combining two systems allows for the suspension of up to eight D181 line array modules per side and the use of eight MBR118 bass modules. This arrangement provides concert-quality sound up to 50 meters from the stage. The DSP processors built into the basses can be interconnected via Ethernet and remotely controlled from the mixer.
THE SET INCLUDES:

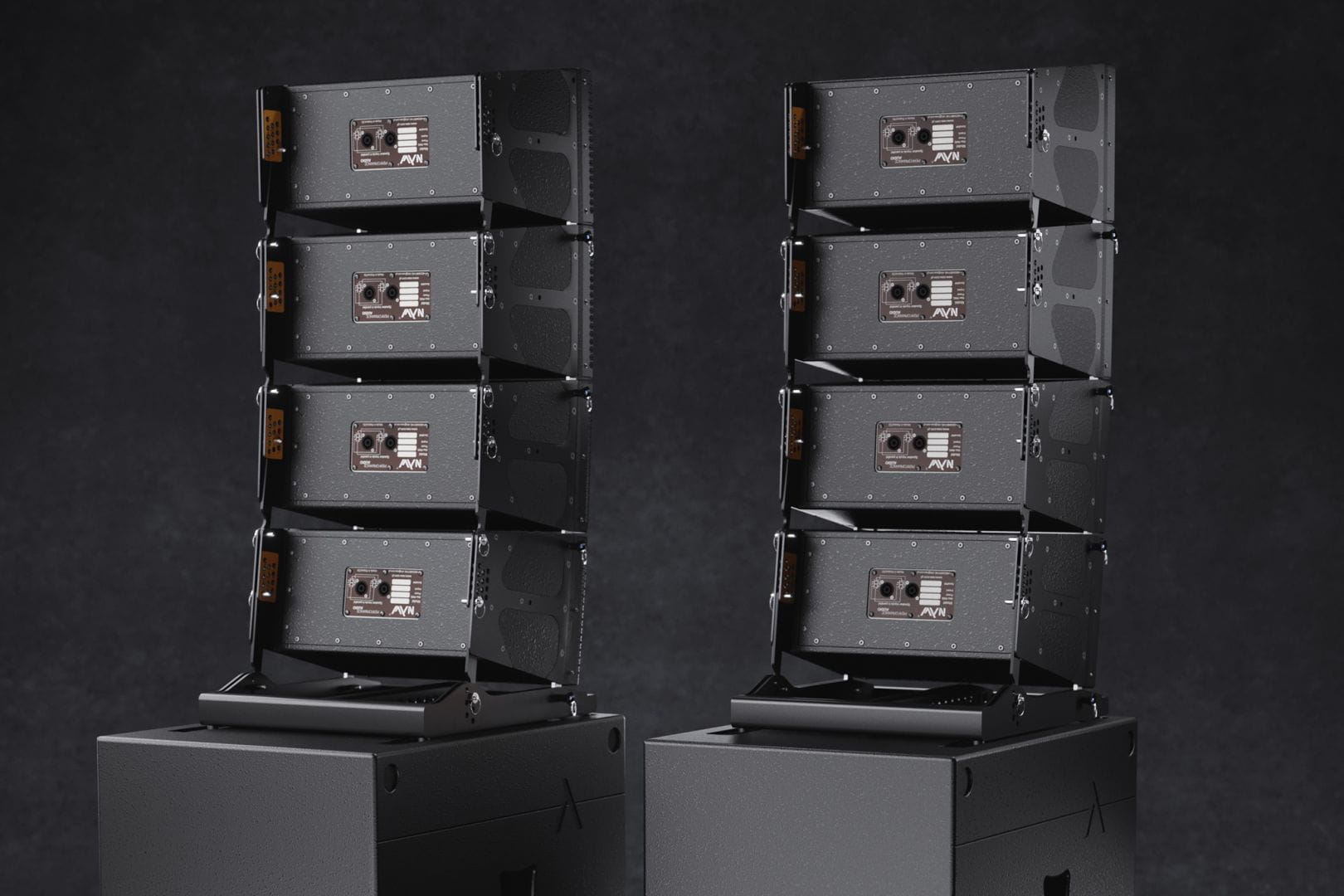

- 8 Duke D181 linear modules right and left (two 110 degrees and two 80 degrees of horizontal directivity)

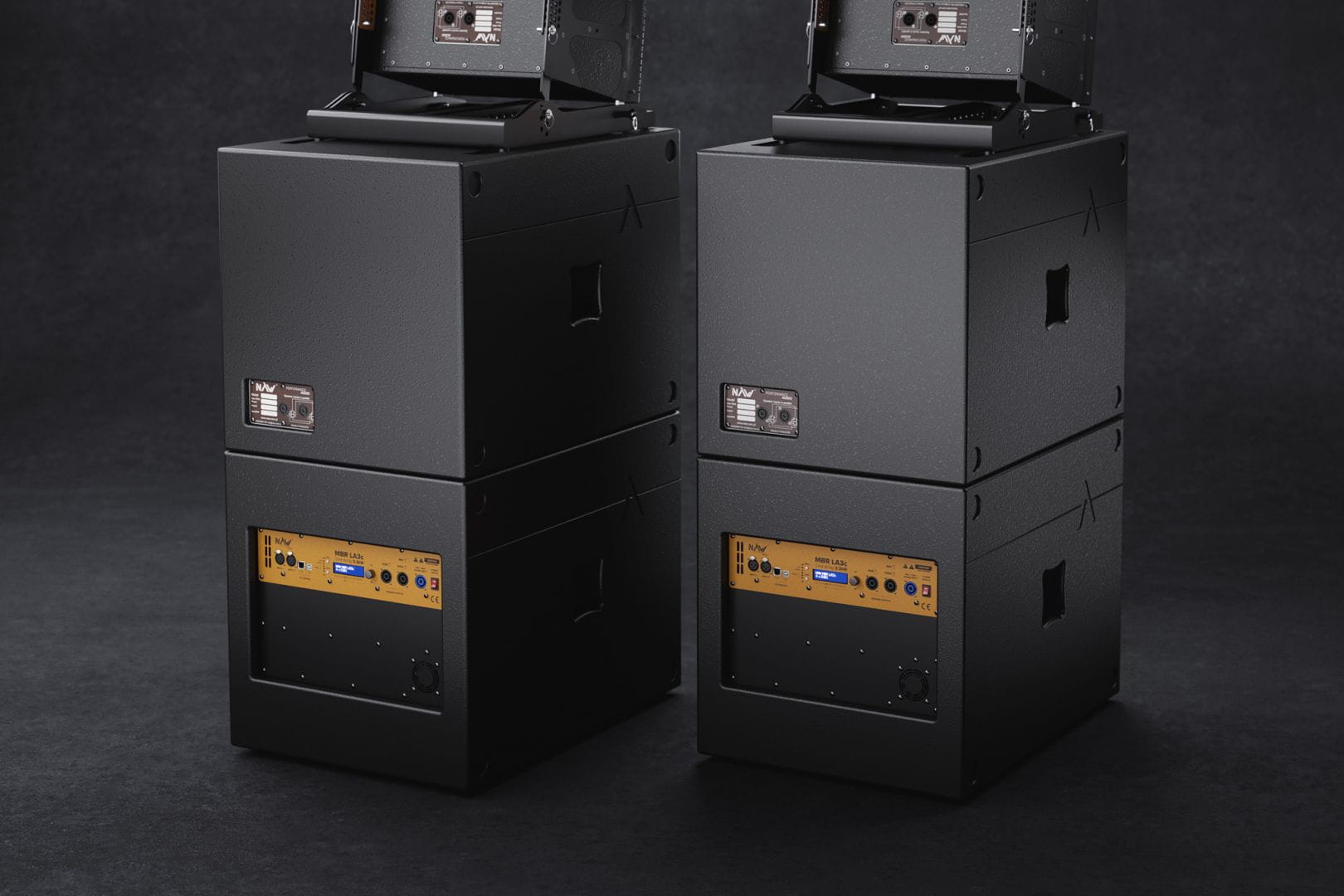

- Two LA3c active basses with an integrated 4100W 3-channel amplifier and built-in control processor. Selectable DSP, EQ, and delay settings, and remote control via Ethernet.

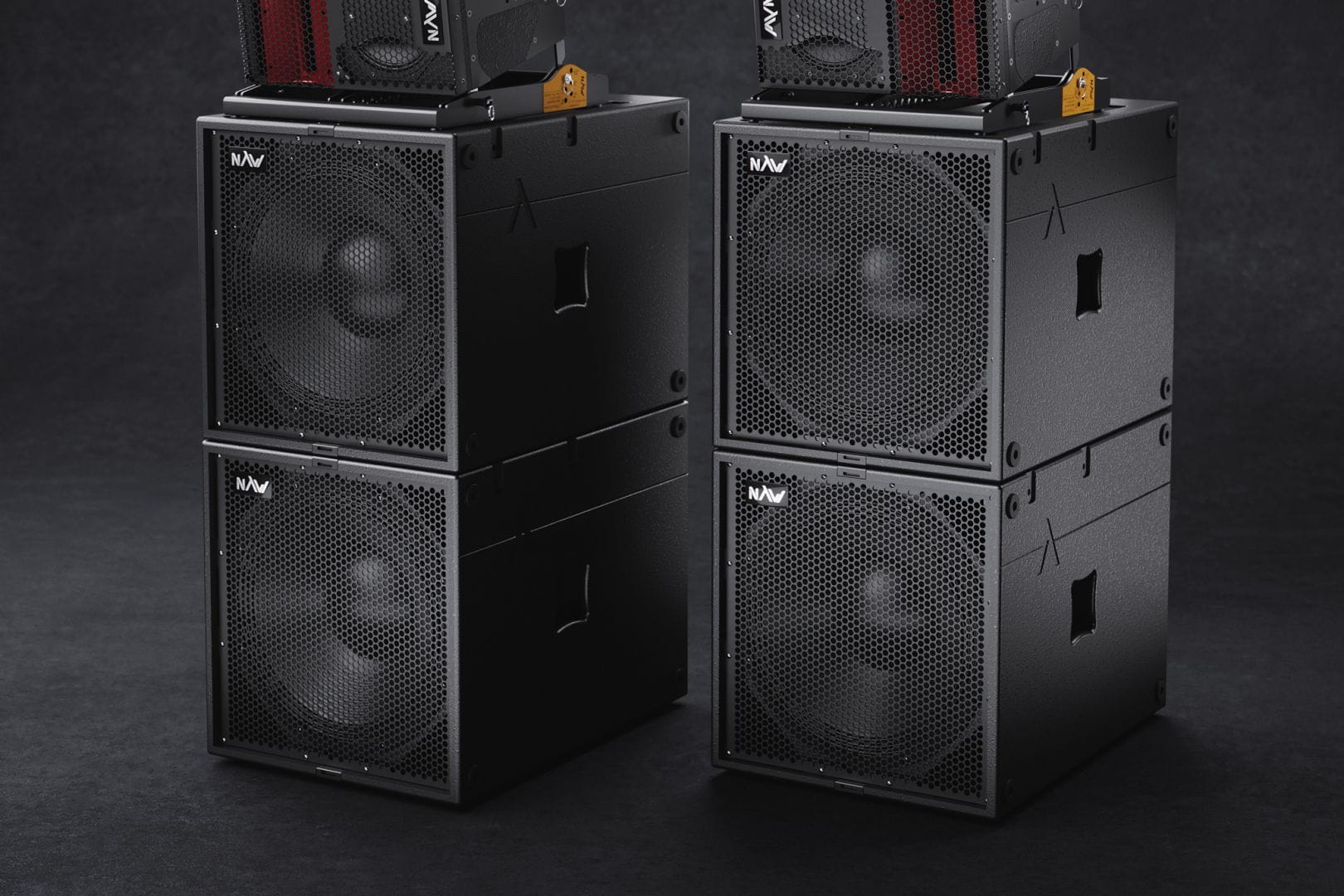

- Two MBR118 passive basses
- Wiring throughout - Neutrik Speakon (2.5mm2) speaker cables and Powercon current cables

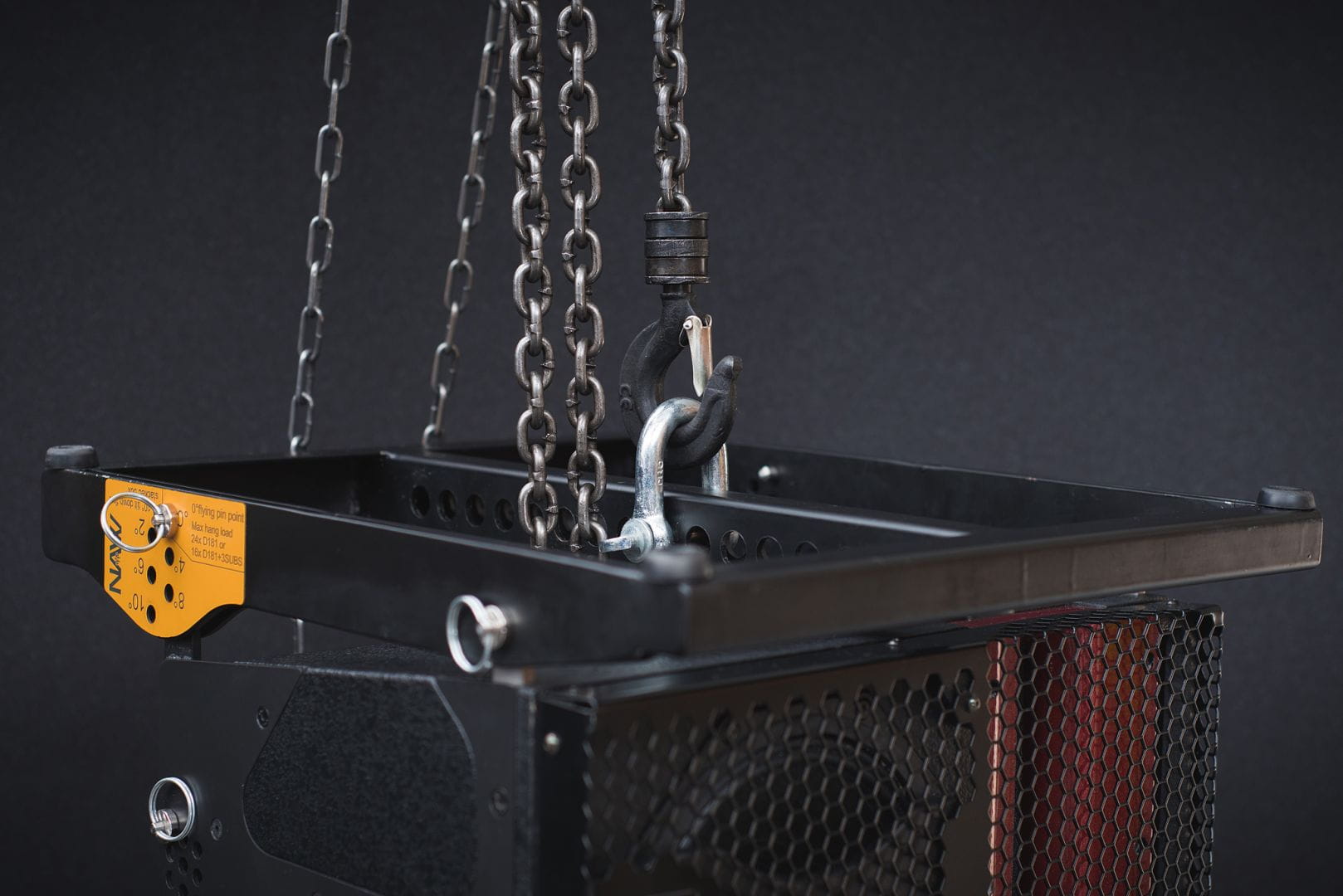

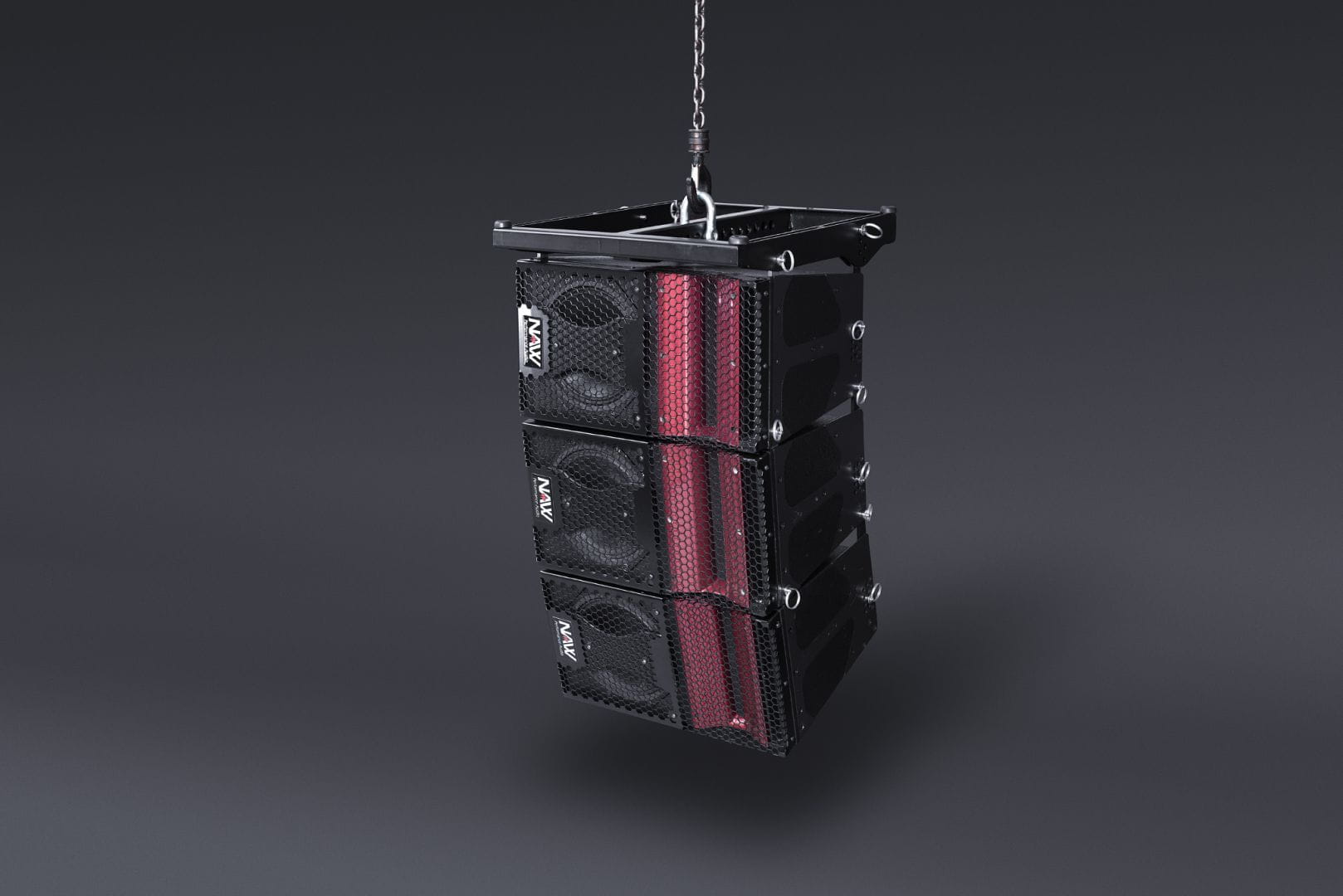

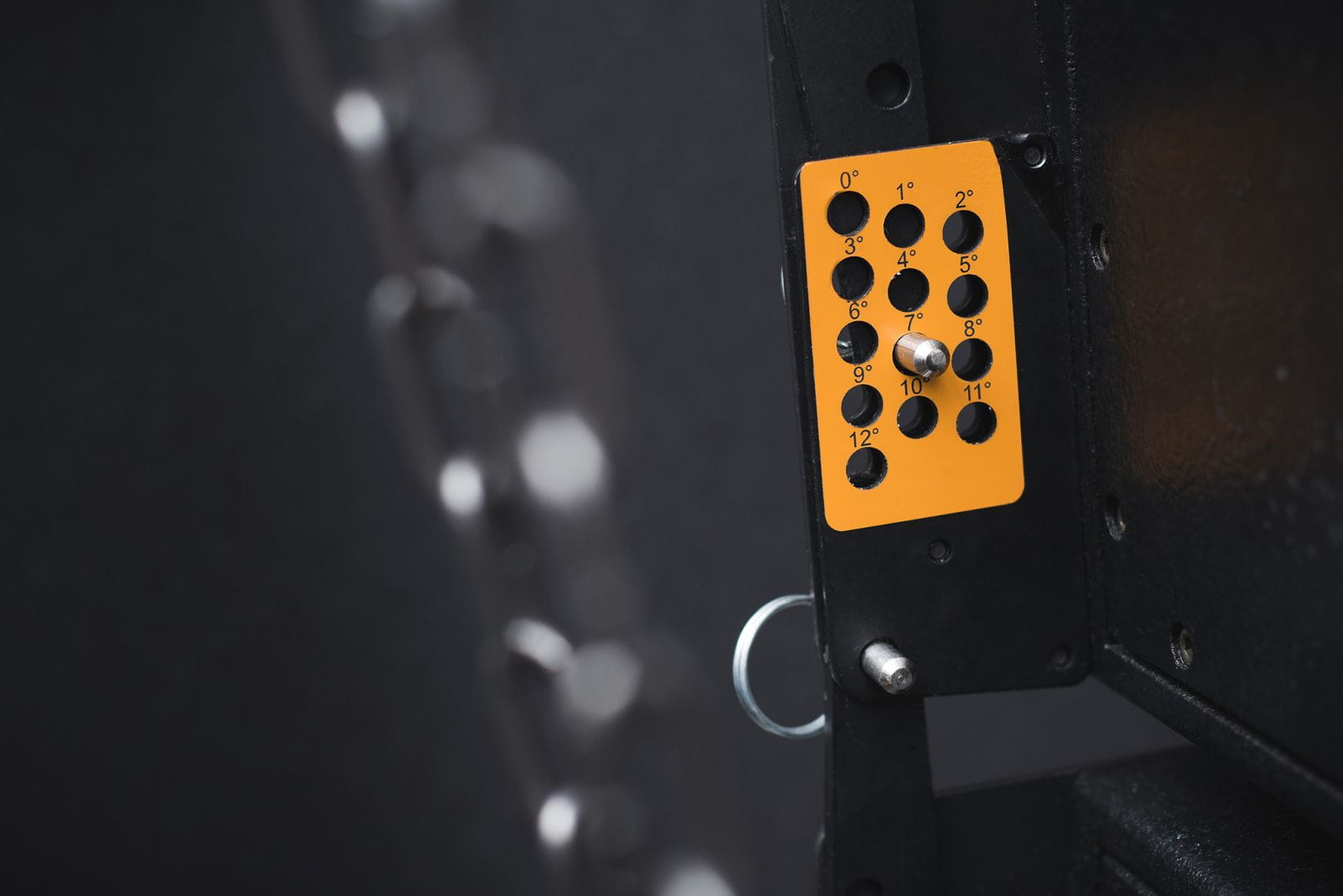

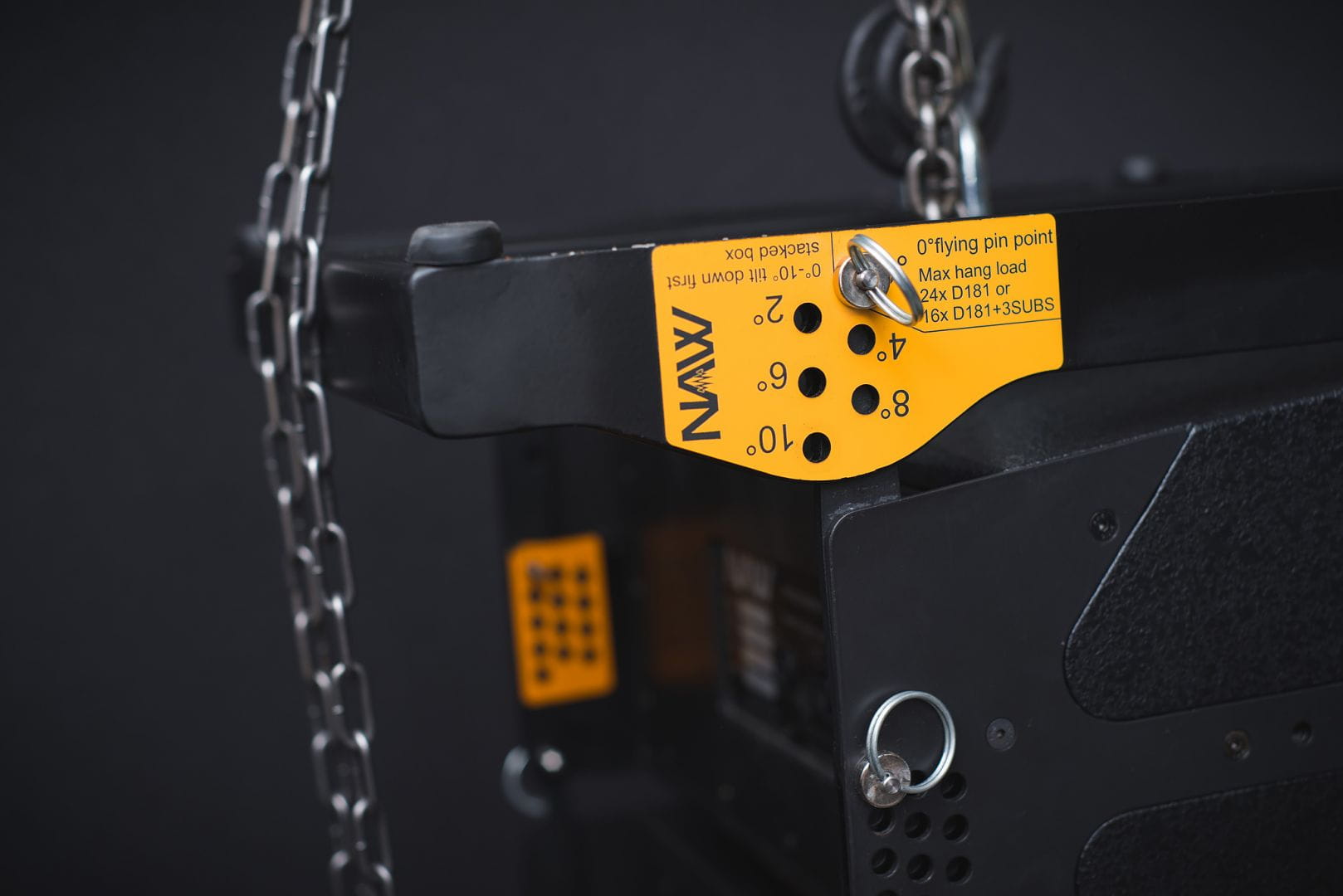

- Two D181 frames for hanging and placing linear modules.
- a set of ball and magnetic pins
- MBR118 hard Cordura covers with company logo
- Skateboards that can be attached to the front of MBR basses - perfect for transport

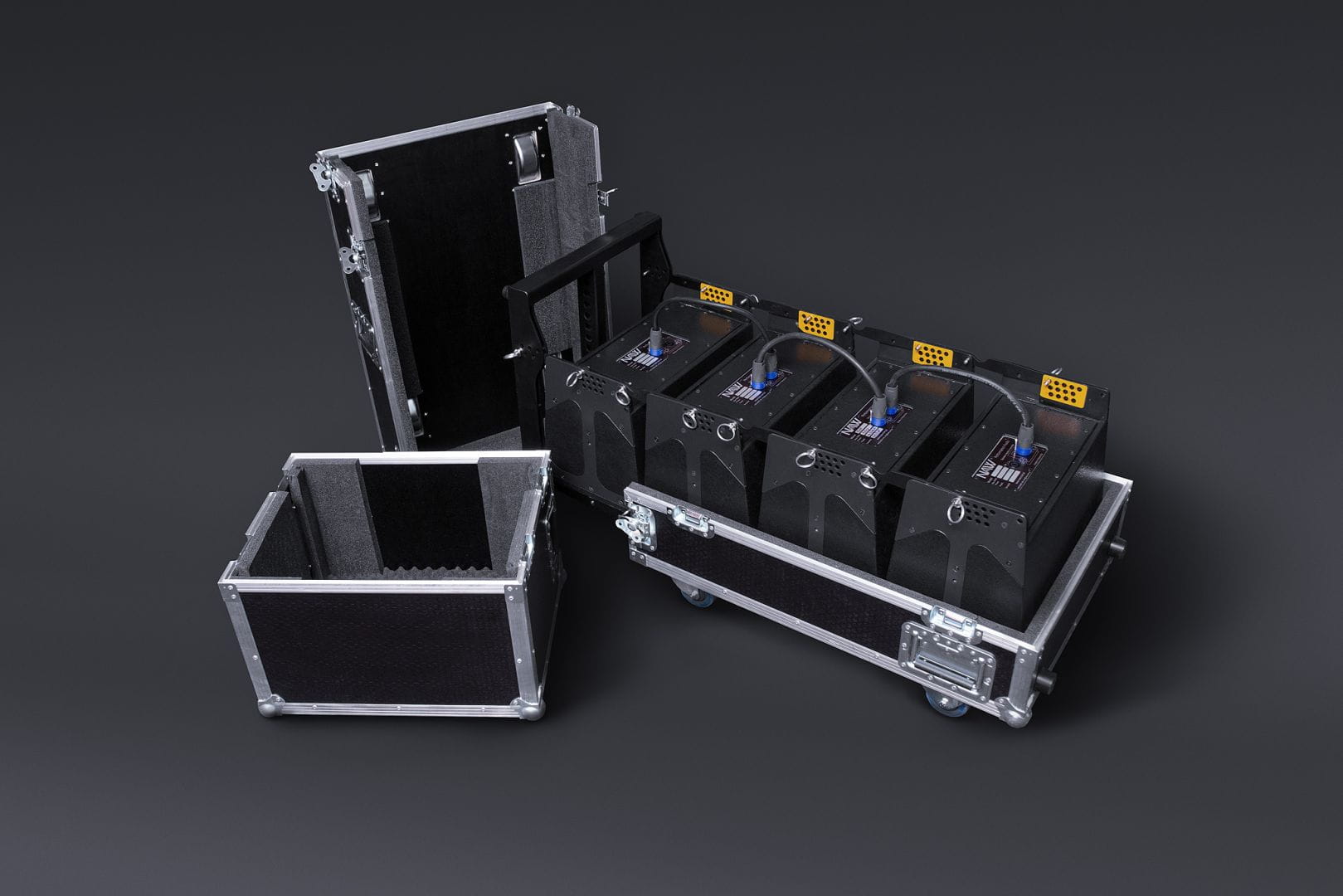

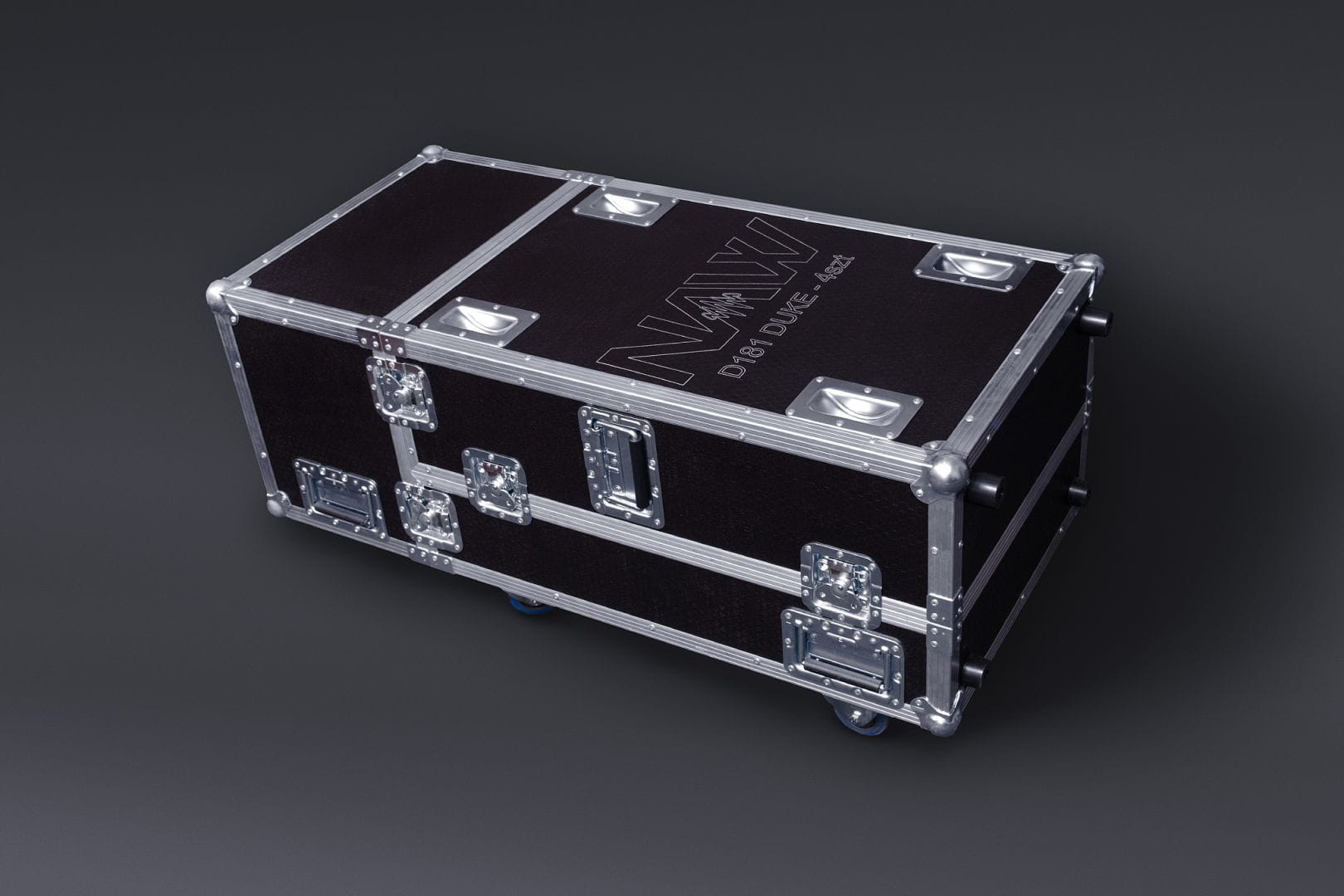

- Two transport boxes for 4 D181 modules
OPTIONAL:
- adapter for placing up to 4 D181 modules on a stand*
SYSTEM TECHNICAL INFORMATION:
- Power amplifiers : 2 x 800W (4 pcs per side) + 5000W RMS 4 bass MBR118
- Max System SPL @1m: 130dB one side of the 4-line array, 133dB one LA3c bass**
- D181 16Ohm module parameters:
- Power of 1 pc (nominal AES): 200W one pc
- Drivers: Neodymium B&C 8"/2"LF + 2x1"/1.7"HF in linear waveguide
- Frequency response (-3dB): 70Hz - 18kHz
- Efficiency (1W/1m): 97dB
- Dimensions: 250h x 420w x 300d
- Weight: 14kg
- MBR118 bass parameters:
- Power (nominal AES): 1200W@8Ohm
- Speaker: B&C 18"/4" with neodymium magnet and high Xmax
- Frequency response (-3dB): 33Hz - 115Hz
- Efficiency (1W/1m/halfspace): 97dB/103dB
- Dimensions: 540h x 515w x 720d
- Weight: 44kg
3-YEAR WARRANTY.
NAW provides a 3-year warranty on the entire sound system and ensures the fastest possible technical support in the event of a failure and post-warranty service.
* We guarantee the durability of adapters and mechanical components manufactured by NAW for its systems. We do not guarantee the stability or safety of stands from third-party manufacturers – please consult the stand's instruction manual for information on its load capacity and the maximum safe height to which the sound system can be raised.
** The Max SPL parameter (in dB@1m) is determined by the acoustic efficiency of the system components and the power of the built-in amplifiers expressed in watts. It may differ from the Max SPL given on the specification sheets of individual components, which assume the maximum power of the amplifiers.
