DUKE MID 6XD181 2XLA3C 2XMBR118 up to 1000 people
Opis
PRODUCT DESCRIPTION
The smallest set in the mobile group, based on Duke D181 linear modules. Enormous capabilities in just a few components. Suitable for events of up to 1,000 people, it can be easily expanded to even larger outdoor venues.
As with smaller VMS systems, we've integrated the power amplifier into two LA3c (MBR118) basses, but this time, the sound is managed by a DSP. This solution offers a selection of filters and protections appropriate for a line array, as well as advanced control options and sound quality without compromising ergonomics, portability, or ease of use.
The system is designed for bands, DJs, and sound companies providing both small and large events. In the configuration shown, it delivers excellent sound in large venues (including acoustically challenging ones) and small outdoor venues up to 25 meters, and is fully scalable, meaning extensive expansion options. Within a single system, we can add one D181 module per side, which, when suspended, will provide full-band coverage up to 30 meters. Combining two sets allows for the suspension of up to eight D181 line array modules per side and the use of eight MBR118 bass modules. This arrangement provides concert-quality sound up to 50 meters from the stage. The DSP processors built into the basses can be interconnected via Ethernet and remotely controlled from the mixer.
The kit price includes a 10% discount on component prices.

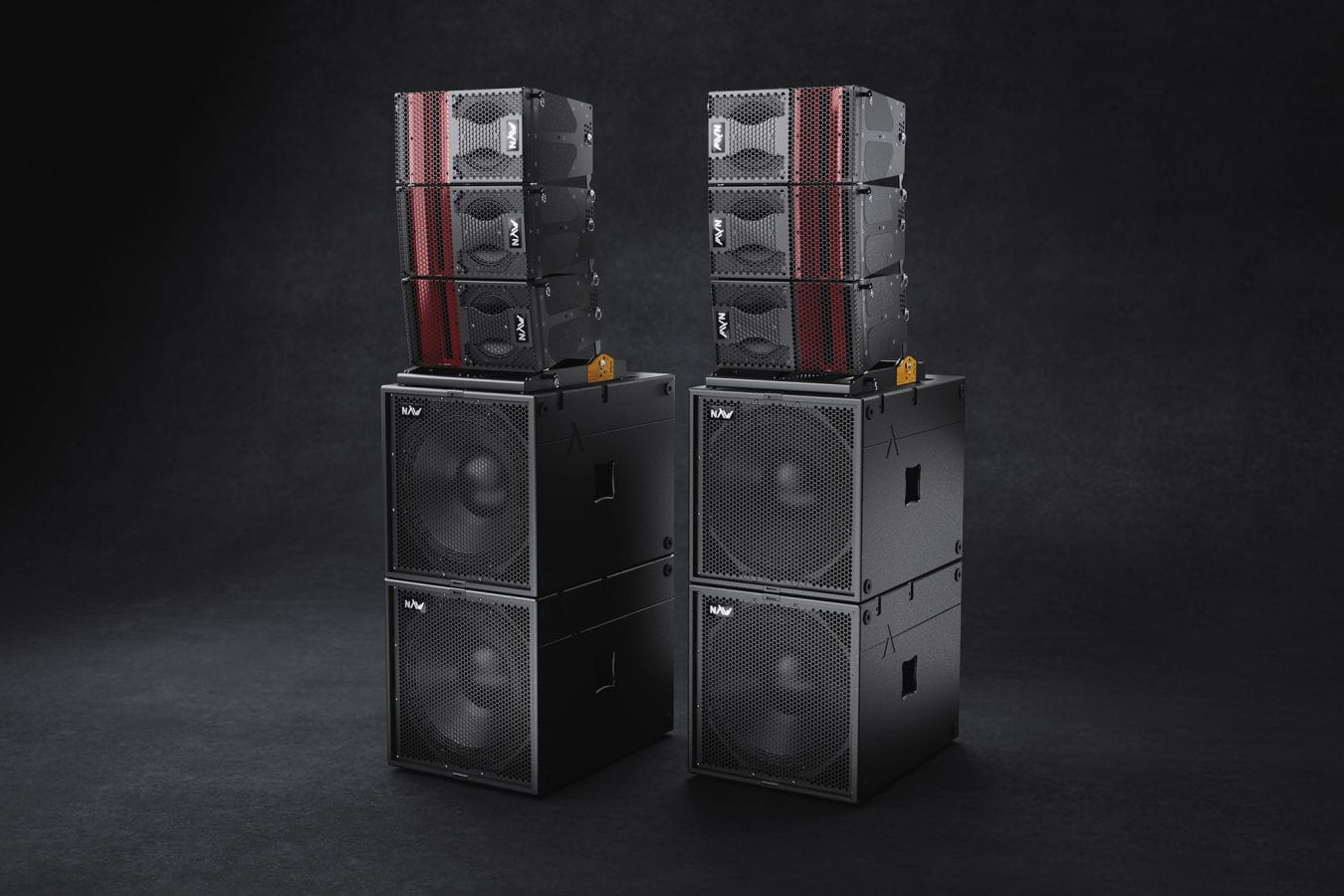

THE SET INCLUDES:

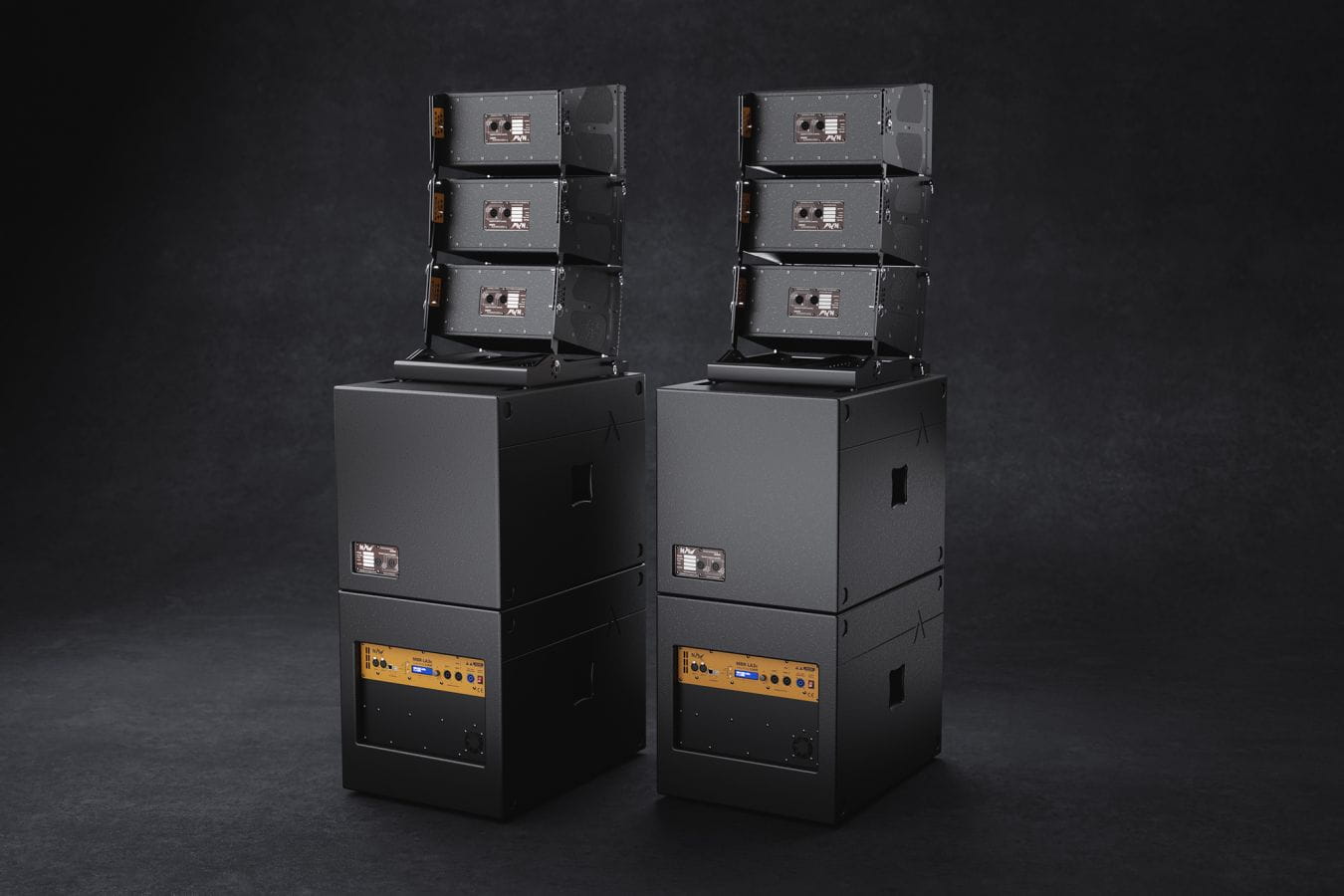

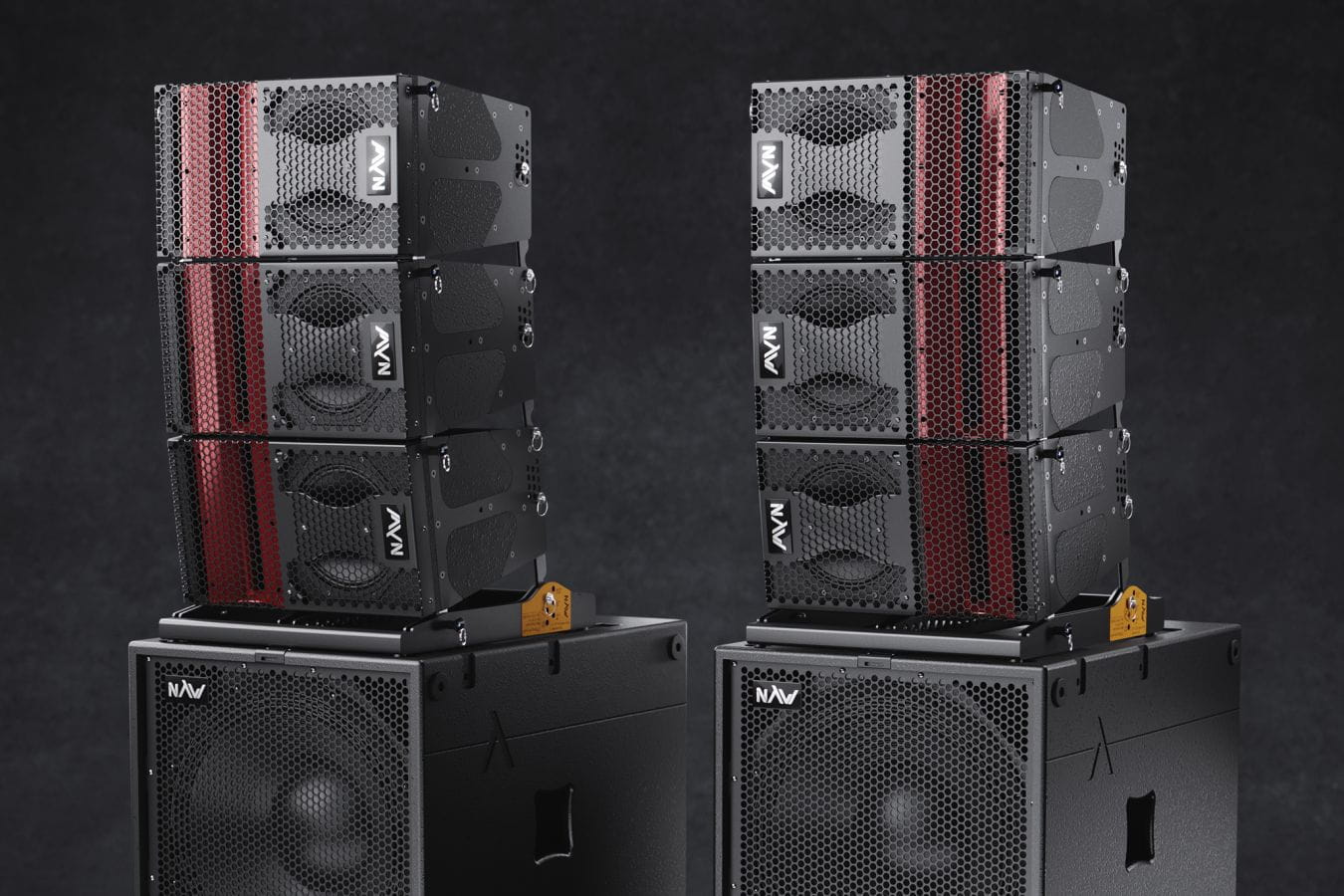

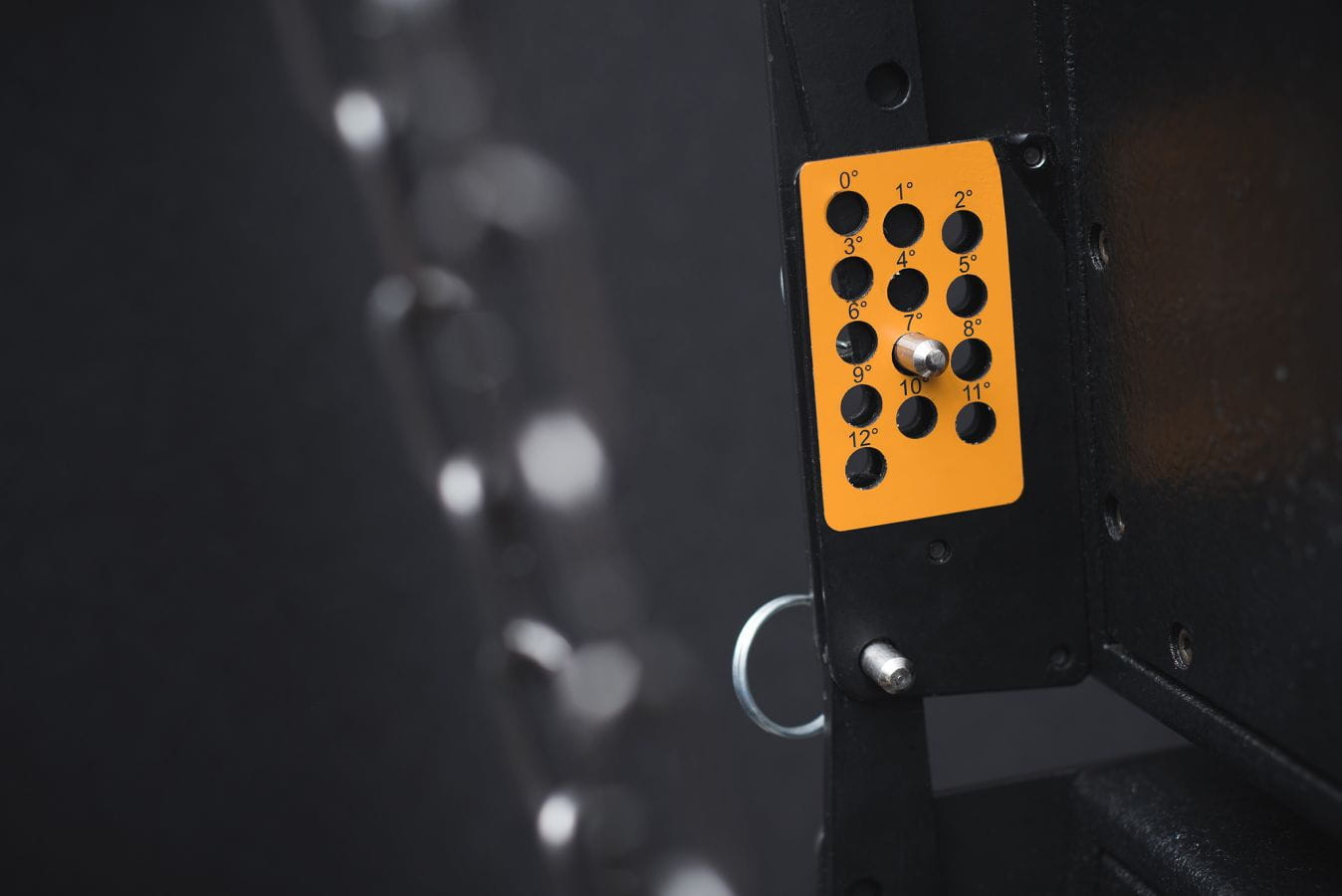

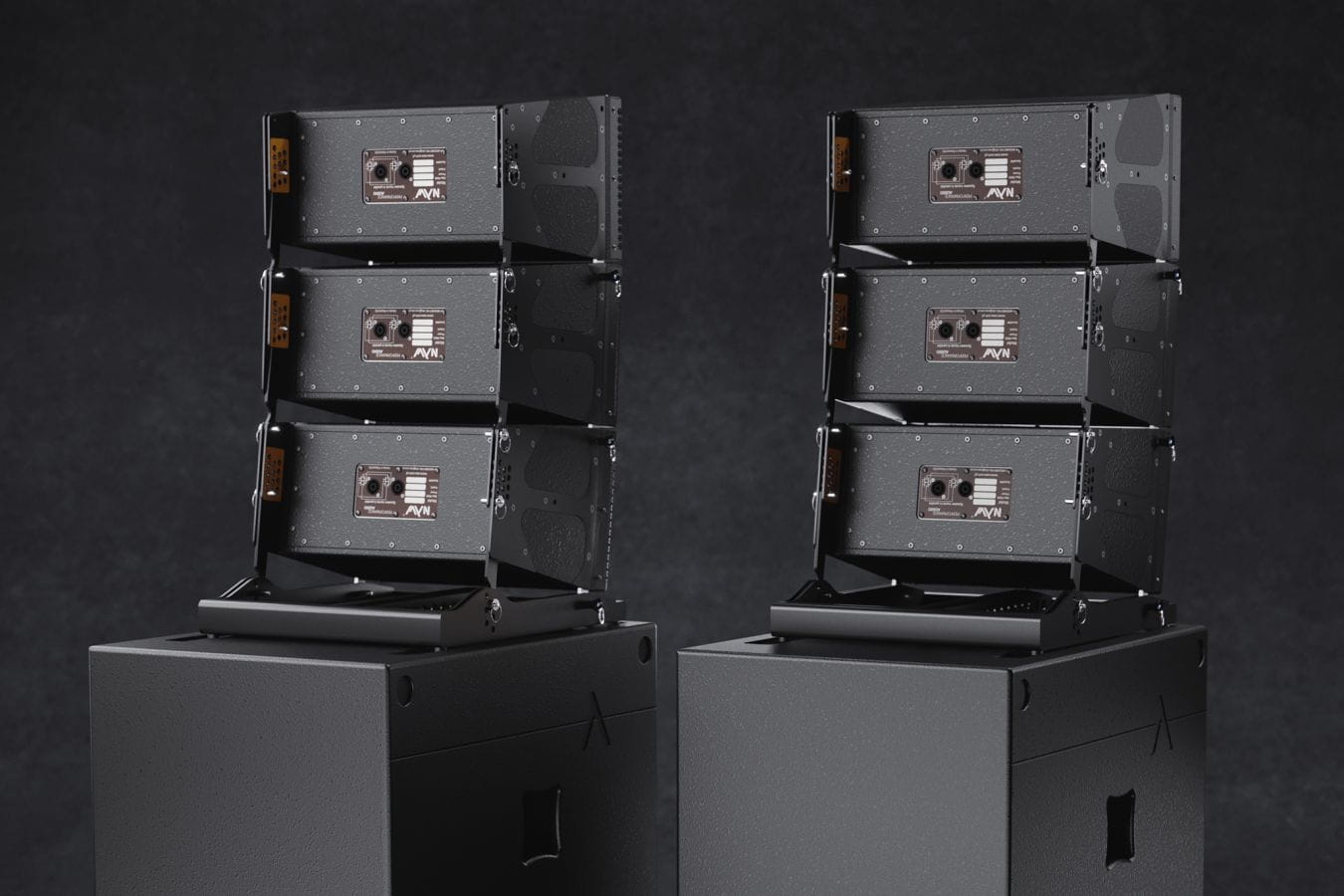

- Six Duke D181 biamp line array modules (drive and DSP processing are handled by electronics built into the active bass). Two additional modules can be added for hanging (4 total per side). Pre-configured operating angles with a stand mount. User-configurable settings.

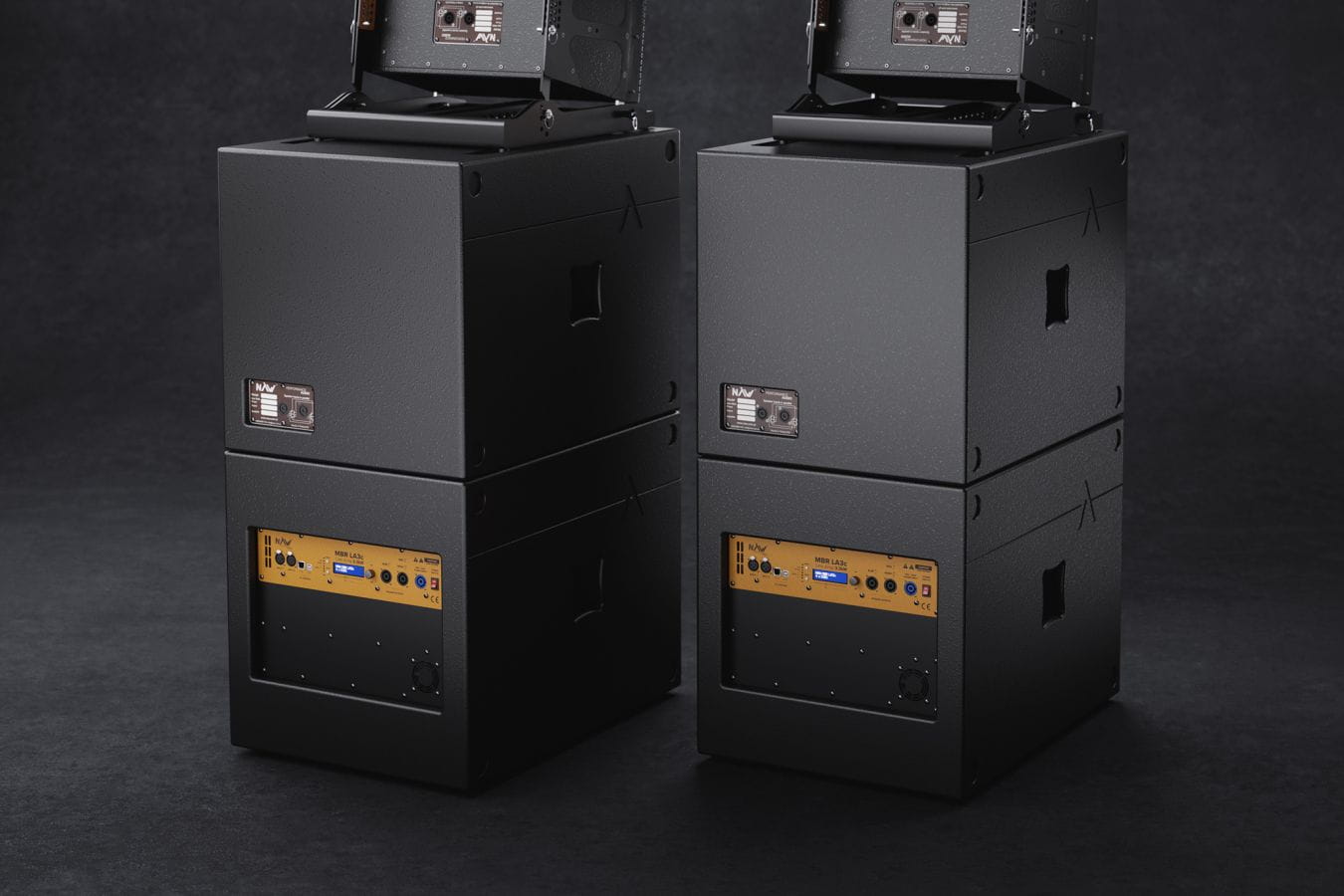

- Two LA3c active basses with an integrated 4100W 3-channel amplifier and built-in control processor. Selectable DSP, EQ, and delay settings, and remote control via Ethernet.

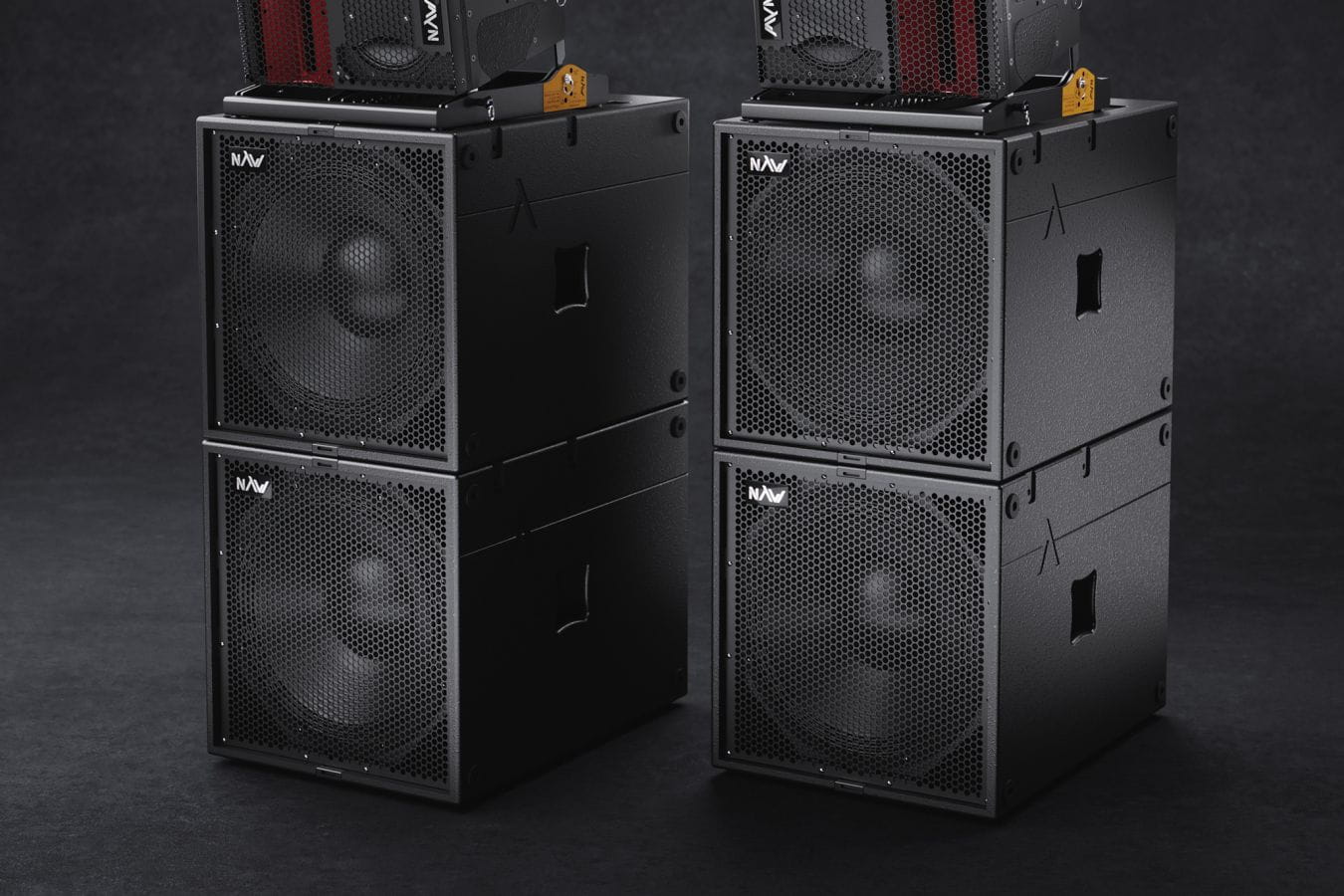

- Two MBR118 passive basses
- Wiring throughout - Neutrik Speakon (2.5mm2) speaker cables and Powercon current cables

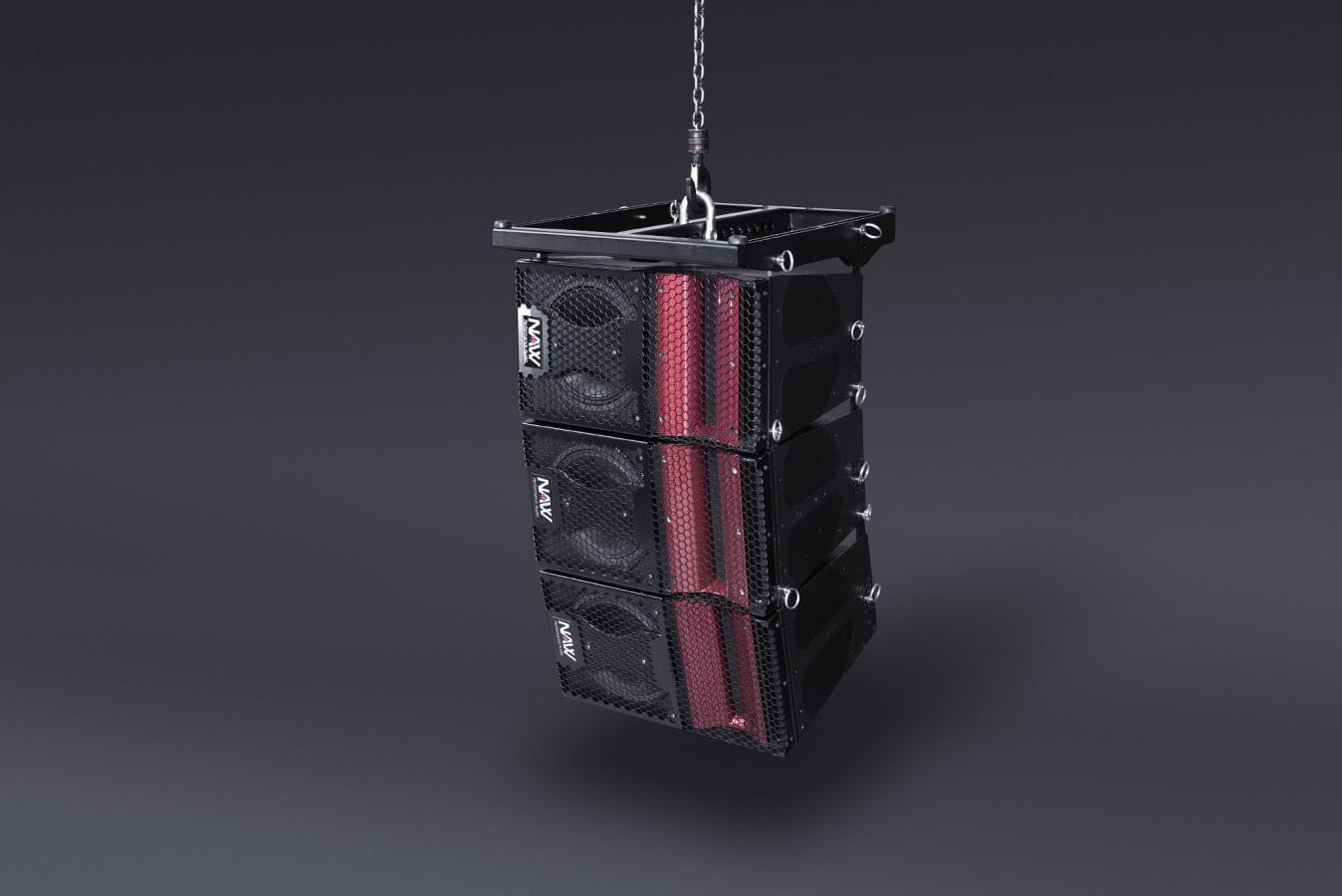

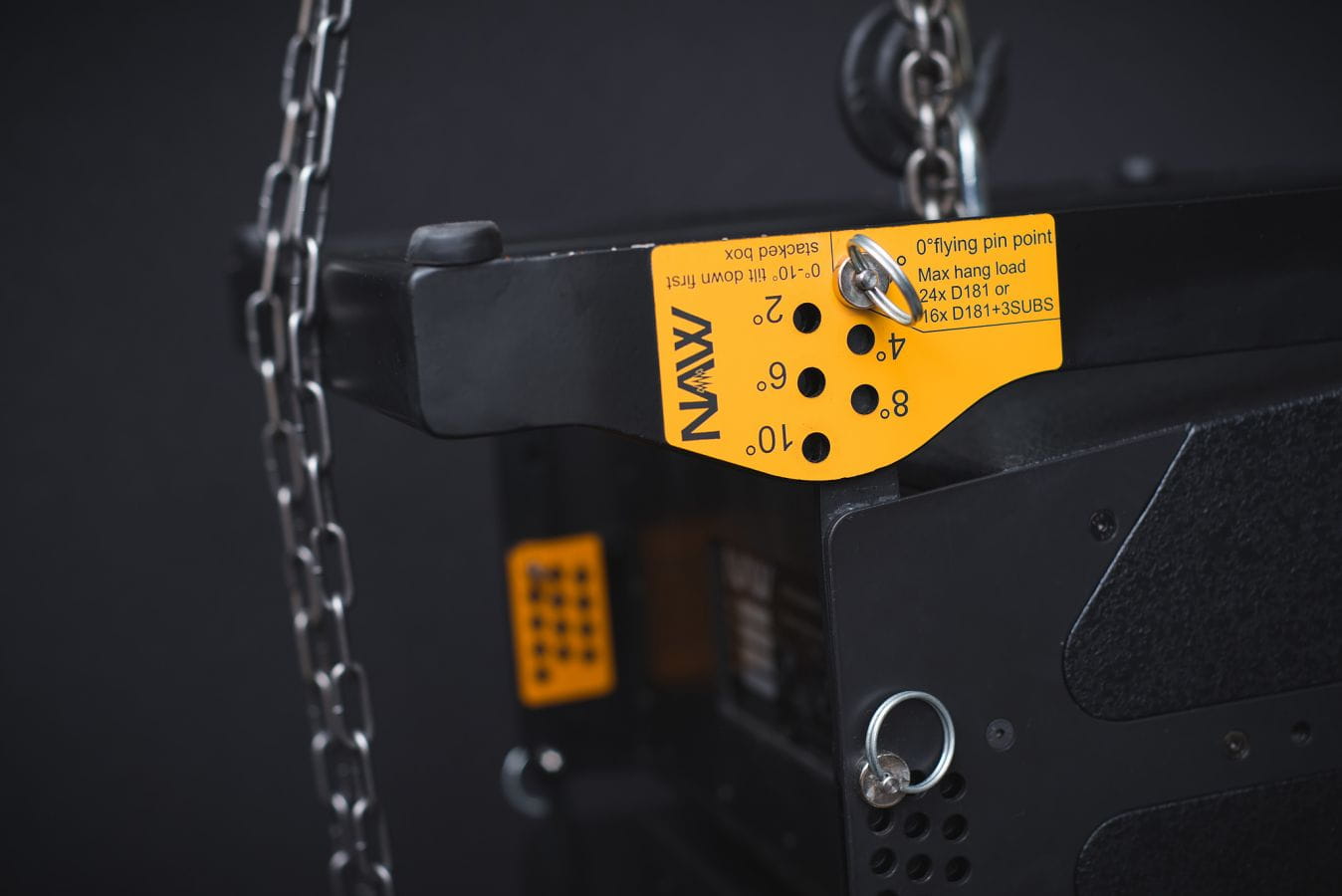

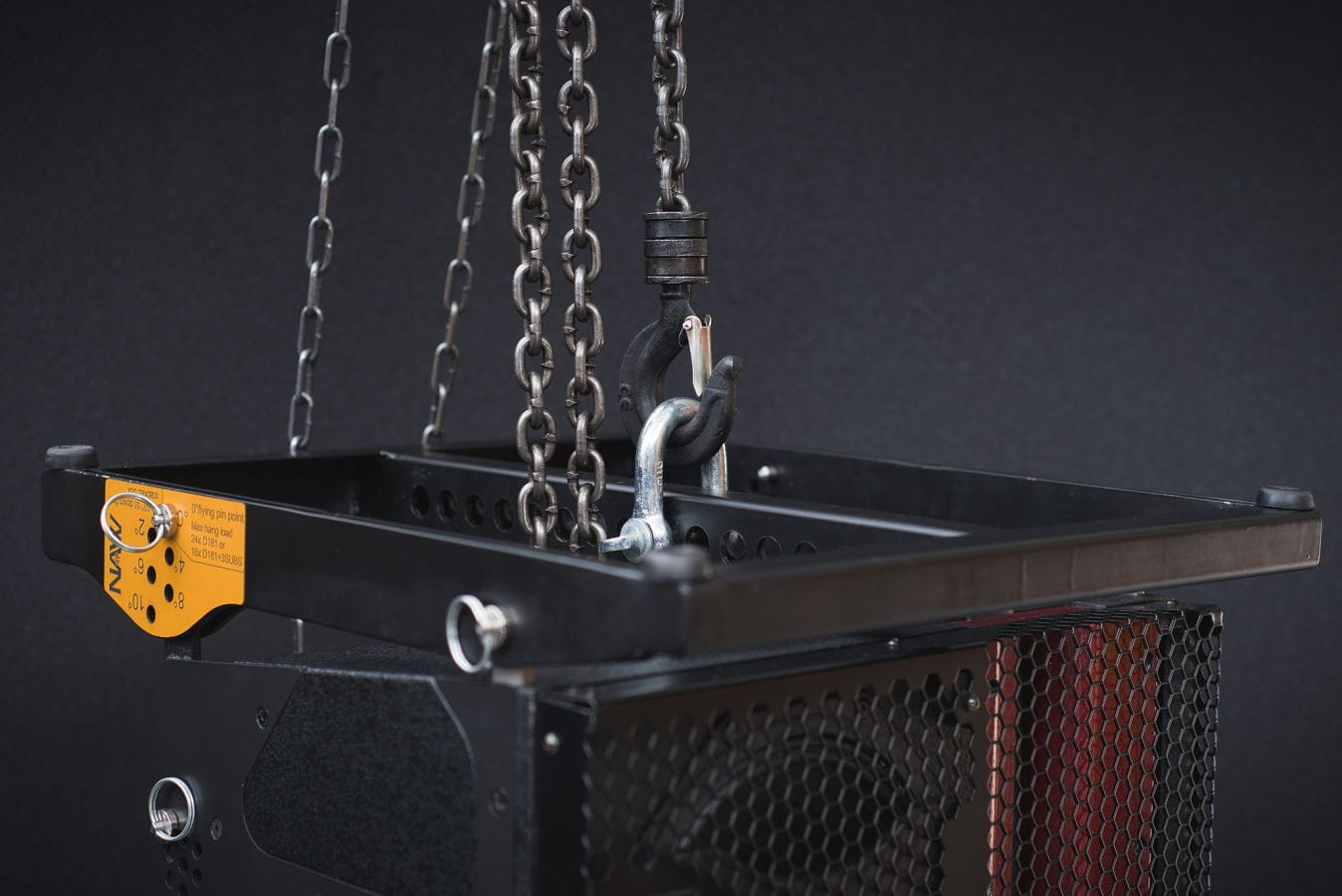

- Two D181 frames for placing linear modules on a tripod or for hanging them, to choose from
OPTIONAL:

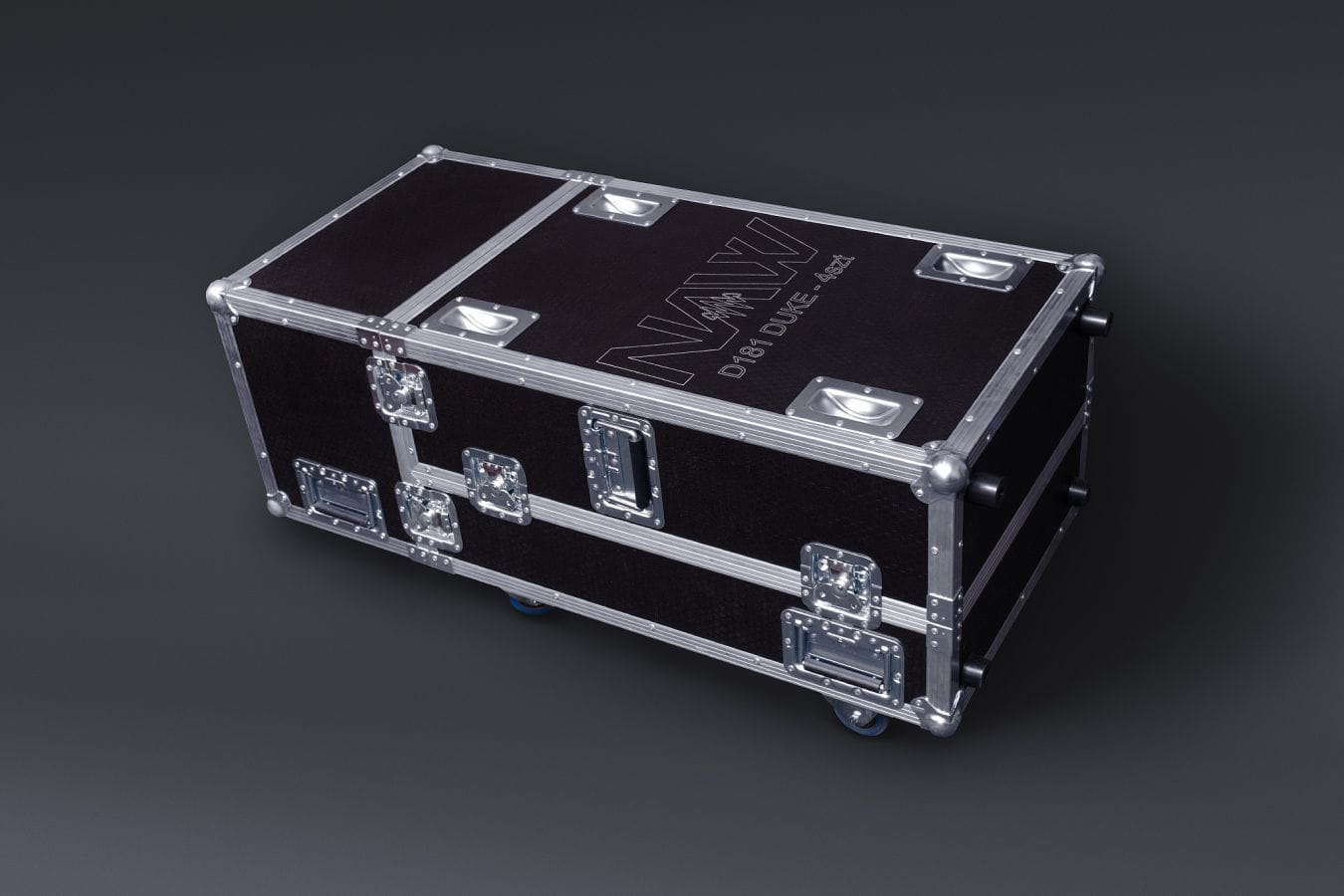

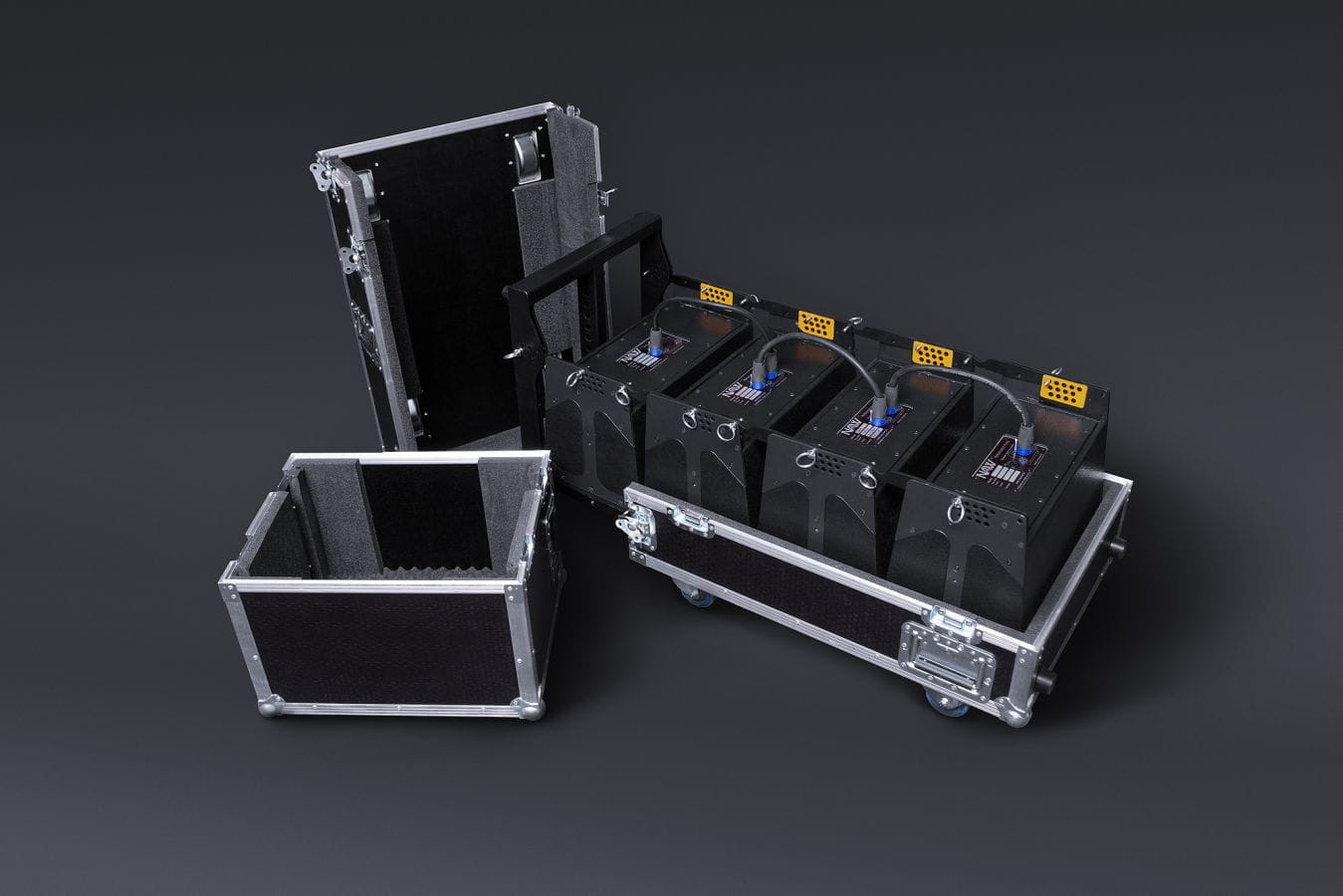

- Hard Cordura covers with company logo
- Skateboards that can be attached to the front of MBR basses
- Stands and adapter for mounting up to 4 D181 modules
SYSTEM TECHNICAL INFORMATION:
- System power : 2x600W RMS satellites (3 pcs and 2x800W 4 pcs per side) + 5000W RMS 4 bass MBR118
- Max SPL System:
- D181 16Ohm module parameters:
- Power 1pcs (nominal): 200W@16Ohm AES
- Drivers: Neodymium B&C 8"/2"LF + 2x1"/1.7"HF in linear waveguide
- Frequency response (-3dB): 70Hz - 18kHz
- Efficiency (1W/1m): 97dB
- Dimensions: 250h x 420w x 300d
- Weight: 14kg
- MBR118 bass parameters:
- Power (nominal): 1200W@8Ohm
- Speaker: B&C 18"/4" with neodymium magnet and high Xmax
- Frequency response (-3dB): 33Hz - 115Hz
- Efficiency (1W/1m/halfspace): 97dB/103dB
- Dimensions: 540h x 515w x 720d
- Weight: 44kg
3-YEAR WARRANTY.
NAW provides a 3-year warranty on the entire sound system and ensures the fastest possible technical support in the event of a failure and post-warranty service.
