DUKE STARTER 4XD181 2XLA3C up to 500 people
Opis
PRODUCT DESCRIPTION

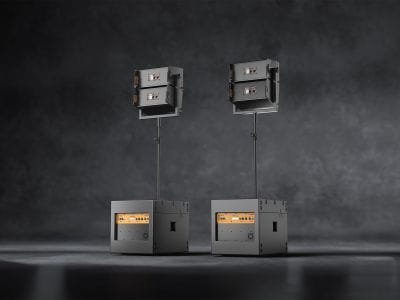

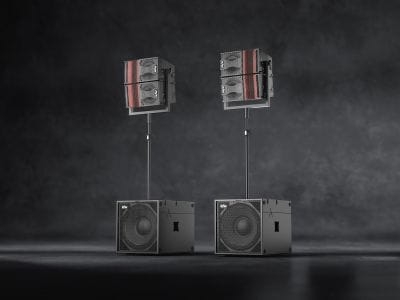

The smallest mobile system in the range, featuring two Duke D181 line array modules per side and two LA3c active basses. If you're thinking about expanding your line array in the future, this is the perfect starting point.
The system is designed for bands, DJs, and sound companies providing sound for both small and large events. In the configuration shown, it delivers excellent sound in halls (including acoustically challenging ones) and small outdoor venues up to 20 meters away. It is fully scalable, allowing for expansion to DUKE MID and MAX systems . The DSP processors built into the basses can be interconnected via Ethernet and controlled remotely from the mixer.
Similar to the smaller VMS systems, the power amplifier is integrated into two LA3c basses (three-channel active MBR118s), but this time the sound is managed by a DSP. This solution offers a selection of filters and protections suitable for a line array system, as well as advanced control options and sound quality without compromising ergonomics, portability, or ease of use.
THE SET INCLUDES:
- 4 Duke D181 linear modules right and left (two 110 degrees and two 80 degrees of horizontal directivity)
- Two LA3c active basses with an integrated 4100W 3-channel amplifier and built-in control processor. Selectable DSP, EQ, and delay settings, and remote control via Ethernet.
- Wiring throughout - Neutrik Speakon (2.5mm2) speaker cables and Powercon current cables
- Two D181 frames for placing linear modules on a tripod
- a set of ball and magnetic pins
- MBR118 hard Cordura covers with company logo
- Skateboards that can be attached to the front of MBR basses - perfect for transport
- Two small transport boxes for 2 D181 modules
SYSTEM TECHNICAL INFORMATION:
- Power amplifiers : 2 x 400W (2 pcs D181 per side) + 3000W RMS 2 bass MBR118 LA3c
- Max System SPL @1m: 132dB one side of the 2 line array modules, 140dB one LA3c bass*
- D181 16Ohm module parameters:
- Power of 1 pc (nominal AES): 200W one pc
- Drivers: Neodymium B&C 8"/2"LF + 2x1"/1.7"HF in linear waveguide
- Frequency response (-3dB): 70Hz - 18kHz
- Efficiency (1W/1m): 97dB
- Dimensions: 250h x 420w x 300d
- Weight: 14kg
- LA3c bass parameters:
- Amplifier power: SUB 2500W@4Ohm, MID: 800W@4Ohm, HI: 800W@4Ohm
- Speaker: B&C 18"/4" with neodymium magnet and high Xmax with a nominal power of 1200W AES
- Frequency response (-3dB): 33Hz - 115Hz
- Maximum SPL (peakCF4 12dB): 140dB*
- Dimensions: 540h x 515w x 720d
- Weight: 44kg
*max SPL (peak) at 1m, in halfspace conditions (SUB) using 12dB pink noise Crest factor
3-YEAR WARRANTY.
NAW provides a 3-year warranty on the entire sound system and ensures the fastest possible technical support in the event of a failure and post-warranty service.
