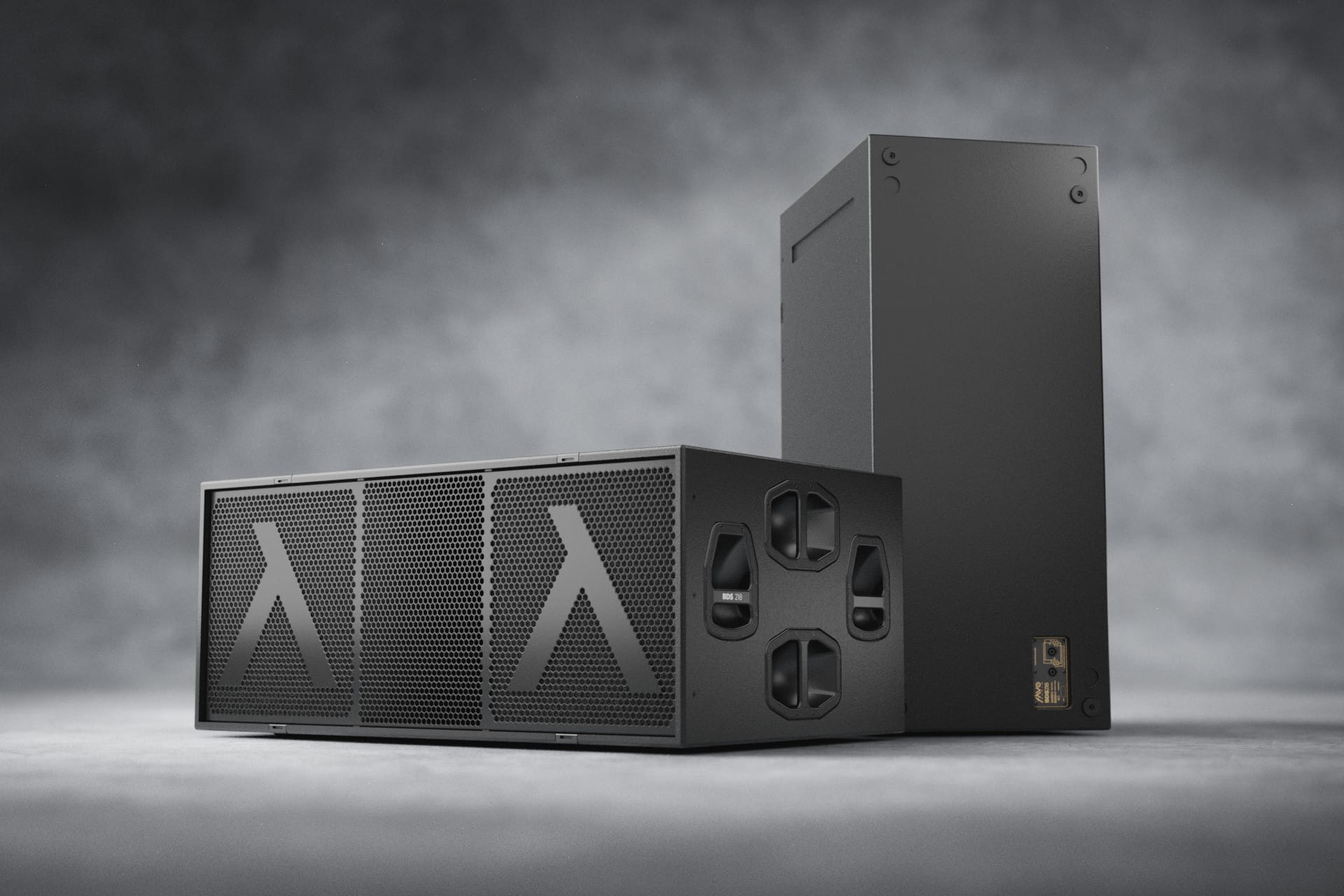

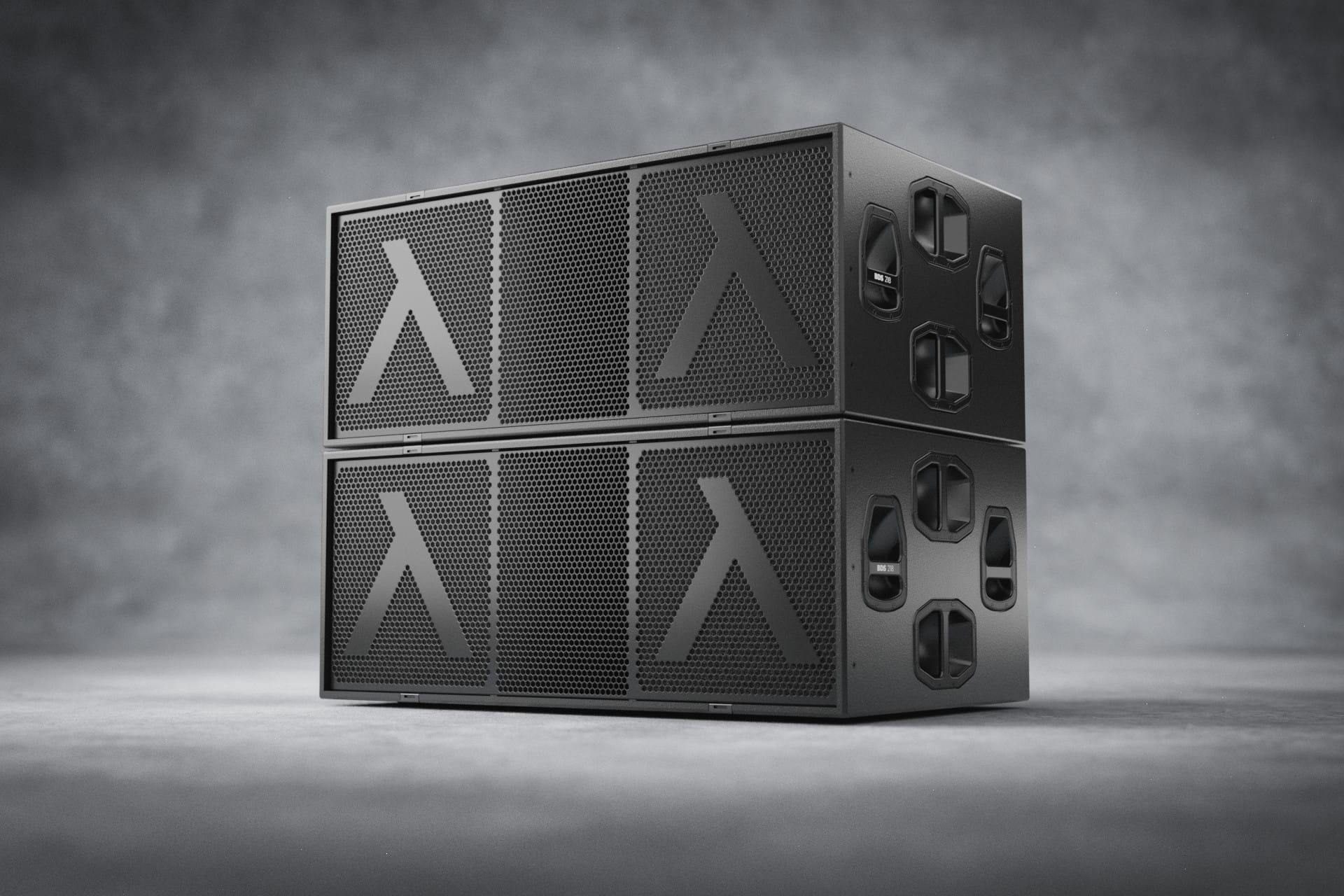

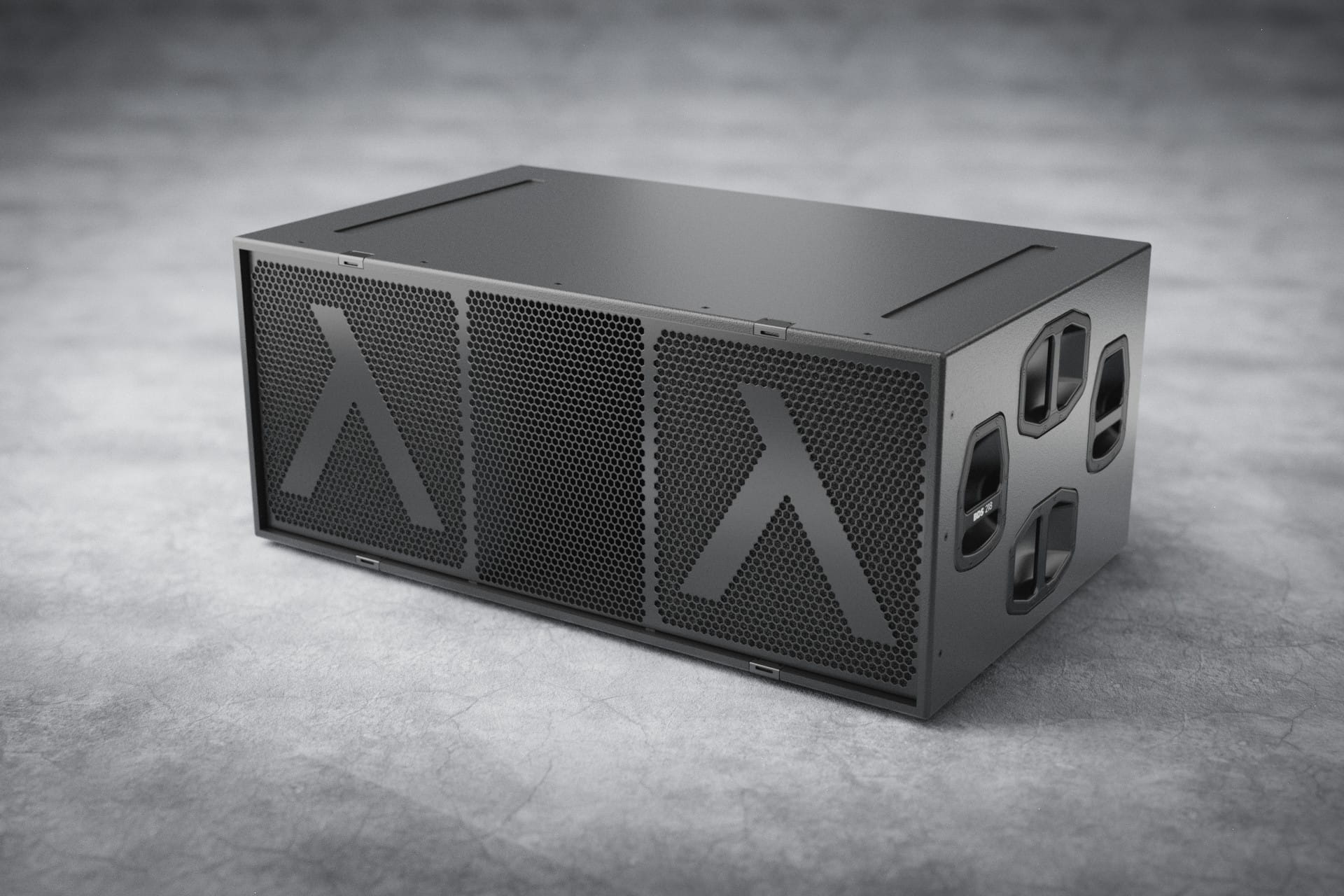

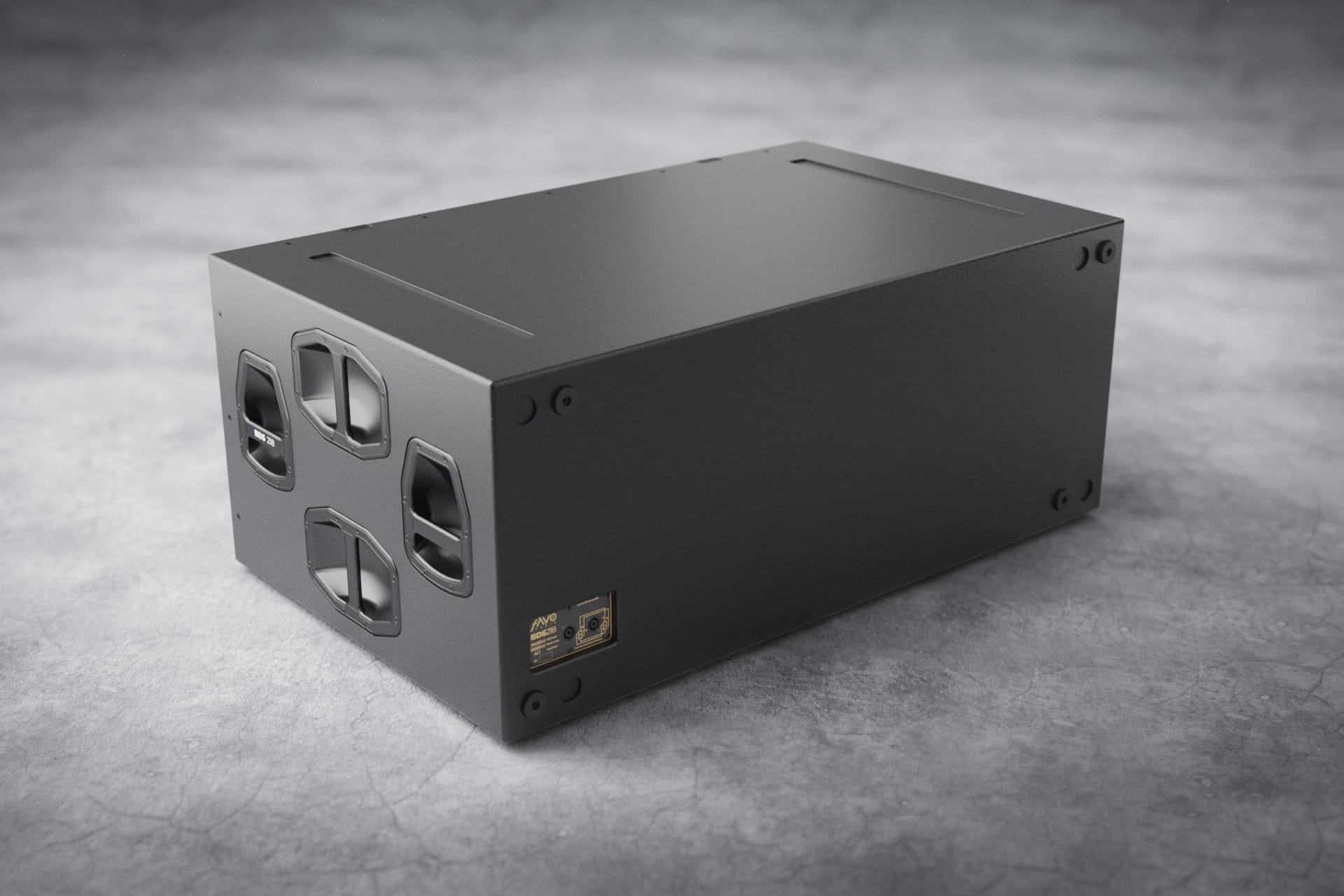

FAVO BDS218 passive subwoofer

PRODUCT DESCRIPTION:

Soon...

BASIC TECHNICAL DATA:

• Covered with LINE-X material
• Laminar port bass reflex

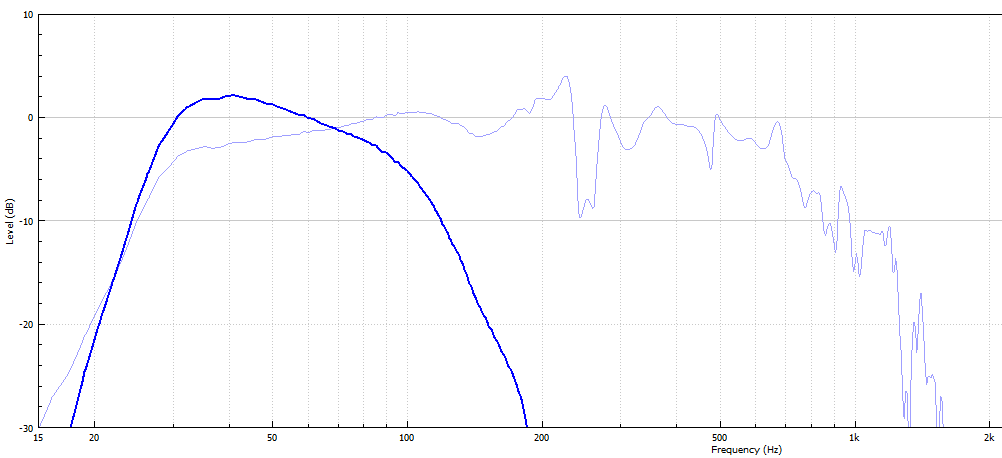

• Reproducible frequency range:
  • 30Hz - 100Hz (-3dB)*
  • 24Hz - 130Hz (-10dB)*
• Recommended RMS amplifier power: 3000-5000W @4Ohm
• Nominal speaker power: 2x1700W AES
• SPL sensitivity (1W/1m/halfspace): 100dB/106dB
• Maximum SPL (peak): 143dB**
• Driver: 18" woofer, 4.5" long voice coil, Xmax 15mm, neodymium magnet
• Impedance: 4Ω, or 2x4Ω on request

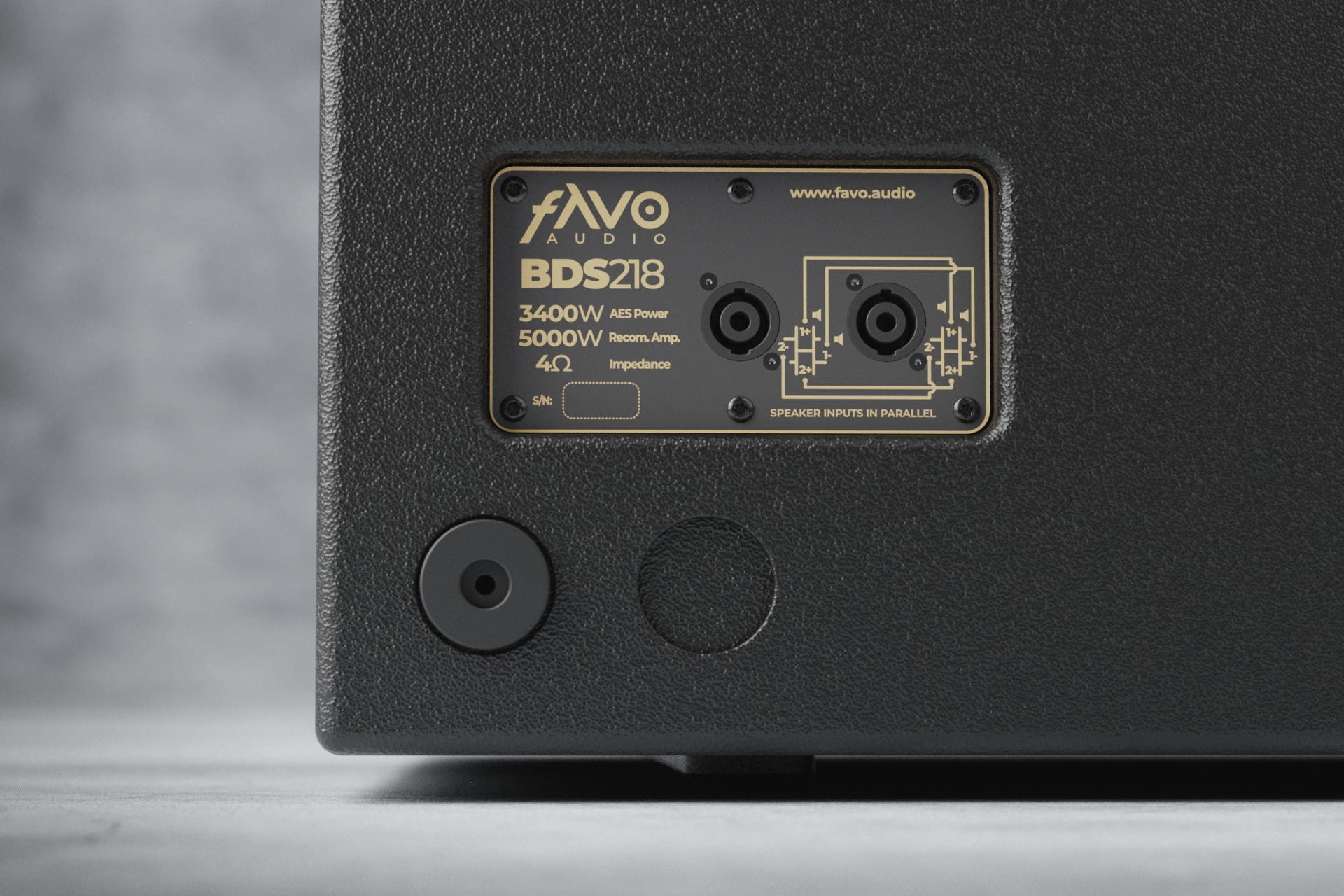

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 540mm x 1300mm x 790mm
• Weight: 91kg

* measurements made in half-space conditions using a dedicated preset

**max SPL (peak) at 1m using 6dB Crest factor pink noise via dedicated DSP with product-specific setting.
