FAVO MBR115 passive subwoofer

PRODUCT DESCRIPTION:

NAW MBR115 - the smallest box from the MBR series - Modular Bass Reflex based on a 15" neodymium speaker with a 4" voice coil

The MBR series is designed around the concept of multi-purpose modules. Using the same packages, we can create structures that achieve different acoustic goals, which is particularly important for bass. Properly positioning the bass modules allows for things like controlling the directivity of the low-frequency beam, maintaining a high SPL over distance, and properly blending low frequencies within the sound field. MBR modules are also incredibly easy and physically adaptable to create cardioid and end-fired structures, which can significantly reduce the sound pressure behind the bass. A compact subwoofer with excellent performance.

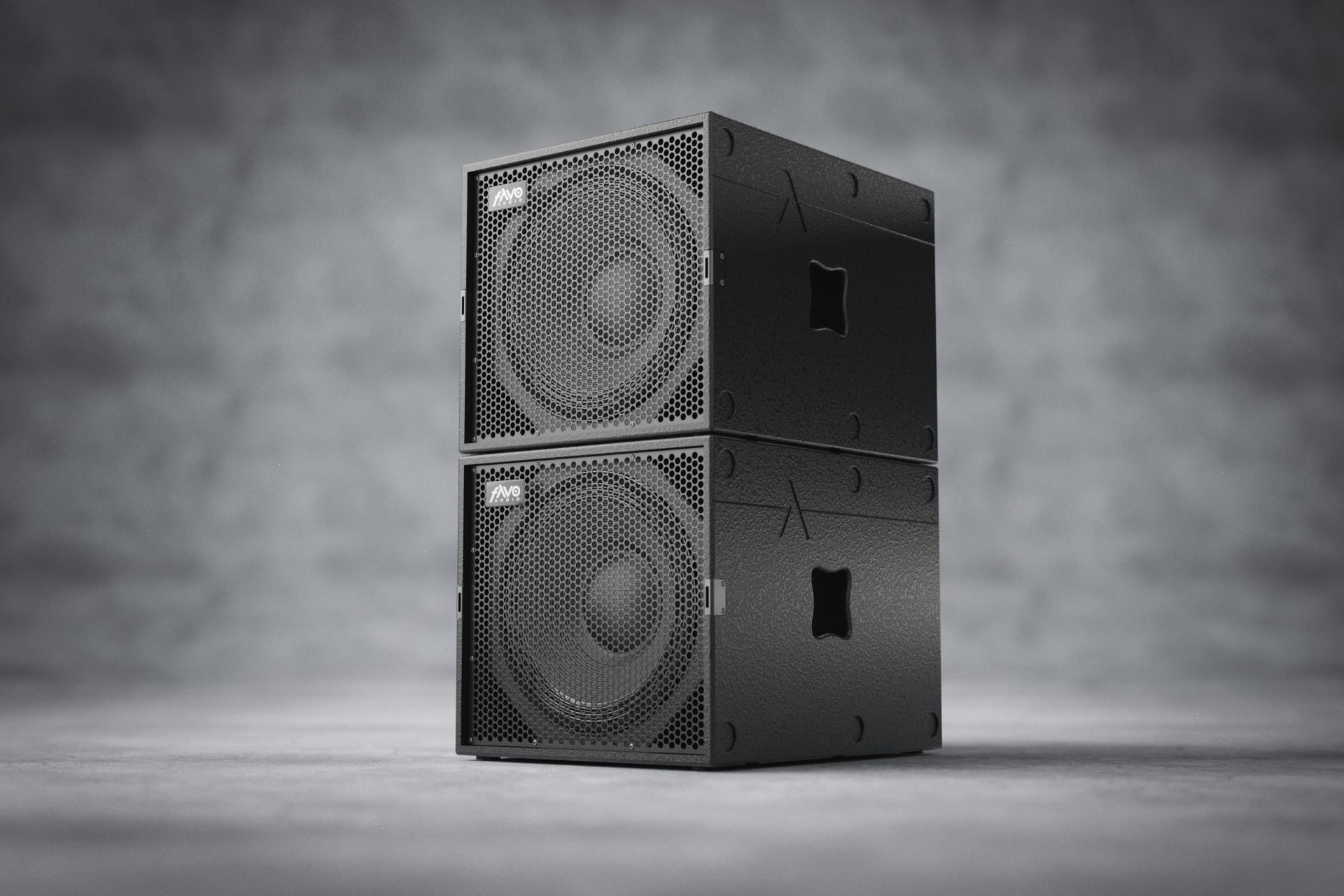

As you can see in the photos, this little thing, which easily fits into a small passenger car, can work on its own as the basis of a sound system for a DJ or band, but when combined with other MBR115s, it can also create quite large outdoor installations.

Optionally, we provide:

• MBR115a2.1DSP version with built-in sound processor controlled from the panel and via Ethernet
• transport skateboards with 80mm wheels,

BASIC TECHNICAL DATA:

15" speaker in a rectangular bass-reflex enclosure made of waterproof Baltic plywood and finished with black textured paint. Carrying handles are located at the center of gravity for ease of transport and handling. M8 mounting points are used to connect the subwoofers to each other and to VSC series satellites. A tripod flange with M20 thread (traditional available upon request). State-of-the-art speakers are used, assembled to our specifications at the B&C Speakers factory in Italy.

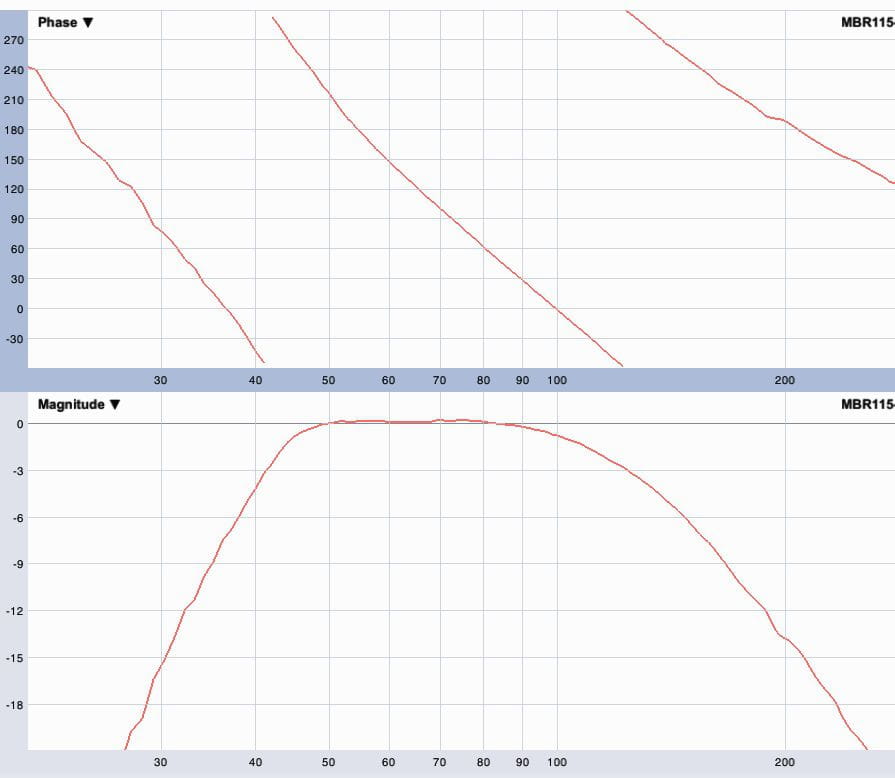

• Reproducible frequency range:
  • 41Hz - 130Hz (-3dB)*
  • 35Hz - 180Hz (-10dB)*

^{* measurements made for one module in half-space conditions using 25HzBW@24-120HzL-R@24 filters}

• Recommended frequency range:  35-110Hz (35Hz BW@24dB/oct - 110Hz LR@24dB/oct)
• Recommended RMS amplifier power:  1300 - 2000W
• Nominal speaker power AES/Continuous/Peak:  1000W / 2000W / 4000W
• SPL efficiency (1W/1m/halfspace):  97dB/103dB
• Maximum SPL (peakCF4 12dB):  137dB**
• Directionality:  Omnidirectional or cardioid. Depends on the number of modules in the set***
• Speaker:  15" woofer, 4" voice coil, Xmax 10mm, neodymium magnet
• Impedance:  8Ω

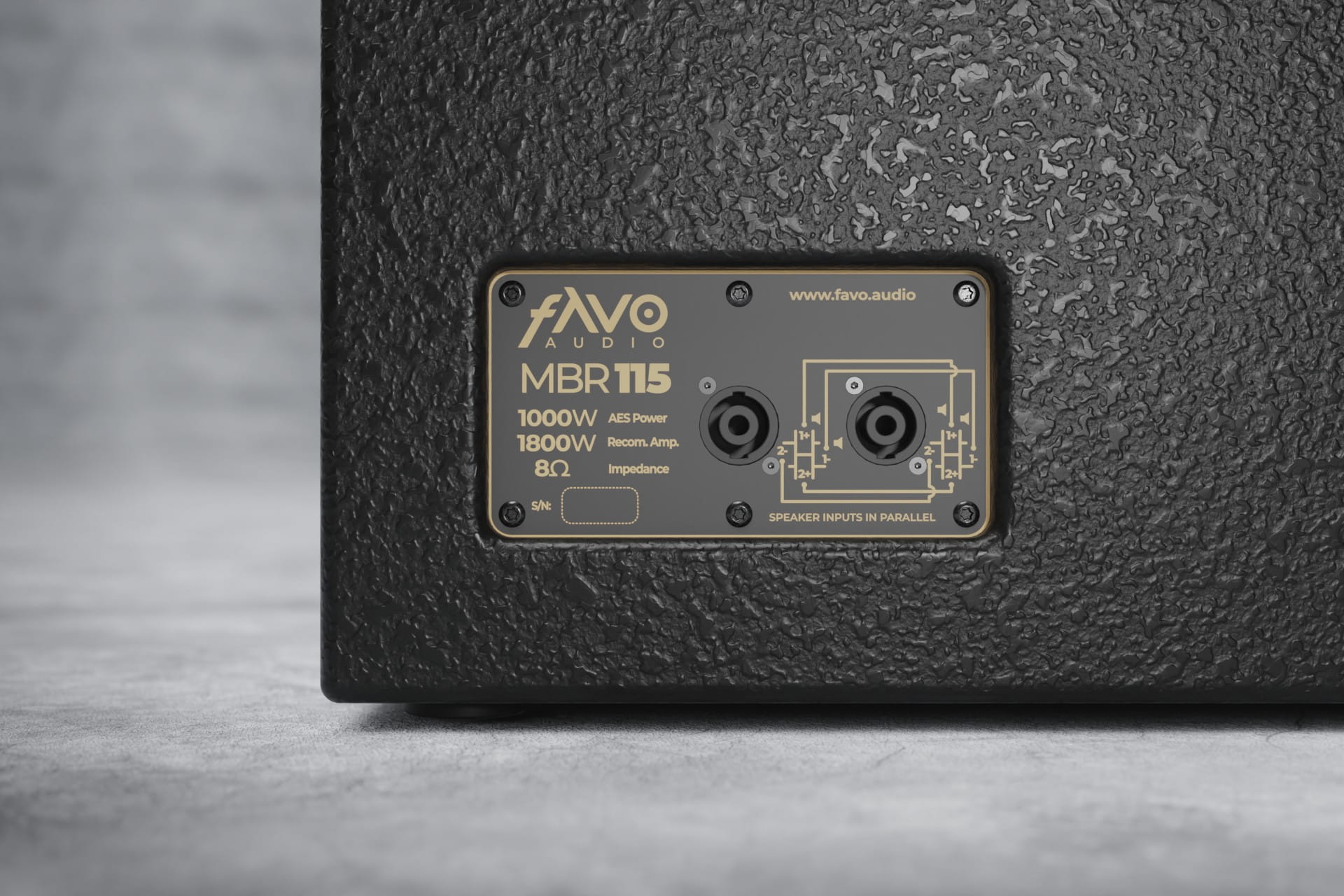

• Connectors:  2x Neutrik NL4MP
• Dimensions (H x W x D):  500mm x 462mm x 620mm
• Weight:  29kg

^{**max SPL (peak) at 1m, in halfspace conditions using 12dB Crest factor pink noise via a dedicated DSP with product-specific settings.}

^{*** with dedicated preset and physical arrangement of modules}
