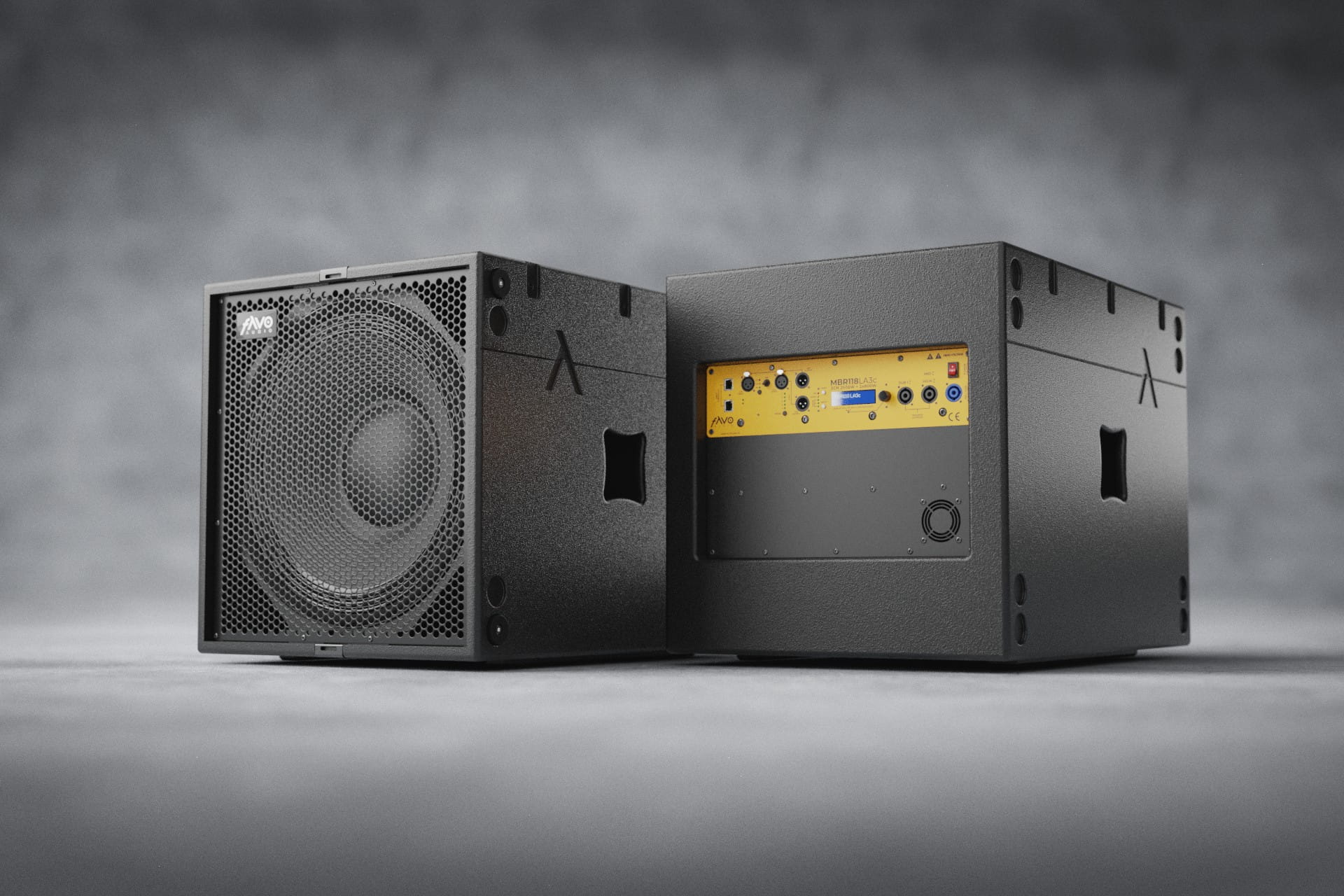

FAVO MBR118 LA3C three-channel active subwoofer with DSP

BASIC TECHNICAL DATA:

An 18-inch speaker in a rectangular bass-reflex enclosure made of waterproof Baltic plywood and finished with black textured paint or Linex polyurethane (LX version). Carrying handles are located at the center of gravity for ease of transport and handling. M8 mounting points are used to connect the subwoofers to each other and to VSC series satellites. A tripod flange with M20 thread is included (traditional available upon request). State-of-the-art speakers are used, assembled to our specifications at the B&C Speakers factory in Italy. A lightweight 3-channel amplifier with a power output of 4100W RMS works with a built-in DSP processor, fully controlling all parameters – both audio filters and limiters. The processor can also be remotely controlled via the Ethernet port and dedicated NAW software, which is available on this website in the support section.

• Reproducible frequency range:
  • 41Hz - 120Hz (-3dB)*
  • 34Hz - 170Hz (-10dB)*

* measurements made in half-space conditions with filters 25HzBW@24-120HzL-R@24

• Recommended frequency range: 35-110Hz (35Hz BW@24dB/oct - 110Hz LR@24dB/oct)
• Built-in amplifier RMS: 2500W@4Ohm + 2x800W@4Ohm
• Key features of the DSP processor:
  • two XLR inputs for the audio track
  • sampling rate 96kHz, input level up to 22dBu,
  • control via Ethernet,
  • compatible with other FAVO processors - grouping possible

• SPL sensitivity (1W/1m/halfspace): 98dB/104dB
• Maximum SPL (peakCF6): 135dB**
• Maximum SPL under long continuous load: 129 dB
• Speaker: 18" woofer, 4" voice coil, Xmax 10mm, neodymium magnet
• Impedance: 8Ω

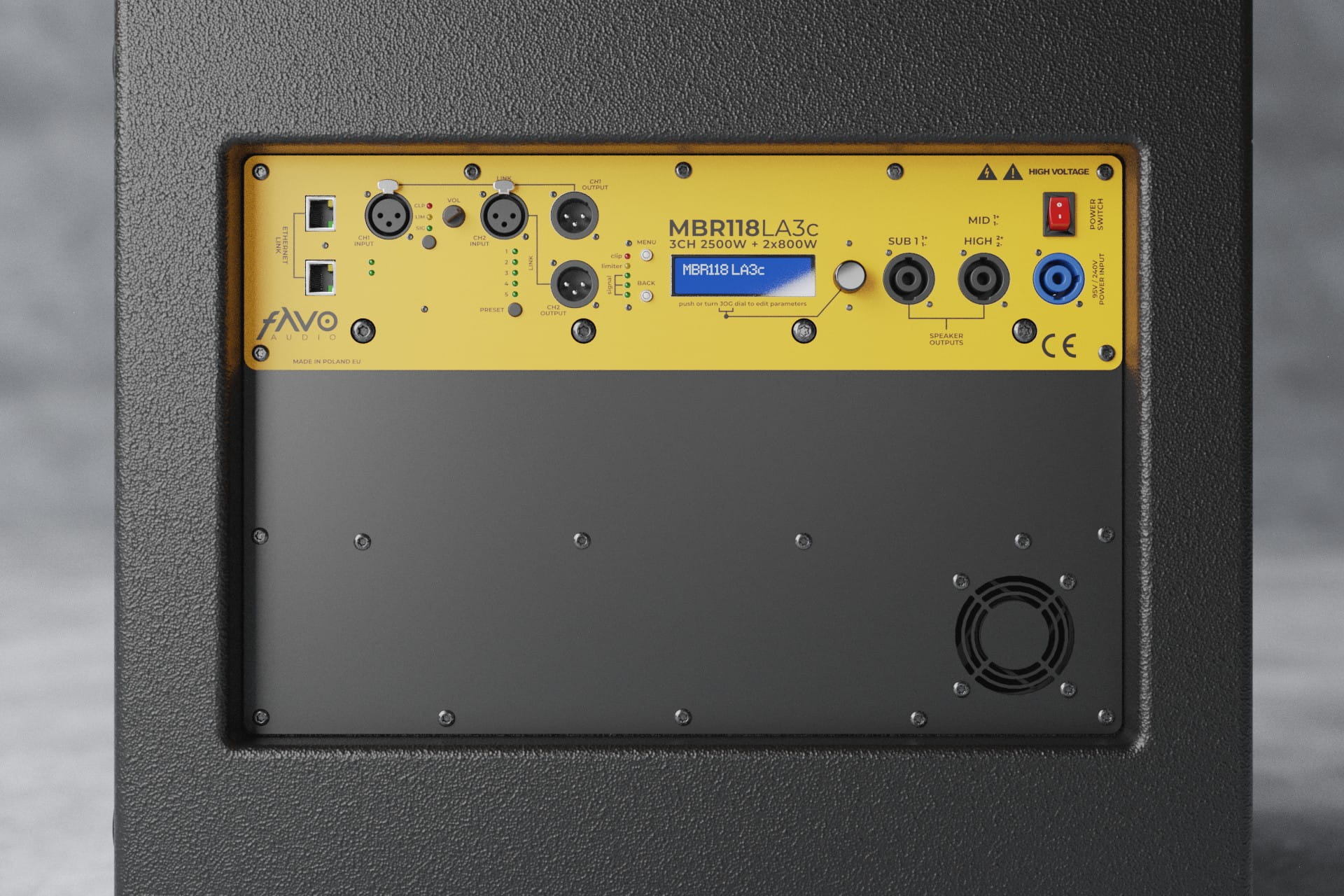

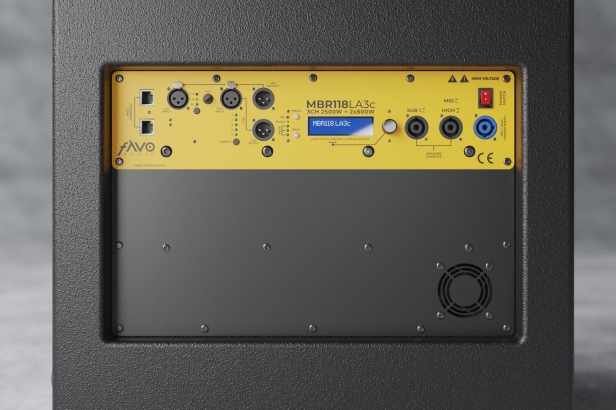

• Connectors: 2 XLR inputs, Speakon outputs for second subwoofer, Speakon output for Bi-Amp module, Ethernet connector, Powercon power input
• Dimensions (H x W x D): 540mm x 515mm x 720mm
• Weight: 42kg

**max SPL (peak) at 1m using 6dB Crest factor pink noise via built-in DSP with product-specific setting.
