FAVO NSP248E MK2 SYSTEM CONTROLLER_DSP PROCESSOR

PRODUCT DESCRIPTION:

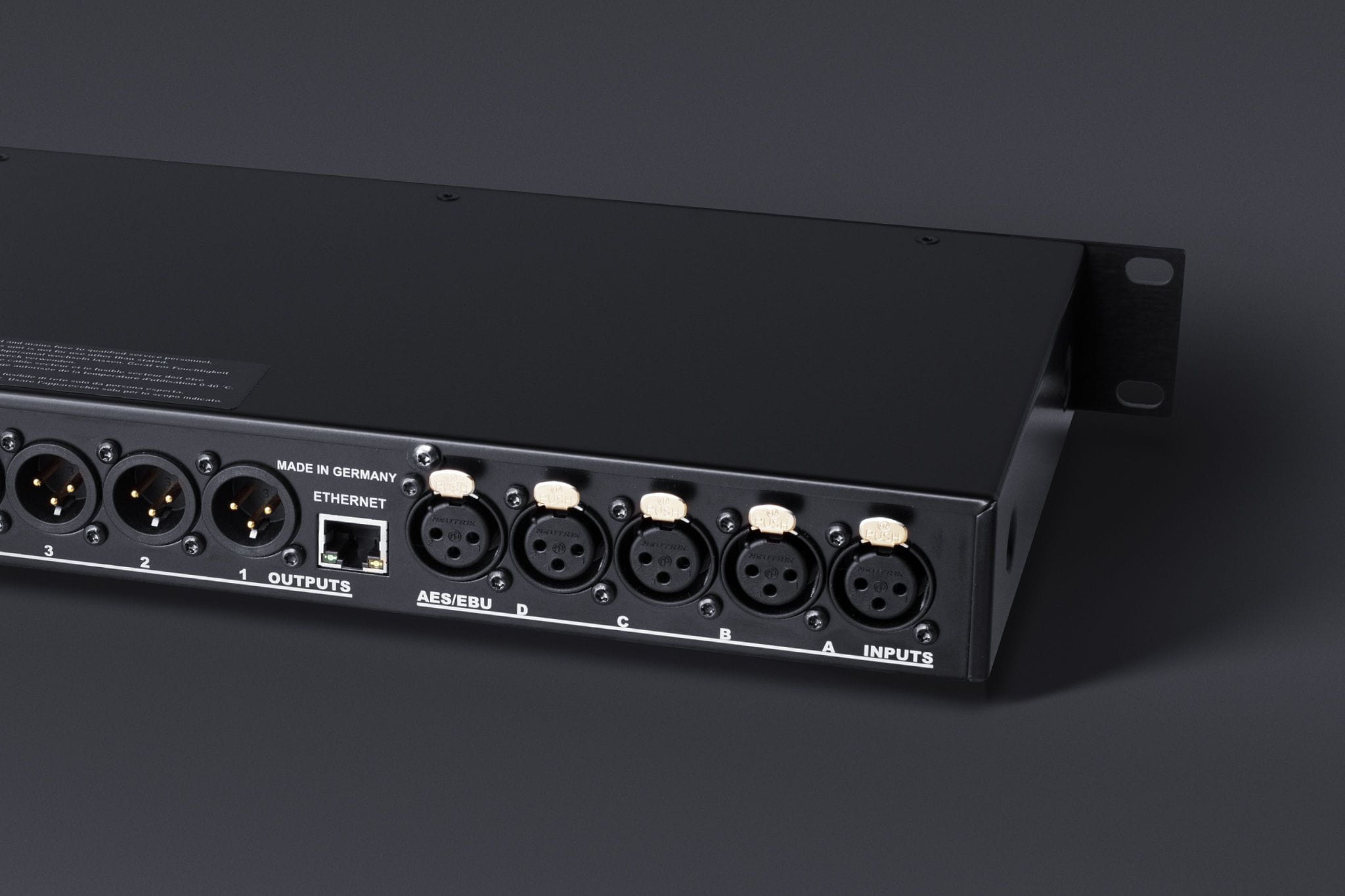

The NSP248E MK2 is a versatile processor with 4 analog inputs, 1 digital input in AES/EBU format, and an Ethernet port with Dante support. It also offers 8 analog outputs, 10 parametric EQs per input, and an output with frequency response from 10Hz to 30kHz. Each output can be preloaded with an FIR filter file.

Improvements in the new mk2 version include changes to the A/D converters, which now have 130dB of dynamic range, and the D/A converters with 125dB, which translates to lower self-noise and increased headroom. The new processors have significantly better transient response than their predecessor, which in turn translates to improved sound quality.

Additionally, we get IIR filters with attenuation of 48 dB per octave and FIR on each output

It also offers real-time monitoring and control via USB and Ethernet. Analog inputs tolerate voltages up to 10V RMS (+22 dBu), meeting the requirements of virtually every audio source available on the market today, with a fantastic dynamic range of up to 130 dB. The use of top-of-the-line toroidal transformers ensures clean power with low noise. The AD/DA converters with 64-bit processing were carefully selected and currently ensure that the sound quality offered by our processor can easily compete with any reference processor you choose for comparison.

TECHNICAL PARAMETERS:

• Dynamic range:  130dB (inputs) / 125dB (outputs)
• Balanced inputs
• Frequency range:  10Hz - 30kHz
• Input gain  up to +12dB

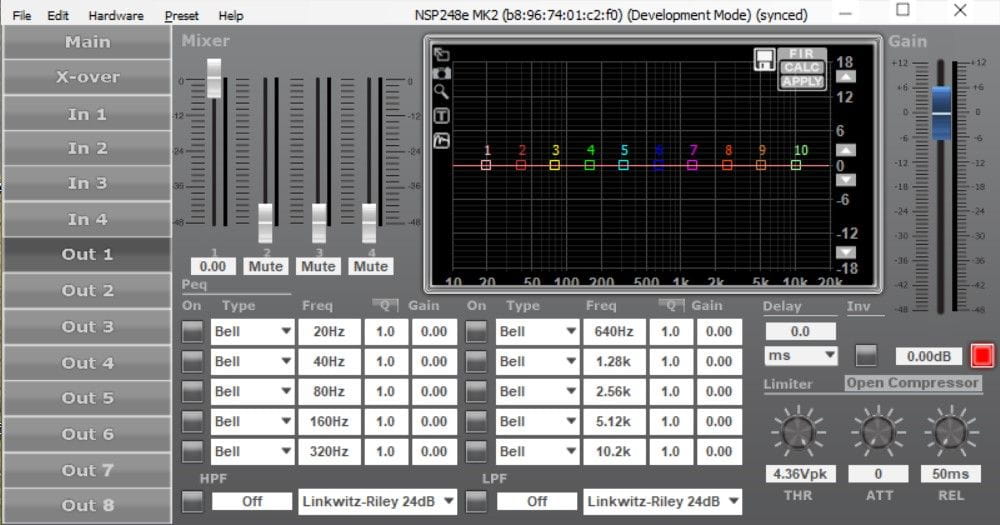

• 10 parametric EQs  for each input and output
• Parametric EQ can be set as  Bell, High Shelf, Low Shelf, Notch, Allpass
• 2s delay on each output and input

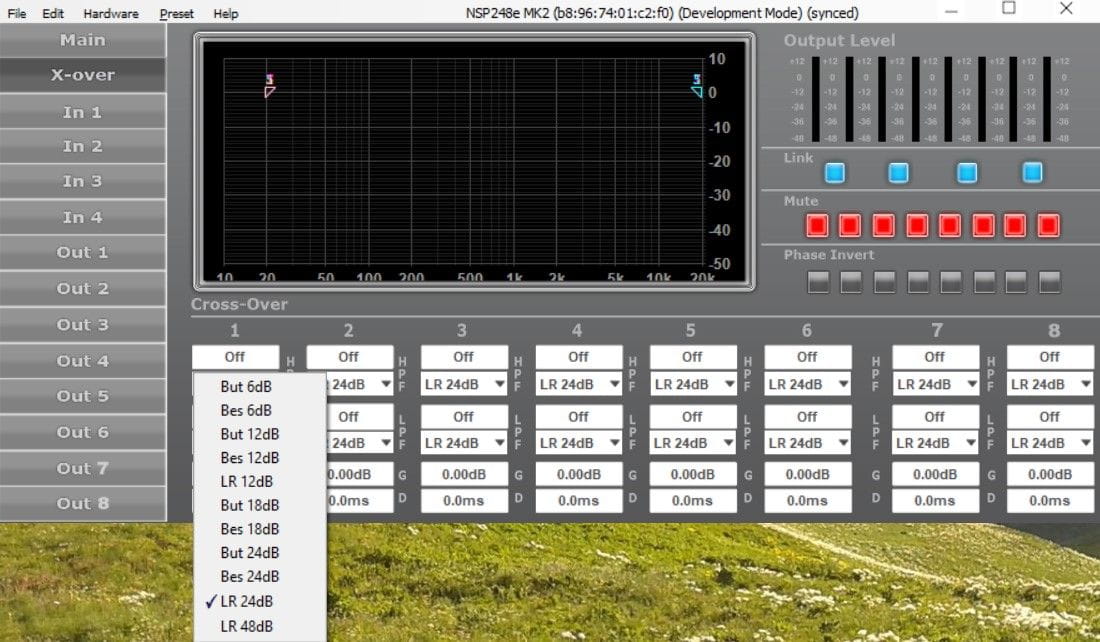

• Butterworth, Bessel, Linkwitz-Riley filters   up to 48dB / oct.
• FIR filters can be loaded on each output

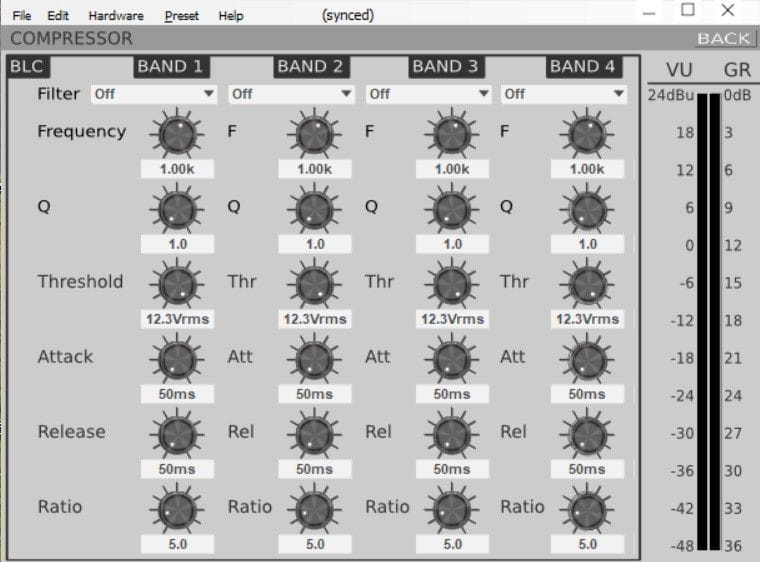

• True RMS compressor
• Zero-attack Peak Limiter
• Polarity reversal 180°
• Nominal input level:  +6dBu
• Maximum input level:  +22dBu
• Nominal output level : +6dBu
• Maximum output level:  +12dBu
• Intrinsic Delay (Latency) : 400 microseconds (0.4 milliseconds) fixed + FIR
• Fully configurable and monitored from PC and Mac via  USB/Ethernet
• NAW factory presets  and user-friendly spaces to operate any system
• dedicated software  included
• 64-bit  signal processing
