FAVO TM15 Stage Monitor/Satellite

PRODUCT DESCRIPTION

The FAVO TM15 is a full-range stage monitor with dual operating angles and passive/active* modes. It employs a modern coaxial speaker with a neodymium magnet and 3" voice coils for both sources, as well as an external HF horn with controlled directivity.

The TM15 is a compact, low-profile monitor capable of operating in passive mode while maintaining exceptional sound quality. It also supports active (BiAmp) operation, controlled by two DSP-powered power amplifier channels. Modes are switched via a built-in switch hidden under the handle*.

Coaxial driver – ensures directivity and the best possible coherence at various listening positions, which translates into improved sound quality. Both sources (woofers and tweeters) share a common magnet, allowing them to be placed as close as possible to each other, creating a coherent point source.

The enclosure is constructed of appropriately hard birch plywood, reinforced to eliminate harmful resonances. A floor-facing bass reflex port ensures improved audibility of the lowest frequencies.

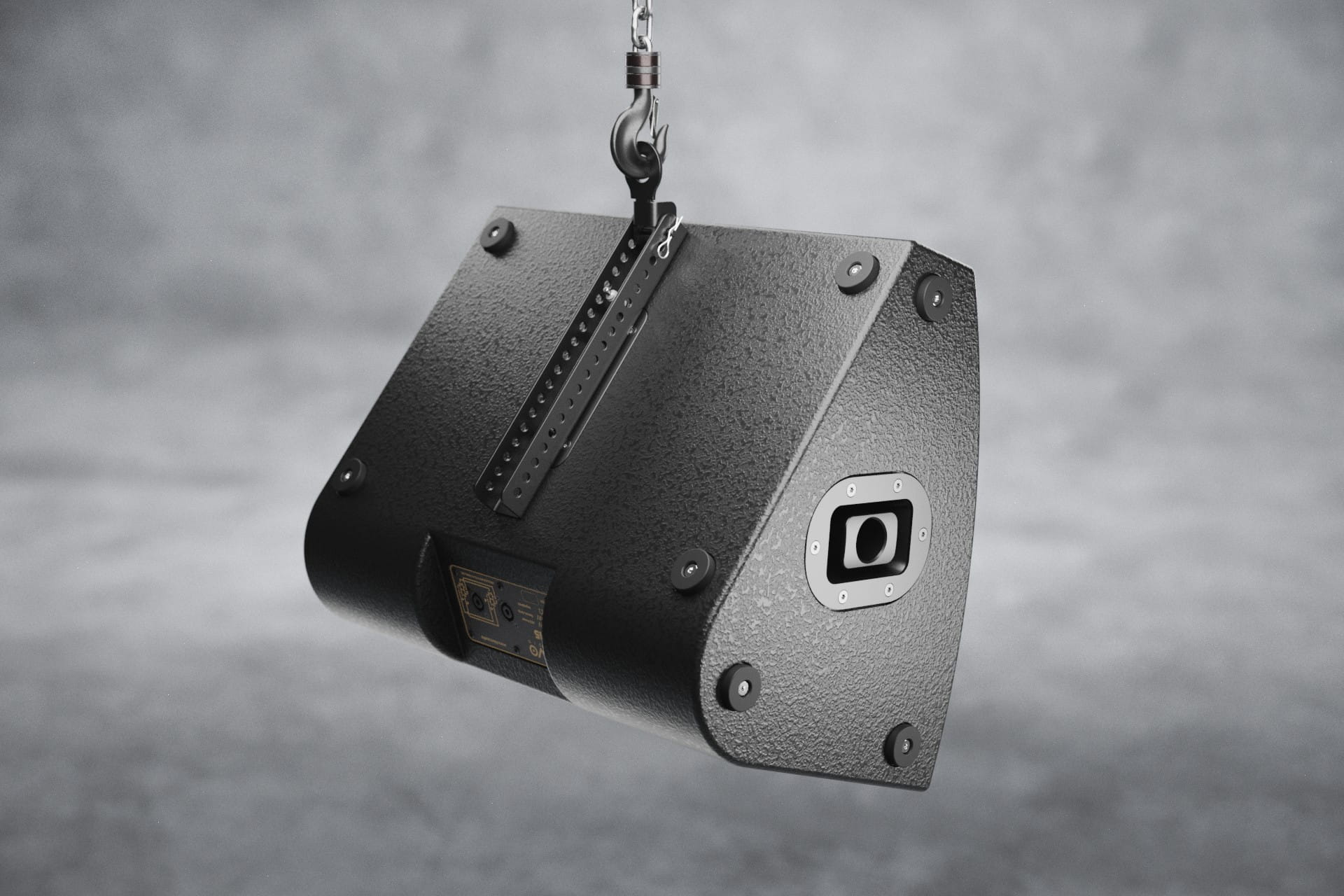

The tripod socket with a fixed angle of +/- 13.5° (in 4.5° steps) ensures optimal coverage of the sound area in satellite mode.

Laminar Bass-Reflex Port - The necessary calculations and simulations were performed for the tuning and design of the bass-reflex ports. These, by optimally utilizing the energy radiated by the rear of the speaker diaphragm, not only allowed for a lower frequency response and greater low-frequency efficiency, but also allowed for the appropriate shape of the bass-reflex port outlet to maintain laminar airflow . This design largely eliminates turbulence and distortion, allowing the TM15 stage monitors to deliver crystal-clear sound, free from the typical drawbacks of standard bass-reflex designs (low-frequency distortion, whirring, etc.).

*passive/biamp switching option is available upon request at an additional cost

APPLICATION

• Stage and FOH monitor with adjustable stand angle
• Live music
• Music from records
• Speech

TECHNICAL PARAMETERS

• Nominal power : 400W AES
• Recommended amplifier power: 600-800W RMS
• SPL efficiency (1W/1m) : 99dB
• Maximum SPL (peakCF6): 131dB (stimulus Crest Factor 6dB)
• Maximum SPL (peakCF10): 135dB (stimulus Crest Factor 10dB)
• Maximum SPL under long continuous load: 125dB

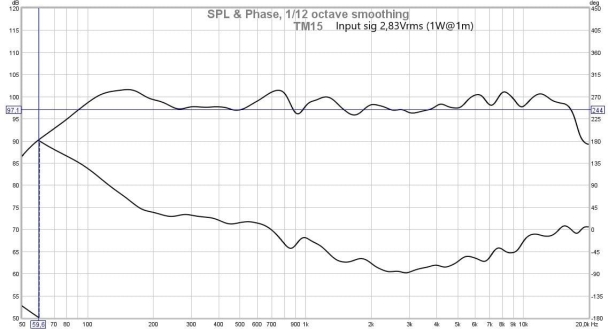

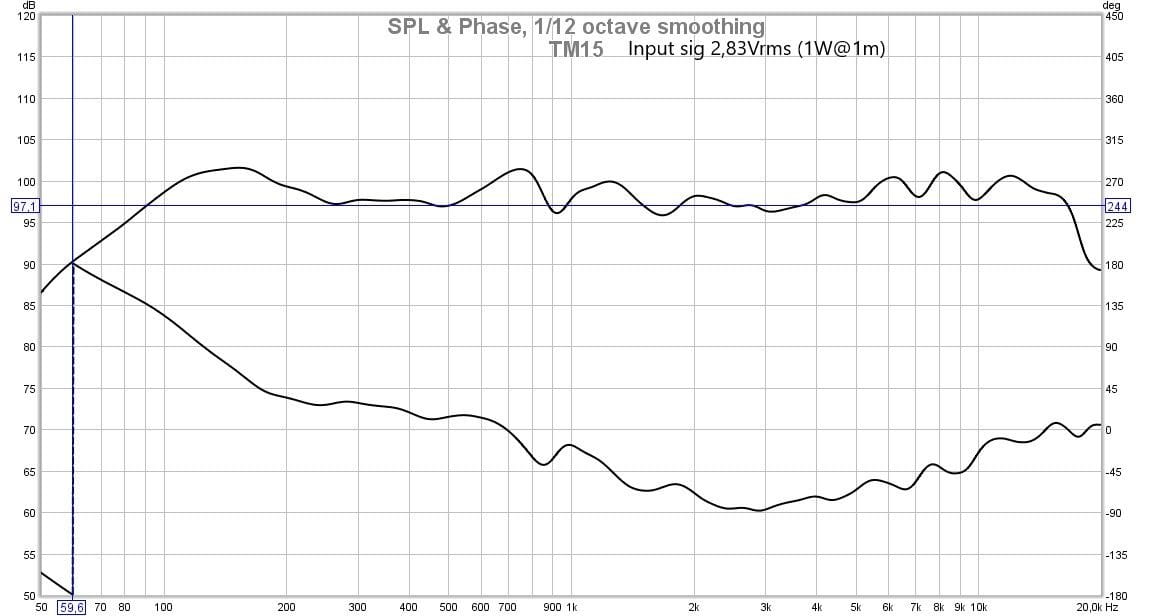

• Bandwidth (-3dB): 70Hz-18kHz (details on the SPL graph - blue graph using floor reflection, black graph free field measurement. Measurements with built-in passive crossover)
• Bandwidth (-10dB): 50Hz-20kHz
• Phase : 200Hz - 16kHz +/- 65 degrees (passive crossover)
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically (possible change by 90 degrees)

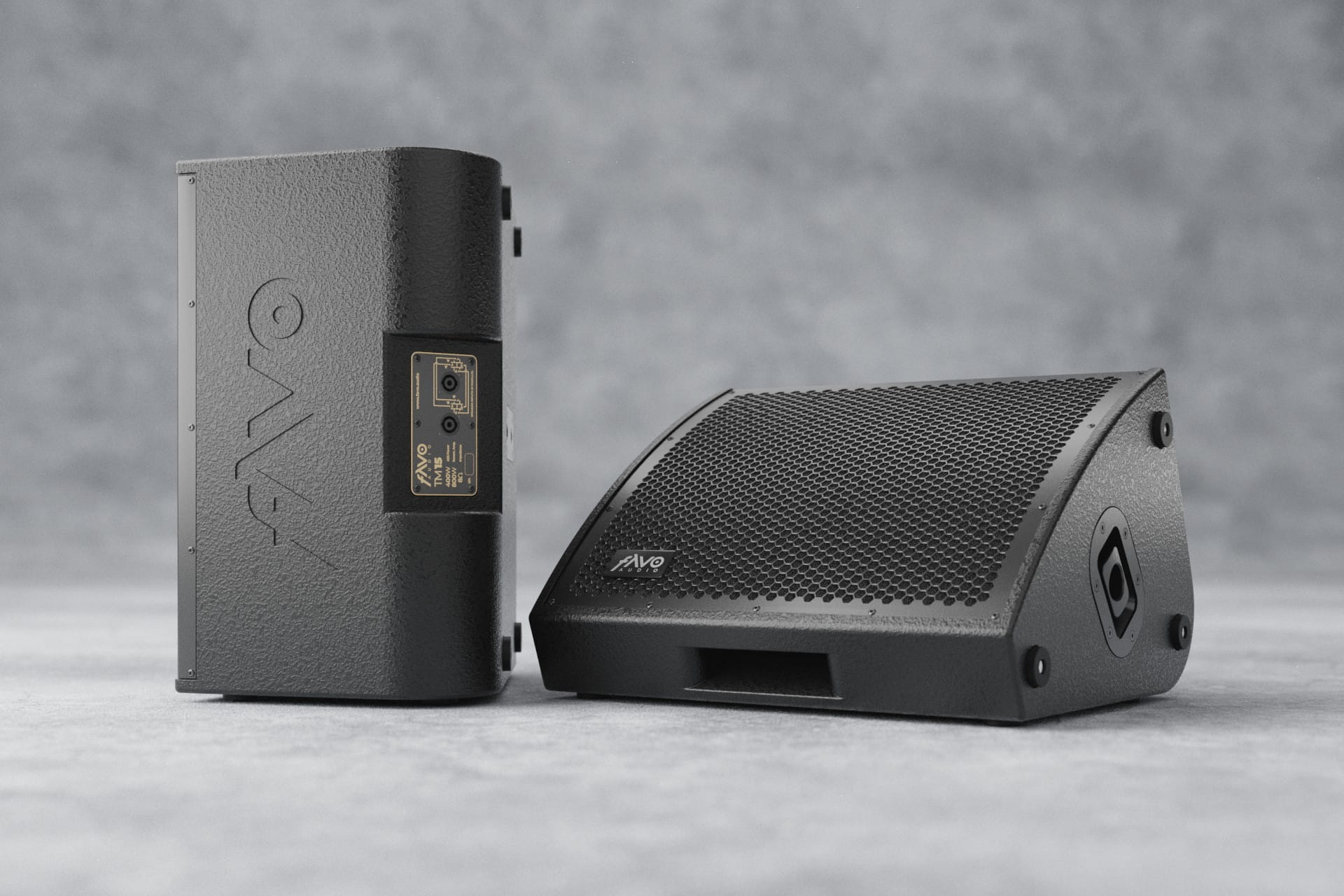

• Working angles (near/far field): 35 degrees/75 degrees relative to the floor
• Speakers: B&C Speakers coaxial 15" lightweight neodymium with 3" voice coil, driver with 1.4" exit and 3" voice coil - common magnet.
• Laminar Bass Reflex Port - allows for turbulence-free airflow and excellent addition of low frequencies from the floor

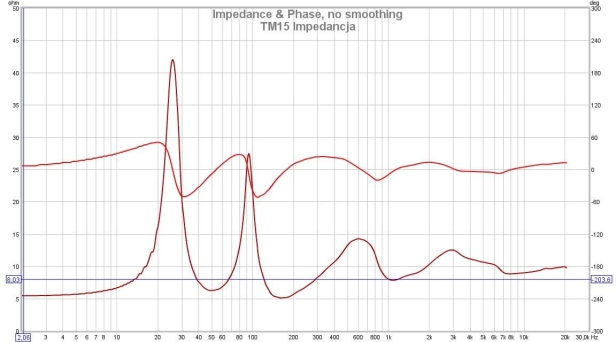

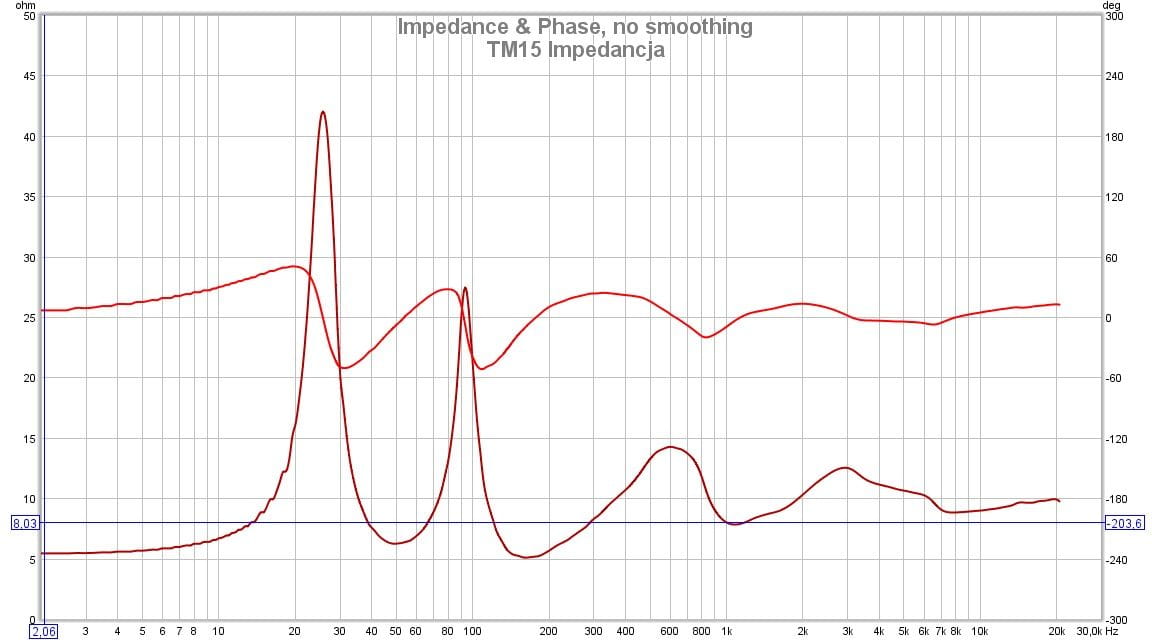

• Impedance: 8Ω (see impedance graph for details)

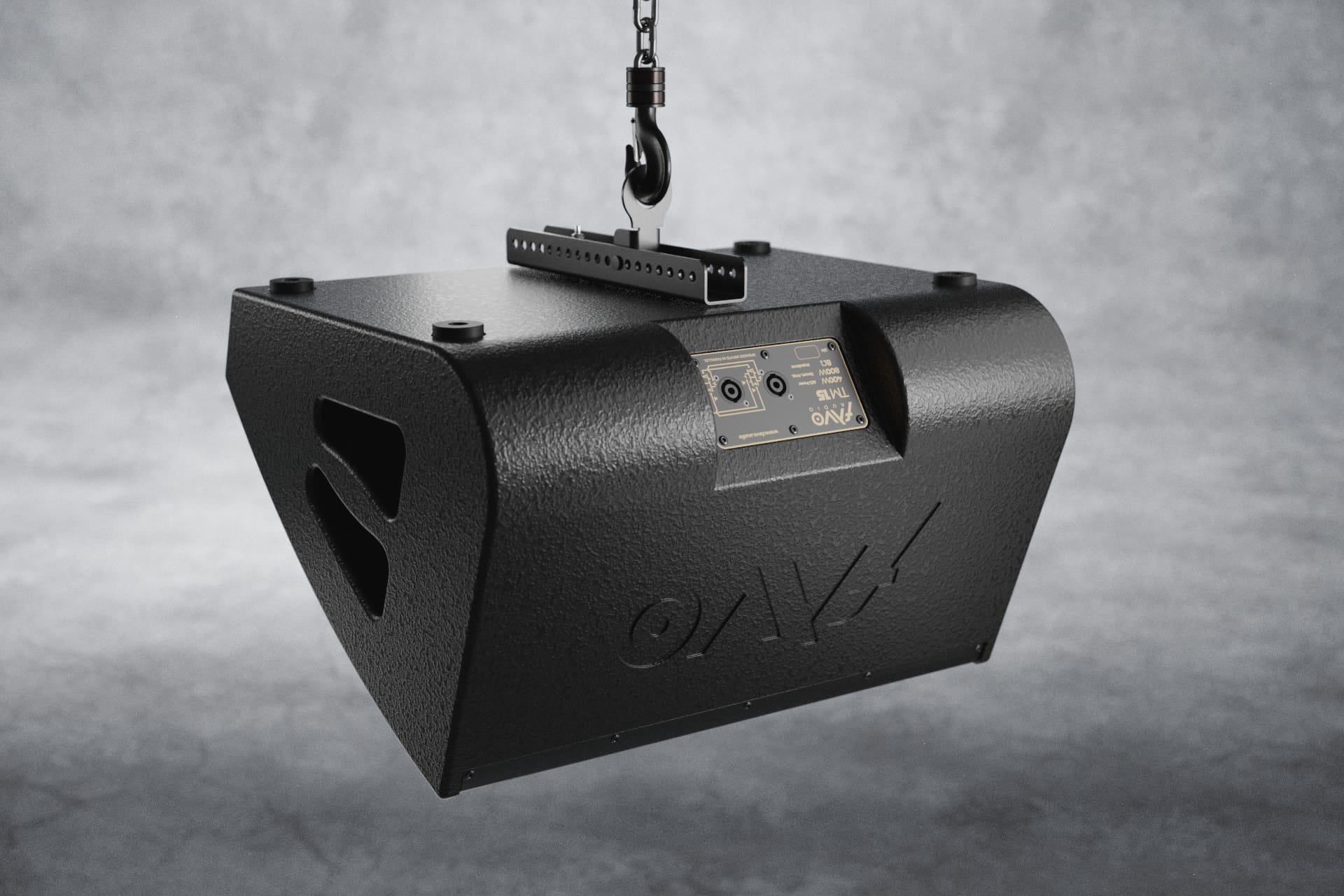

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 345mm x 580mm x 510mm
• Weight : 23kg
