FAVO TM15F Stage Monitor/Satellite

PRODUCT DESCRIPTION

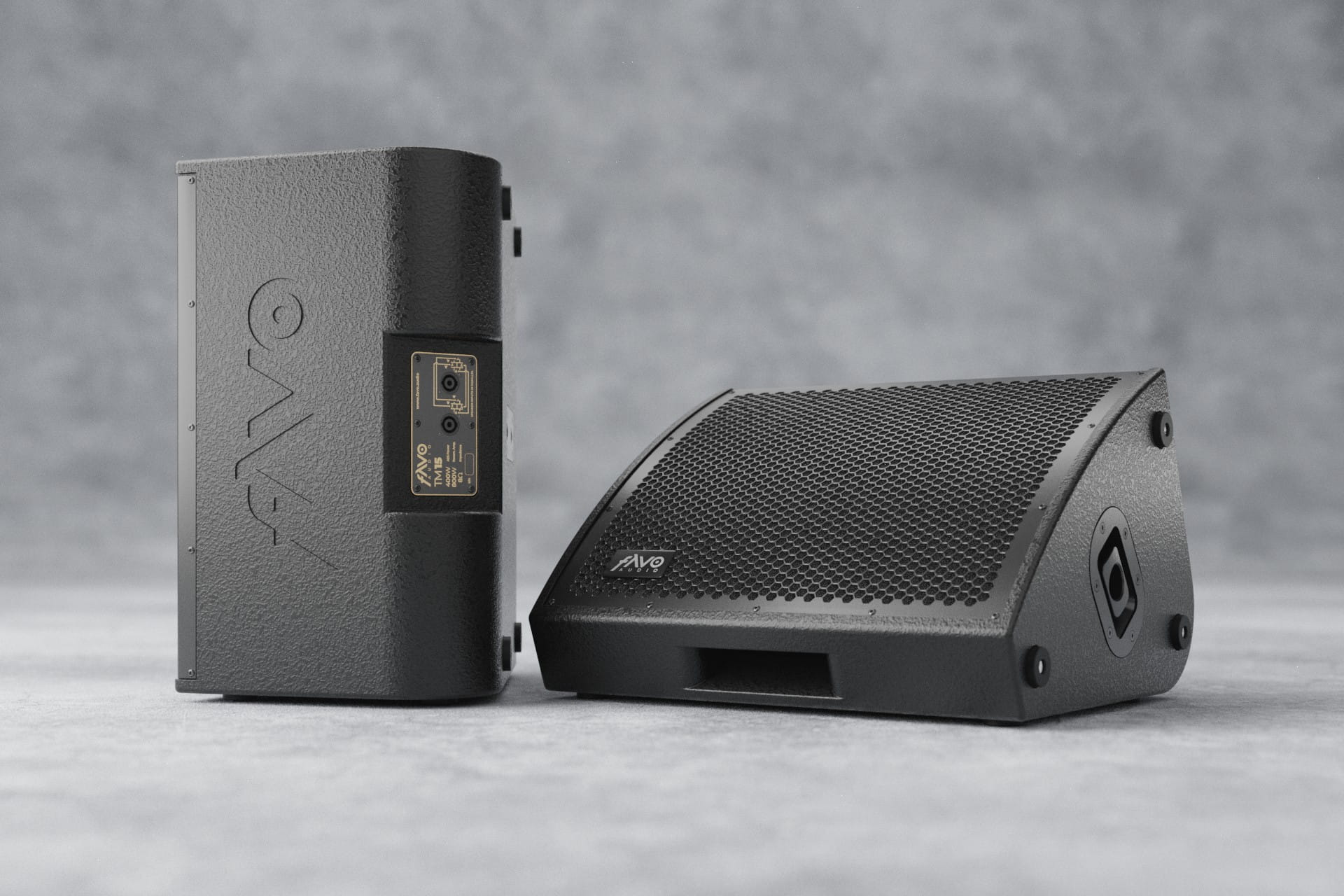

FAVO TM15F is a full-range stage monitor with two operating angles and passive/active modes*.

The TM15F is a compact, low-profile monitor capable of operating in passive mode while maintaining exceptional sound quality. It also supports active (BiAmp) operation, controlled by two DSP-powered power amplifier channels. Modes are switched via a built-in switch hidden under the handle*.

Coaxial driver – ensures directivity and the best possible coherence at various listening positions, which translates into improved sound quality. Both sources (woofers and tweeters) share a common magnet, allowing them to be placed as close as possible to each other (coherent point source).

The enclosure is constructed of appropriately hardened birch plywood, reinforced to eliminate harmful resonances. A floor-facing bass reflex port ensures improved audibility of the lowest frequencies.

The tripod socket with a fixed angle of +/- 13.5° (in 4.5° steps) ensures optimal coverage of the sound area in satellite mode.

Laminar Bass-Reflex Port - The necessary calculations and simulations were performed for the tuning and design of the bass-reflex ports. These, by optimally utilizing the energy radiated by the rear of the speaker diaphragm, not only allowed for a lower frequency response and greater low-frequency efficiency, but also allowed for the appropriate shape of the bass-reflex port outlet to maintain laminar airflow. This design largely eliminates turbulence and wave distortion, allowing the TM15F stage monitors to deliver crystal-clear sound, free from the typical drawbacks of standard bass-reflex designs (low-frequency distortion, flutter, etc.).

*passive/biamp switching option is available upon request at an additional cost

APPLICATION

• Stage monitor and FOH front-of-house sound system on a stand
• Live music
• Music from records
• Speech

TECHNICAL PARAMETERS

• Nominal power: 400W
• Recommended amplifier power: 600-800W RMS

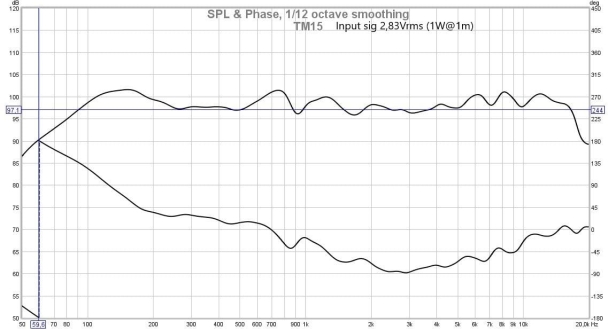

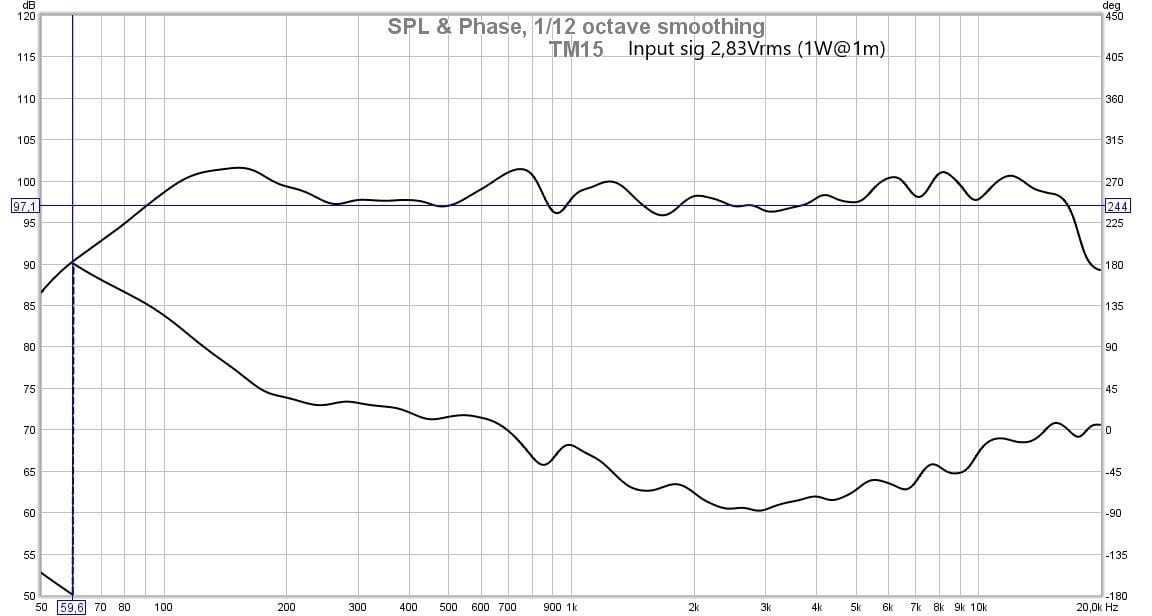

• SPL efficiency (1W/1m) : 98dB
• Maximum SPL (peakCF6): 130dB (stimulus Crest Factor 6dB)
• Maximum SPL (peakCF10): 134dB (stimulus Crest Factor 10dB)
• Maximum SPL under long continuous load: 124dB
• Bandwidth (-3dB): 70Hz-18kHz (using floor reflection)
• Bandwidth (-10dB): 50Hz-20kHz
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically (possible change by 90 degrees)
• Working angles (near/far field): 35 degrees/75 degrees
• Speakers: B&C Speakers coaxial 15" ferrite with 3" voice coil, driver with 1.4" exit and 3" voice coil - common magnet.
• Laminar Bass Reflex Port - allows for turbulence-free airflow and excellent addition of low frequencies from the floor

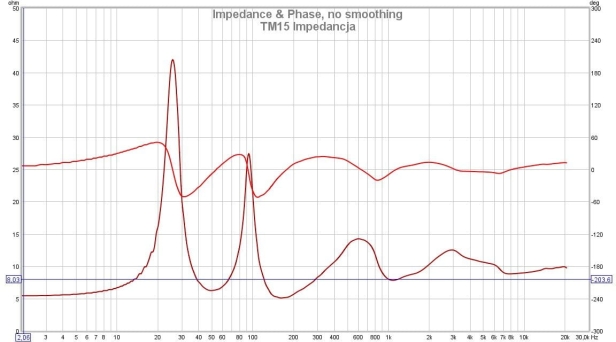

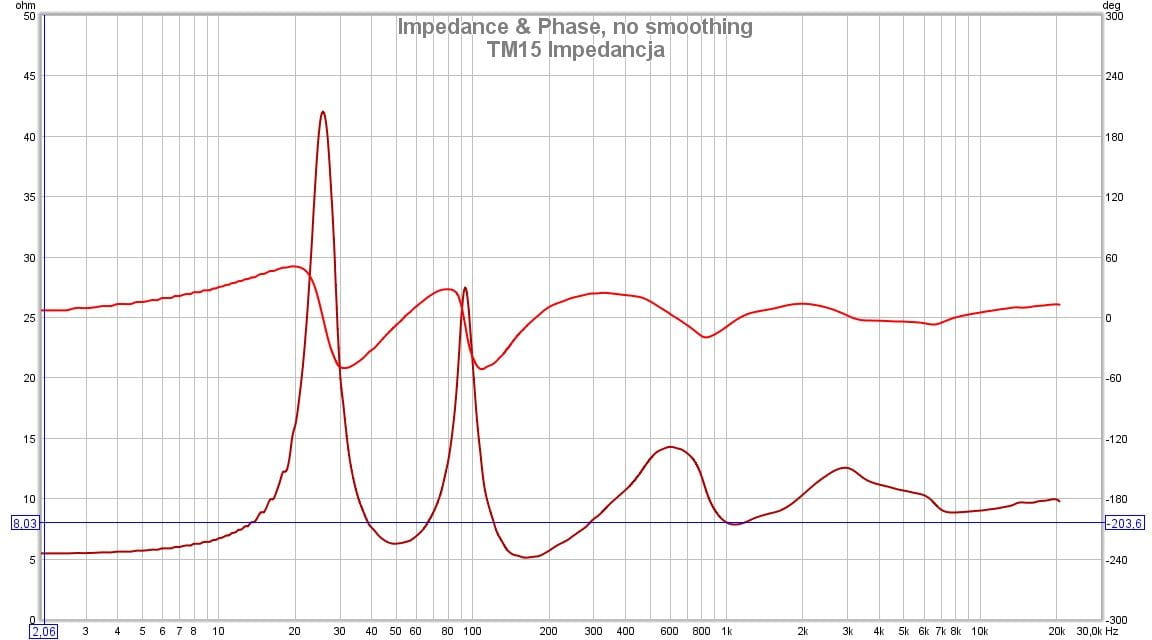

• Impedance: 8Ω
• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 345mm x 580mm x 510mm
• Weight: 26kg
