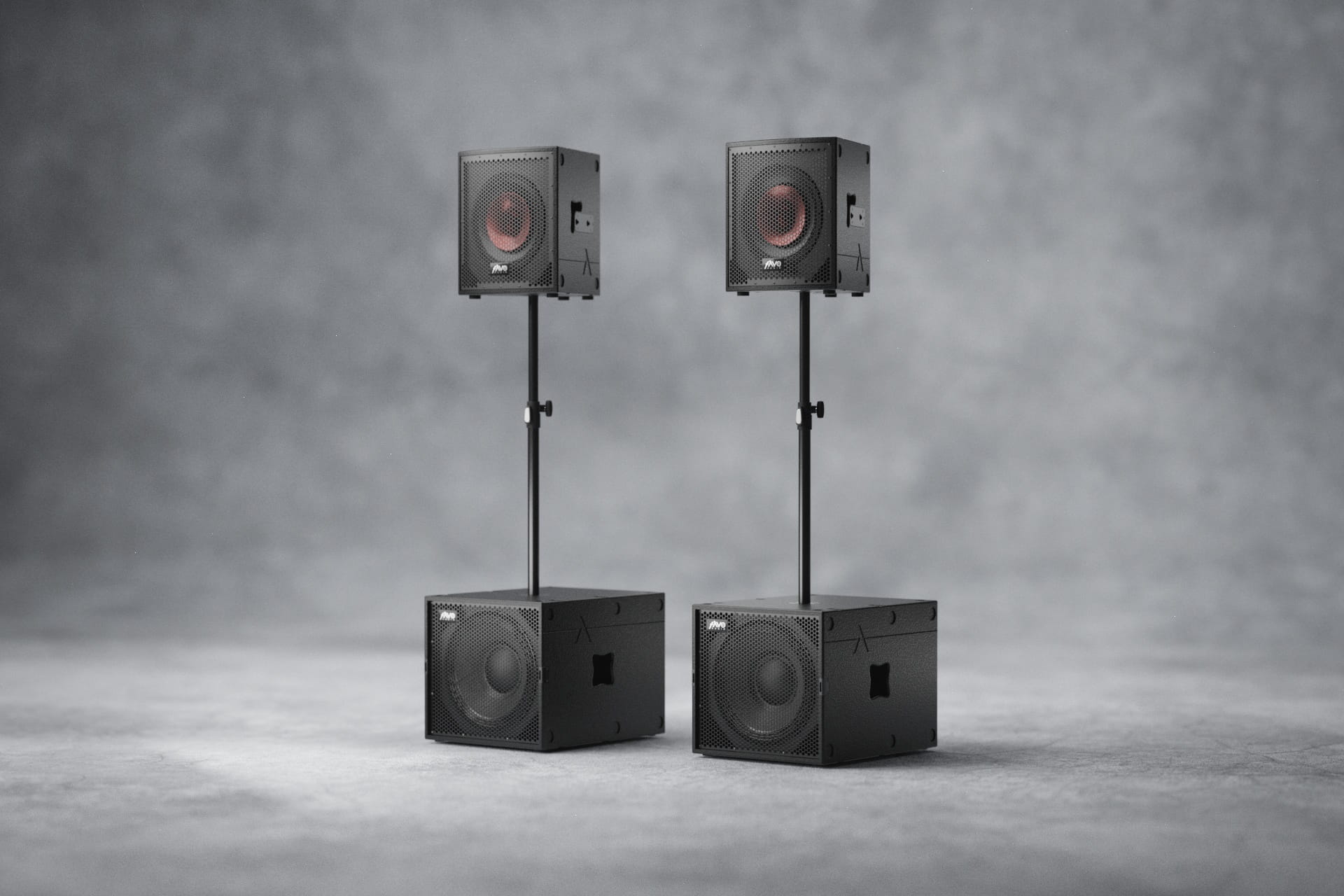

FAVO VMS1512 ACTIVE SET for up to 300 people

PRODUCT DESCRIPTION:

Mobile, very small and easy-to-use sound system for events for up to 300 people with DSP and Ethernet remote control.

The VMS Series 1512 Integrated PA System is an active system based on the highest quality components, offering very high SPL and high sound quality thanks to the use of innovative transducers and power amplifiers. The VSC12F satellite, based on the MF12"/HF3" coaxial speaker, and the MBR115 15" bass are tuned with a built-in three-channel amplifier and a dedicated DSP digital preamplifier . The four-element system (2x bass, 2x satellite) is capable of producing over 130 dB SPL within the usable frequency range (35 Hz-18 kHz). The preamplifier is equipped with input and output limiters to optimally protect the system from excessive signal. The third-generation Class D power amplifiers are equipped with current and thermal protection compliant with European CE standards. This set is perfect for bands and DJs who value convenience – quick installation, low weight, and beautiful sound.

A major advantage of the system is its scalability , meaning it can be expanded with additional modules without adverse acoustic effects. With two such systems, you can create a small outdoor event for up to 1,000 people. Thanks to their dispersion characteristics, the satellites do not generate comb filtering when stacking modules. We have a set of accessories for suspending the satellites on stages and in installations.

FULL SCALABILITY

We design our sets so that you can easily expand them with additional elements, thus being able to handle increasingly larger events in the future without unnecessary investment in completely new equipment, and without worrying about a decrease in sound quality.

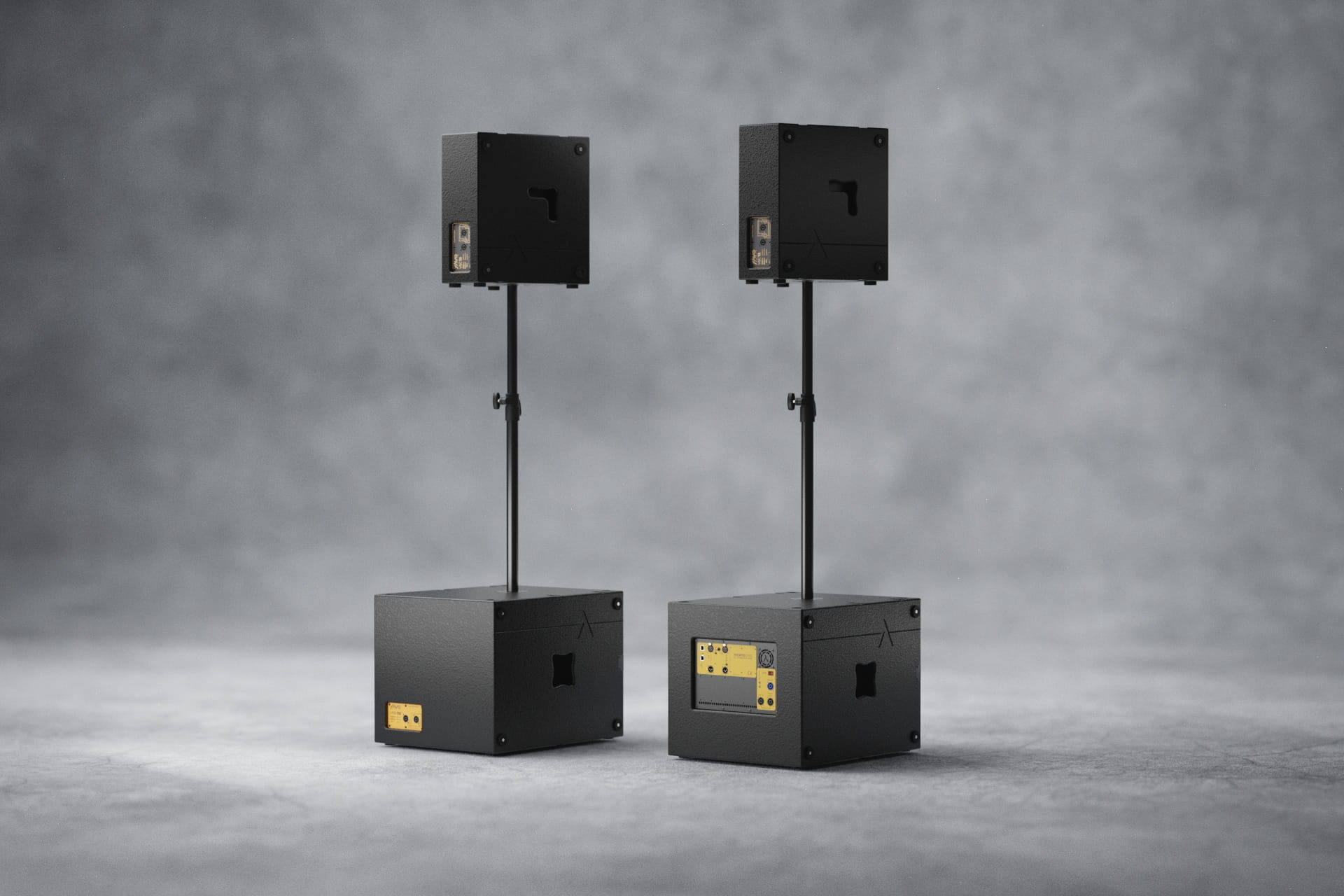

THE SET INCLUDES:

• Two VSC12f passive satellites with a concert-grade coaxial speaker and a stand socket with a smoothly adjustable operating angle

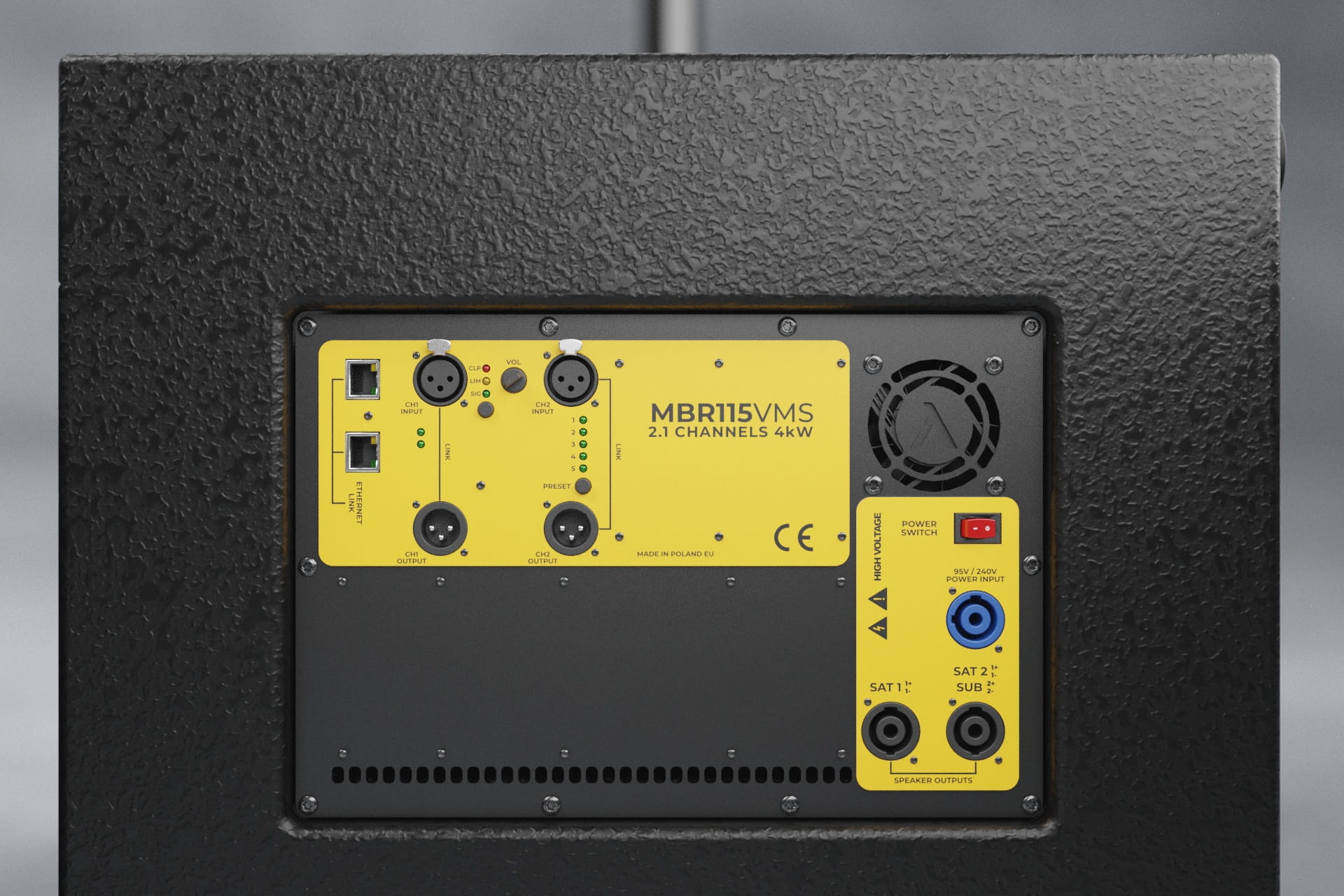

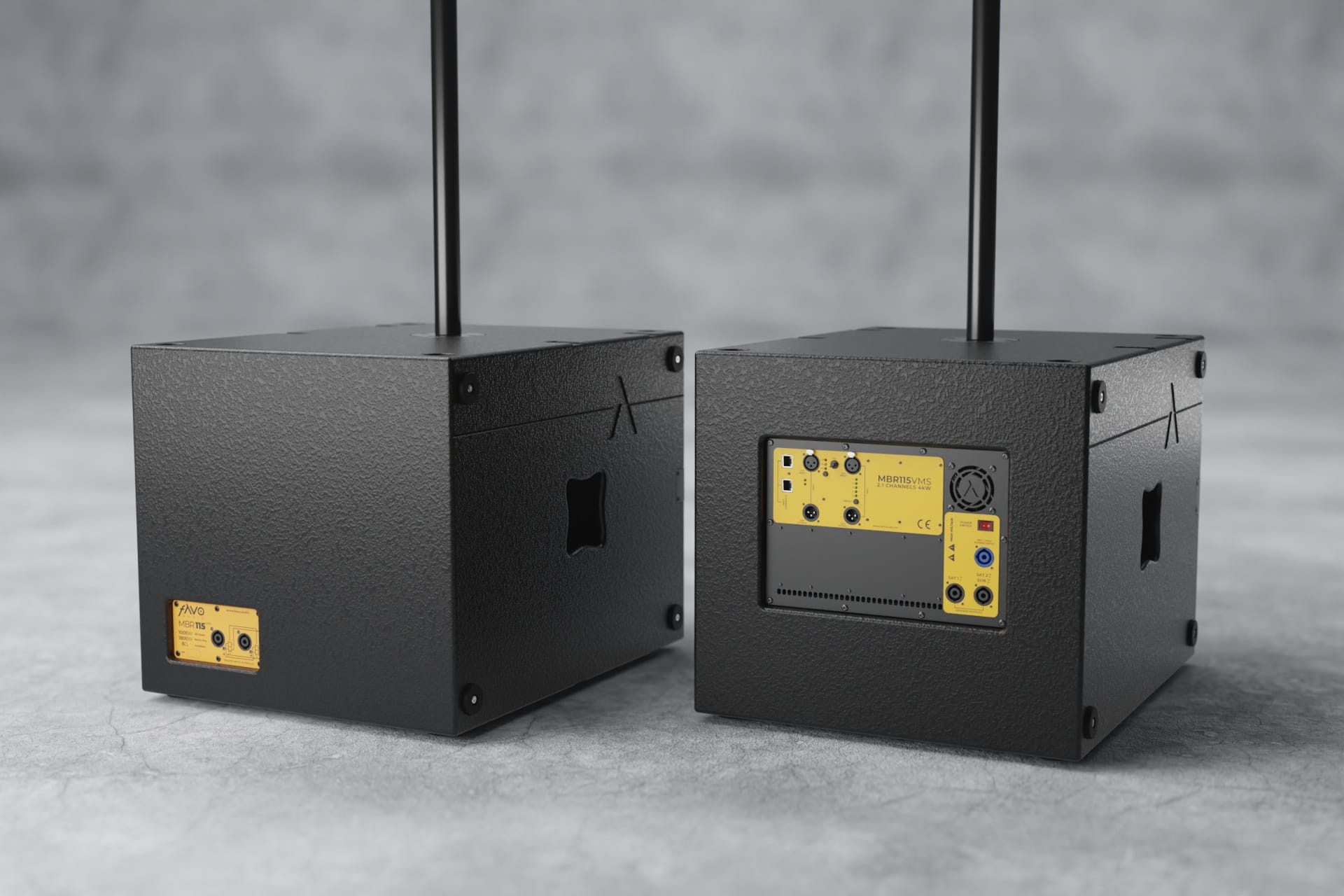

• MBR115a2.1 DSP active bass with integrated 3-channel amplifier with 4100W power, digital preamplifier with full DSP functions, control via Ethernet and dedicated software

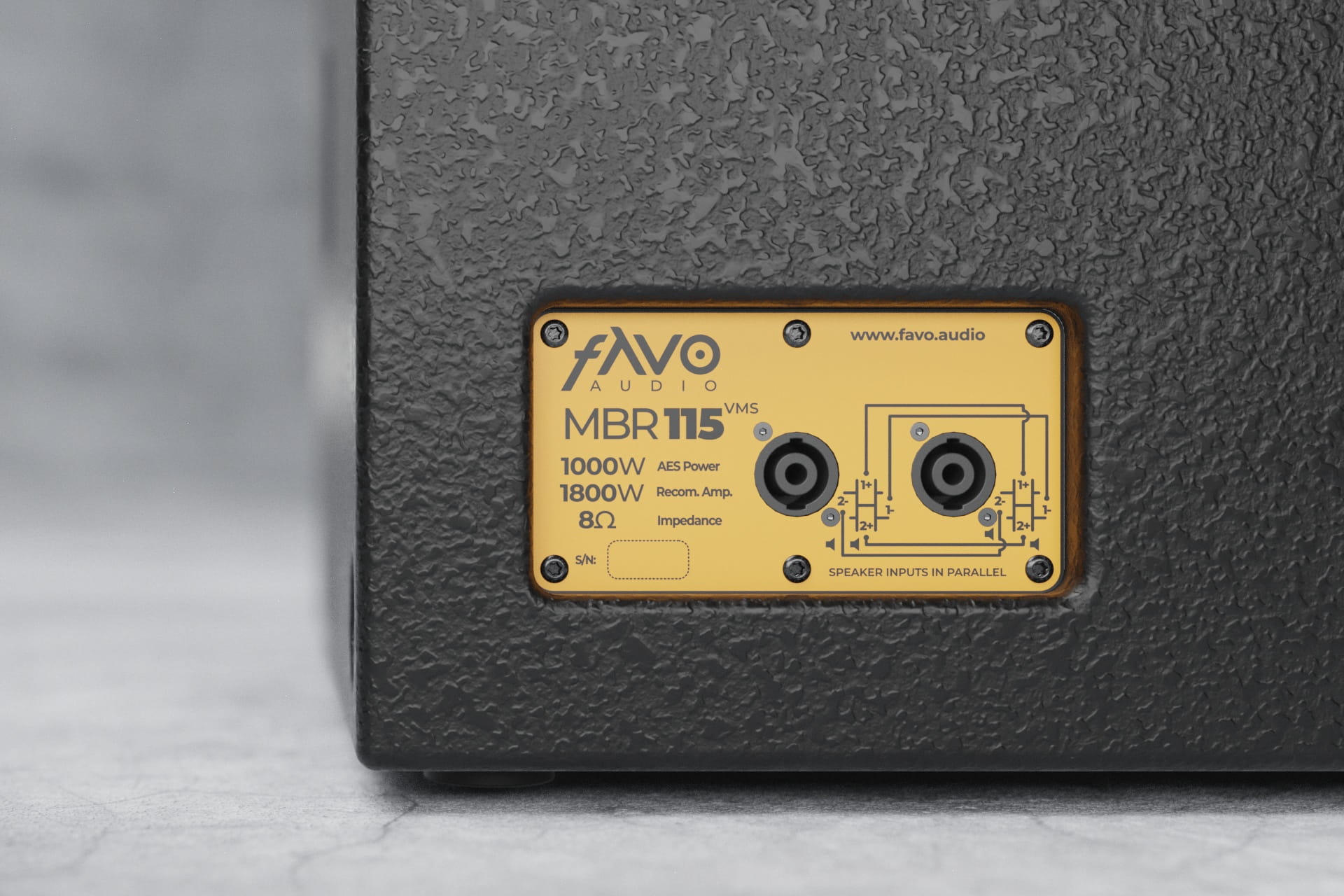

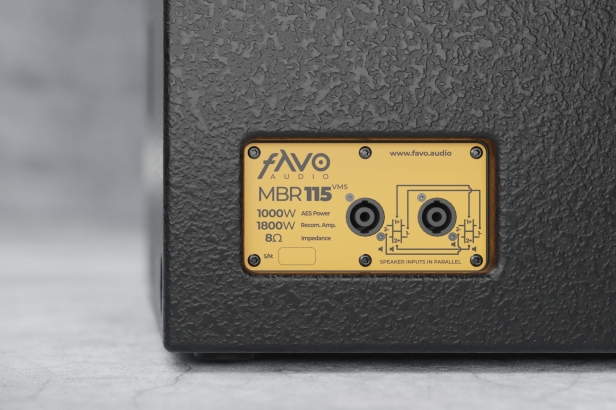

• MBR115 Passive Bass
• Wiring throughout - Neutrik Speakon (2.5mm2) speaker cables and Powercon current cables
• Stands to choose from - Standard or bass-mounted speaker stand

OPTIONAL:

• skateboards that can be attached to the front of MBR basses or used to place a rolling drumfill (not included in the price),
• dedicated frames for suspending satellites.

SYSTEM TECHNICAL INFORMATION:

• VMS 1512 system power: 3300W
  • 2x400W satellites,
  • 2500W bass,
  • it is possible to connect two additional satellites and load the power amplifier to 4 Ohms

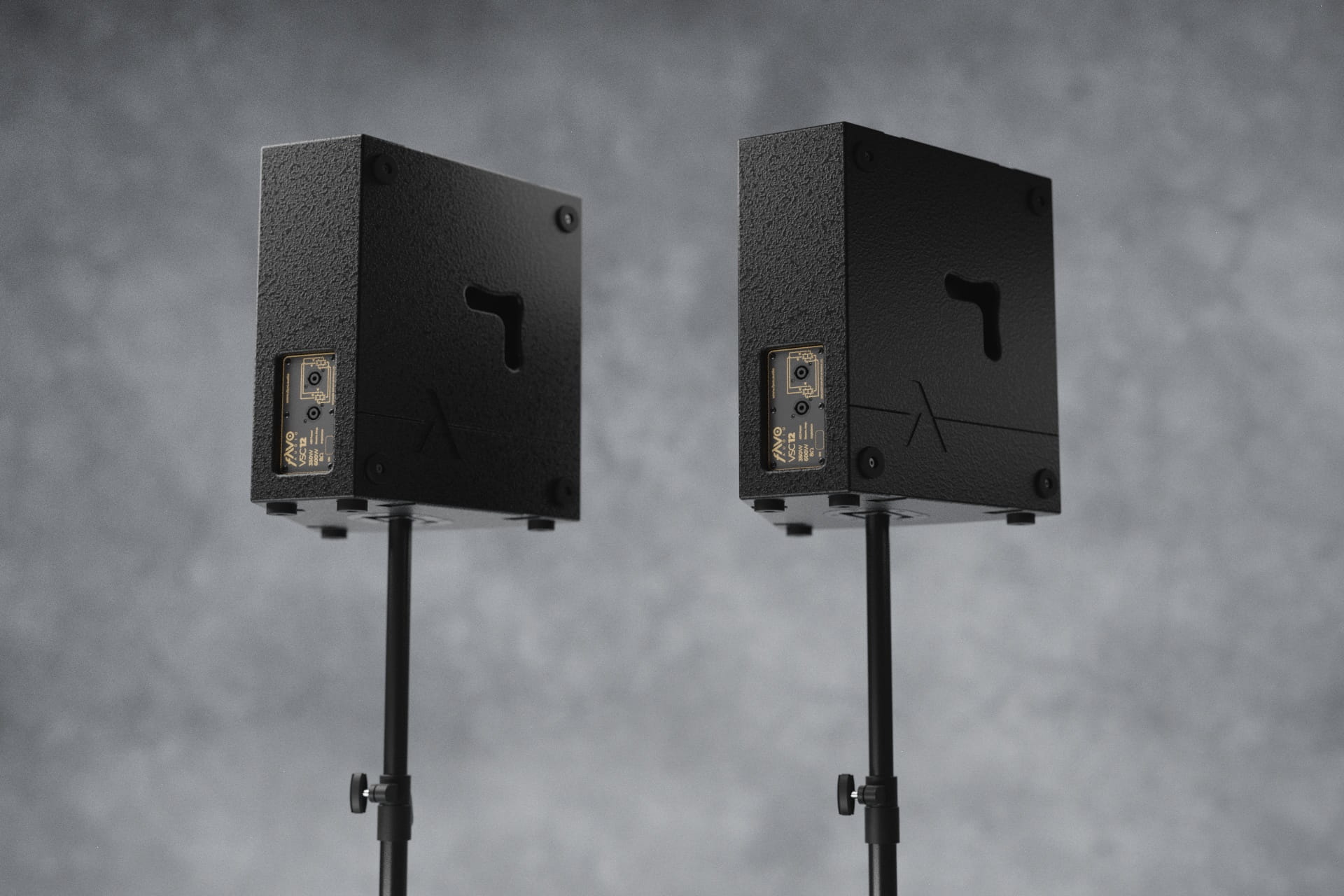

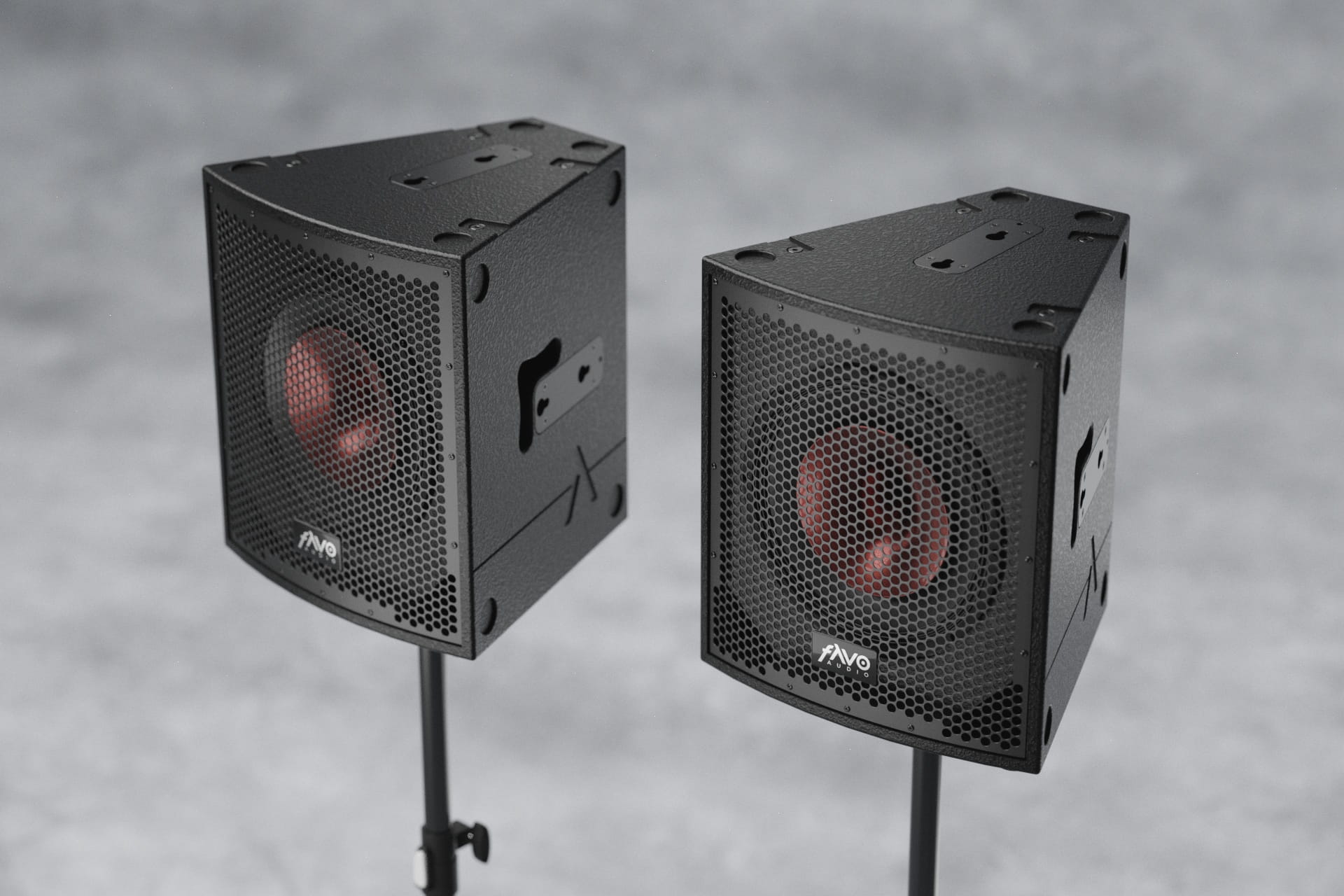

• VSC12F Satellite:

  • Power (nominal): 400W@8Ohm
  • Speaker: B&C coaxial 12"/3"LF+1.5"/3"HF
  • Frequency response (-3dB): 90Hz - 18kHz
  • Efficiency (1W/1m): 98dB
  • Dimensions: 462h x 420w x 410d
  • Weight: 19kg

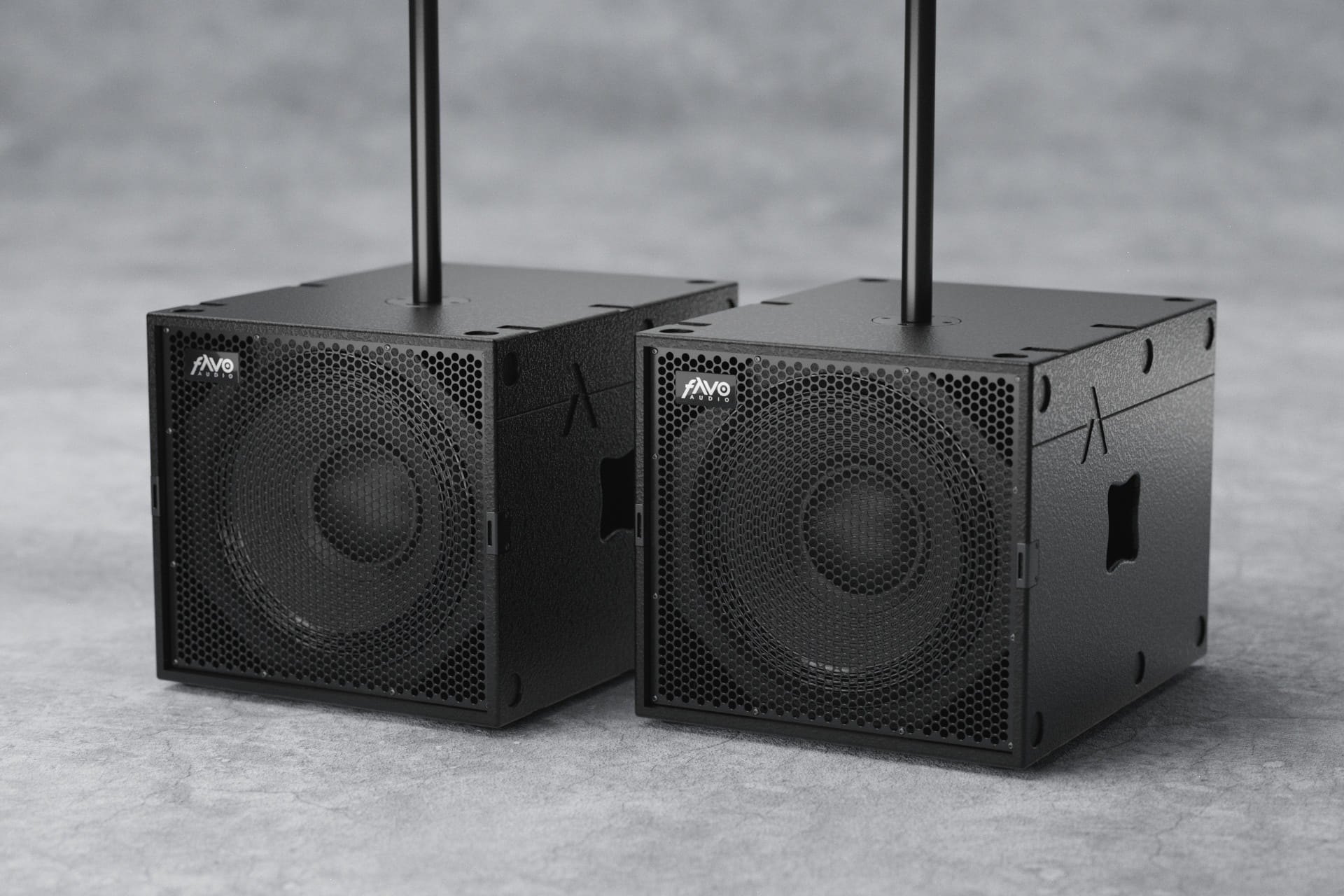

• Bass MBR115:

  • Power (nominal): 1000W@8Ohm
  • Speaker: B&C 15"/4" neodymium and high Xmax
  • Frequency response (-3dB): 40Hz - 115Hz
  • Efficiency (1W/1m/halfspace): 97dB/103dB
  • Dimensions: 462h x 500w x 560d
  • Weight: 28kg

3-YEAR WARRANTY.

NAW provides a 3-year warranty on the entire sound system and ensures the fastest possible technical support in the event of a failure and post-warranty service.
