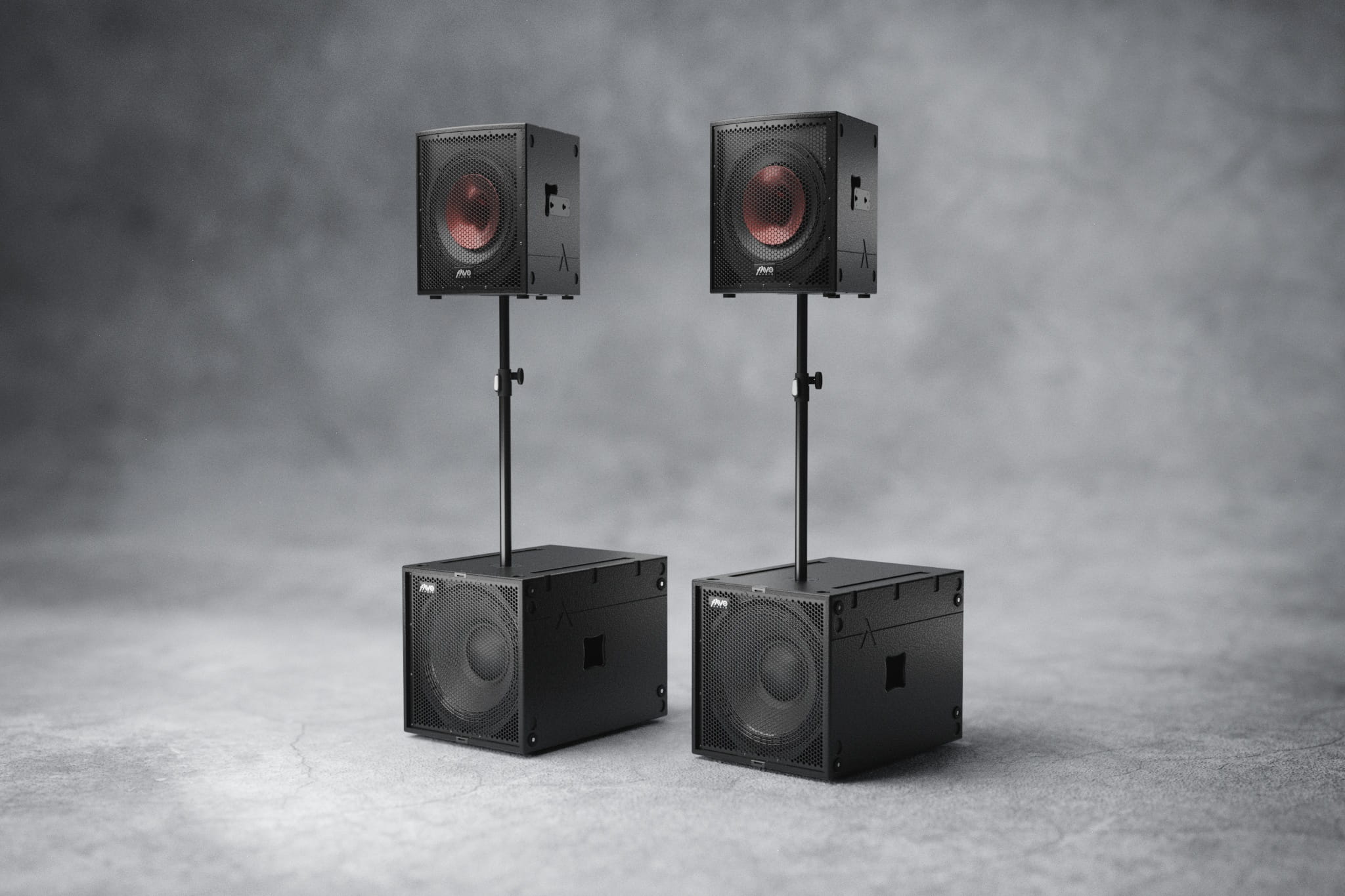

FAVO VMS1815 ACTIVE SET for up to 400 people

PRODUCT DESCRIPTION

A mobile, small, easy-to-use sound system for events for up to 500 people .

The VMS Series 1815 Integrated PA System is an active system built with the highest quality components, offering very high SPL and high sound quality thanks to the use of innovative transducers and power amplifiers. The VSC15F satellite, based on the MF15"/HF3" coaxial speaker, and the MBR118 18" bass are tuned with a built-in three-channel amplifier and dedicated preamp. The four-element system (2x bass, 2x satellite) is capable of producing over 132 dB SPL within the usable frequency range (35 Hz-18 kHz). The preamp is equipped with input and output limiters to optimally protect the system from excessive signal. The 3rd generation Class D power amplifiers are equipped with current and thermal protection compliant with European CE standards. This set is perfect for bands and DJs who value convenience – quick installation, low weight, and beautiful sound.

A major advantage of the system is its scalability , meaning it can be expanded with additional modules without adverse acoustic effects. With two such systems, you can create a small outdoor event for approximately 1,000-1,500 people. Thanks to their dispersion characteristics, the satellites do not generate comb filtering when stacking modules. We have a set of accessories for suspending the satellites on stages and in installations.

FULL SCALABILITY

We design our sets so that you can easily expand them with additional elements, thus being able to handle increasingly larger events in the future without unnecessary investment in completely new equipment, and without worrying about a decrease in sound quality.

THE SET INCLUDES:

• Two VSC15f passive satellites with a concert-grade coaxial speaker and a stand socket with a smoothly adjustable operating angle
• MBR118a2.1 active bass with integrated 3-channel amplifier with a power of 4100W, with built-in discrete input and output limiters protecting the entire system against excessive signal with two operating modes - using a crossover and full-range (only the second channel)
• MBR118 Passive Bass
• Wiring throughout - Neutrik Speakon (2.5mm2) speaker cables and Powercon current cables
• Stands to choose from - Standard or bass-mounted speaker stand

OPTIONAL:

• skateboards that can be attached to the front of MBR basses or used to place a rolling drumfill,
• dedicated frames for suspending satellites.

SYSTEM TECHNICAL INFORMATION:

• The power of the VMS1815 system
  • 2x400W satellites
  • 2500W bass (it is possible to connect two additional satellites and load the power amplifier to 4 Ohm, obtaining the power of the set 4100W)

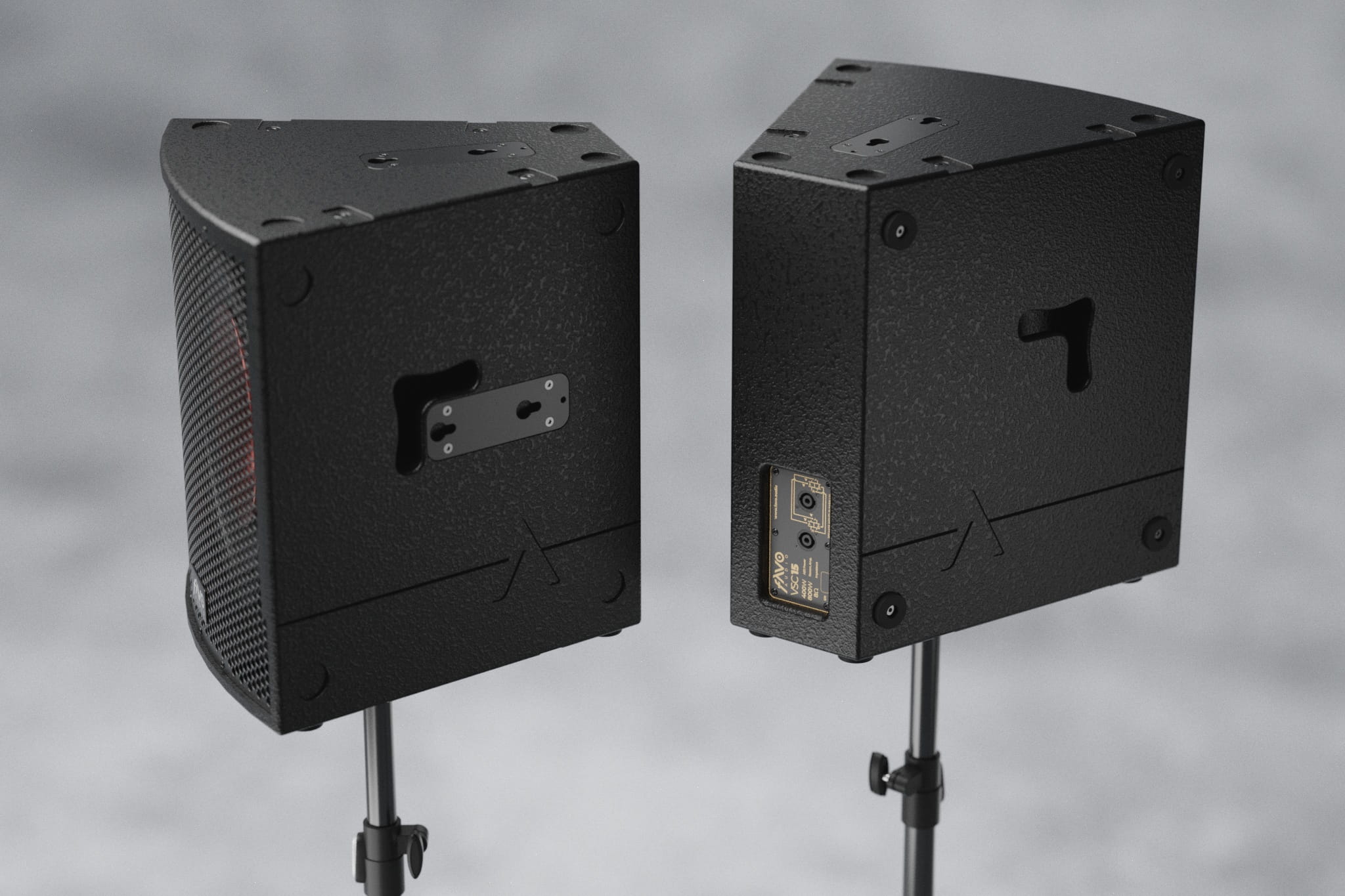

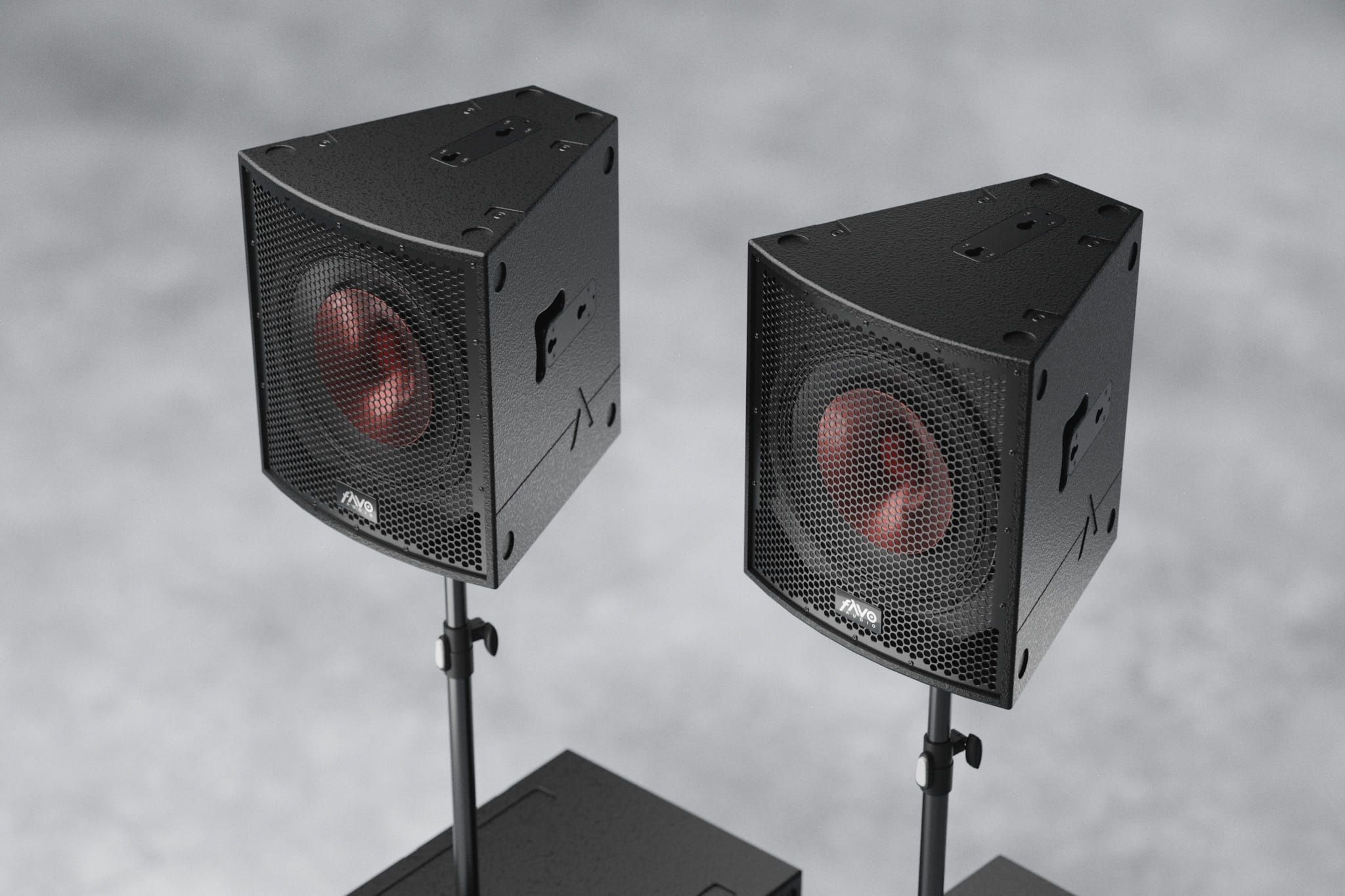

• VSC15F Satellite:
  • Power ( nominal): 400W@8Ohm
  • Speaker : coaxial, ferrite B&C 15"/3"LF+1.5"/3"HF
  • Frequency response (-3dB) : 80Hz - 18kHz
  • Efficiency (1W/1m) : 99dB
  • Dimensions : 510h x 467w x 445d
  • Weight : 24kg

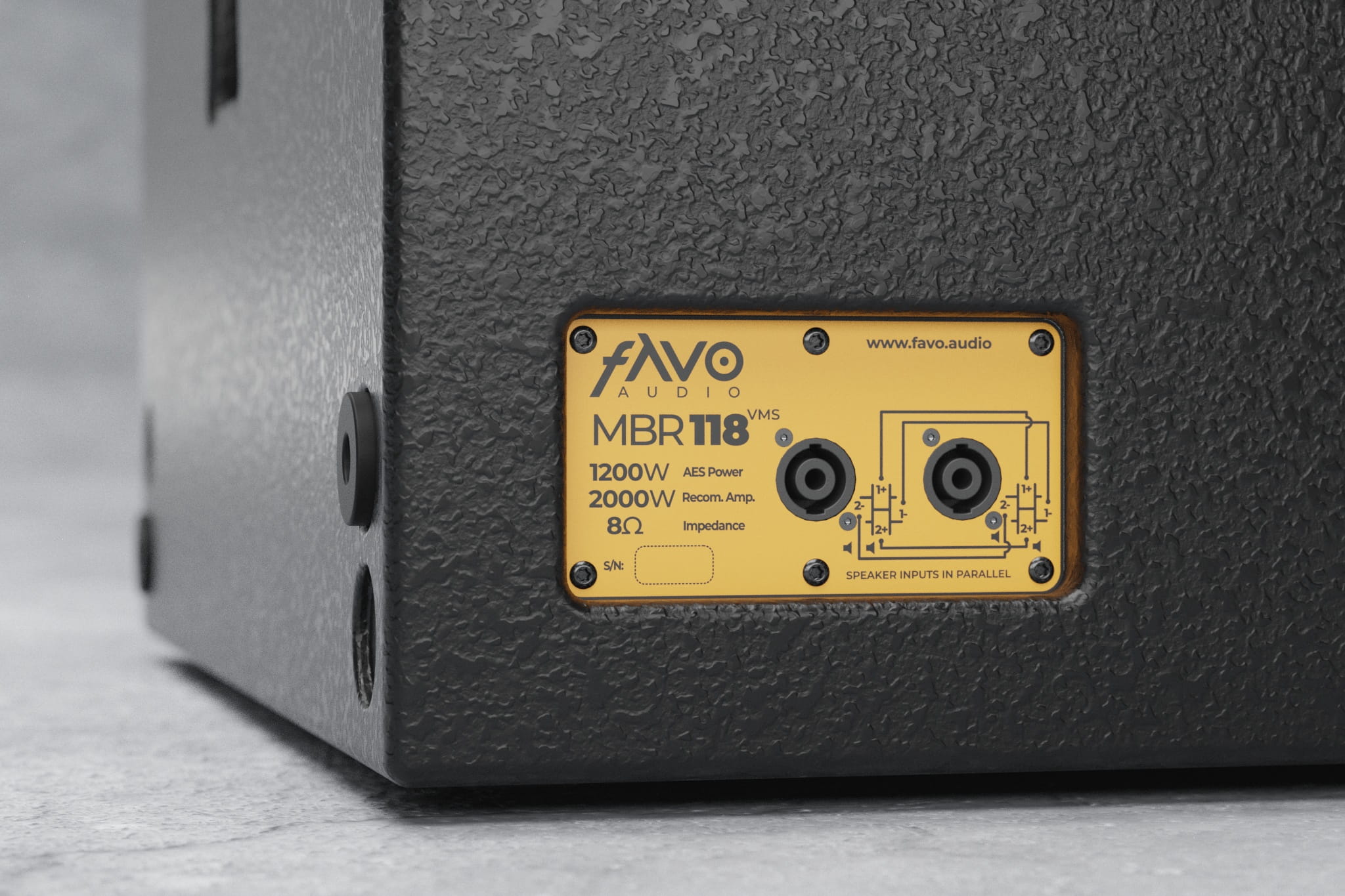

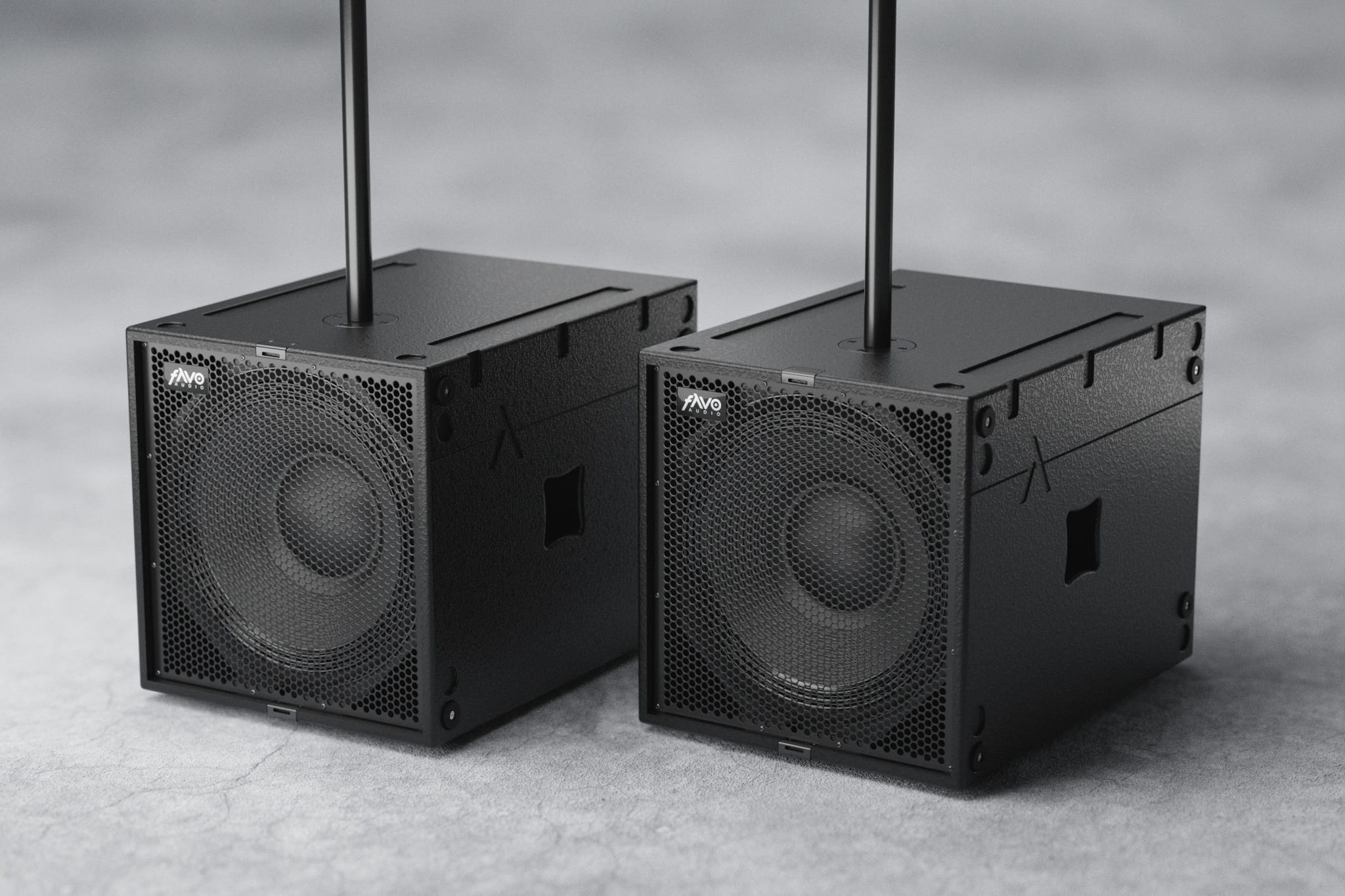

• Bass MBR118:
  • Power (nominal) : 1200W@8Ohm
  • Speaker : B&C 18"/4" with ferrite magnet and high Xmax
  • Frequency response (-3dB) : 40Hz - 115Hz
  • Efficiency (1W/1m/halfspace) : 97dB/103dB
  • Dimensions : 540h x 515w x 720d
  • Weight : 44kg

3-YEAR WARRANTY.

NAW provides a 3-year warranty on the entire sound system and ensures the fastest possible technical support in the event of a failure and post-warranty service.
