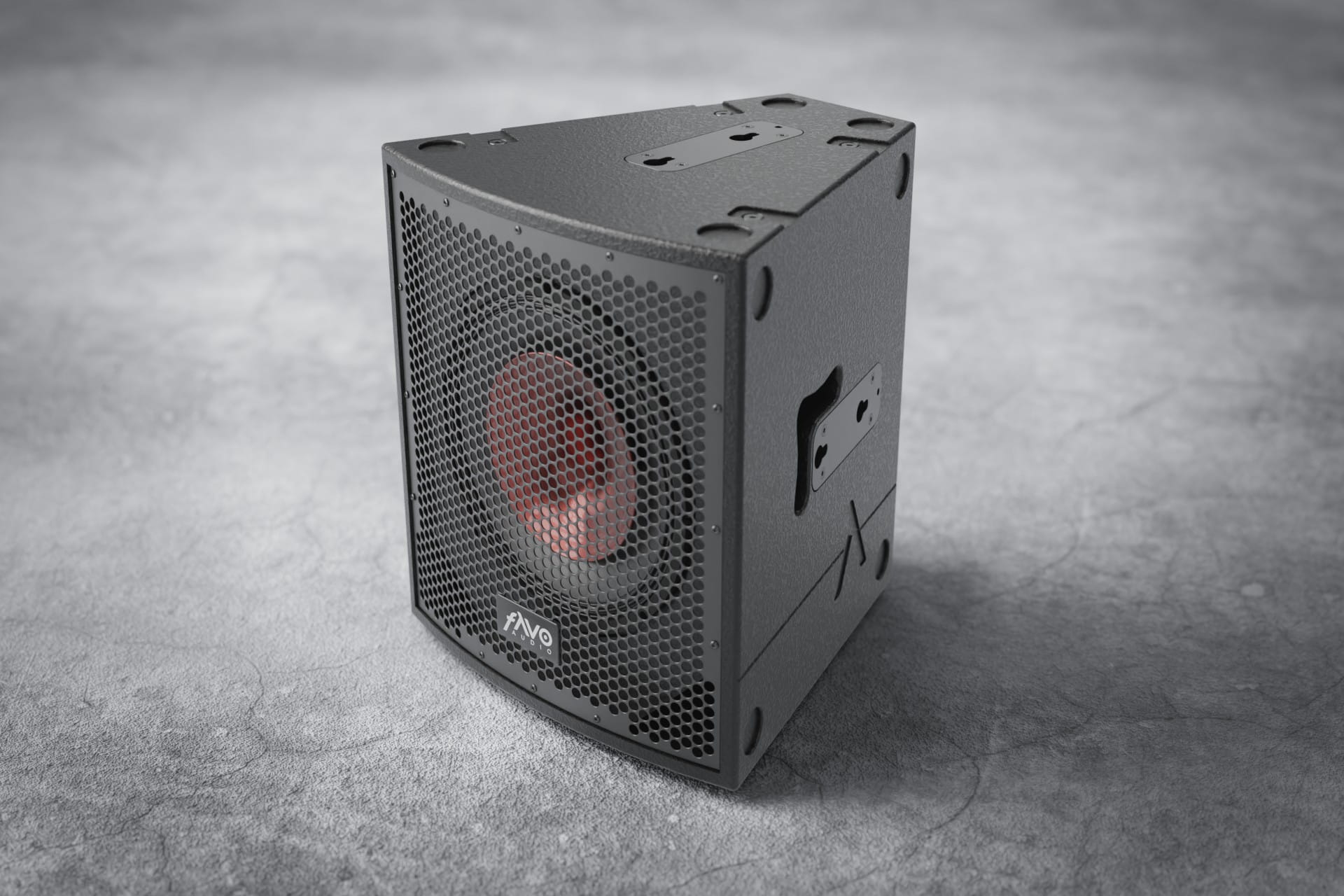

FAVO VSC12 multifunction satellite

PRODUCT DESCRIPTION:

NAW VSC12 satellite with a 12" coaxial speaker and a 1.4" driver and a lightweight neodymium magnet.

The VSC series are full-range satellite systems that allow for the creation of short, series-based PA systems with specific directivity. They are also excellent for infill, sidefill, and drumfill in conjunction with bass. Each element has a 40-degree dispersion between the side walls and the tweeter horn (40x60-degree dispersion, adjustable by 90 degrees). They are equipped with standard connectors that allow for easy assembly of two elements, providing 80 degrees of dispersion without comb filtering in the transition zone (acoustic crossover). Such filtering, which manifests as unpleasant distortion, is a characteristic of poorly matched PA modules.

APPLICATION:

• Live music
• Music from records
• Speech
• Installations

OPTIONAL:

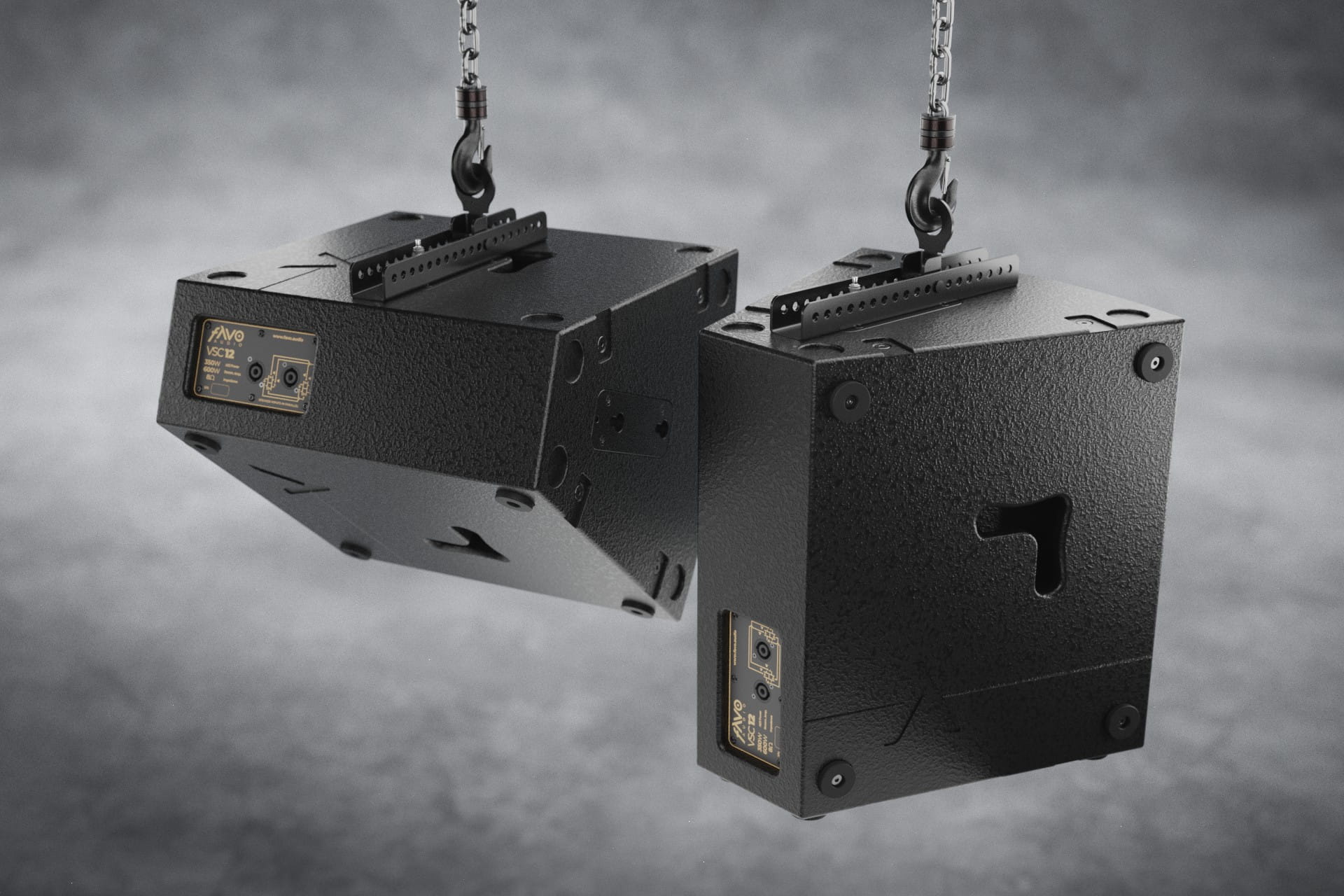

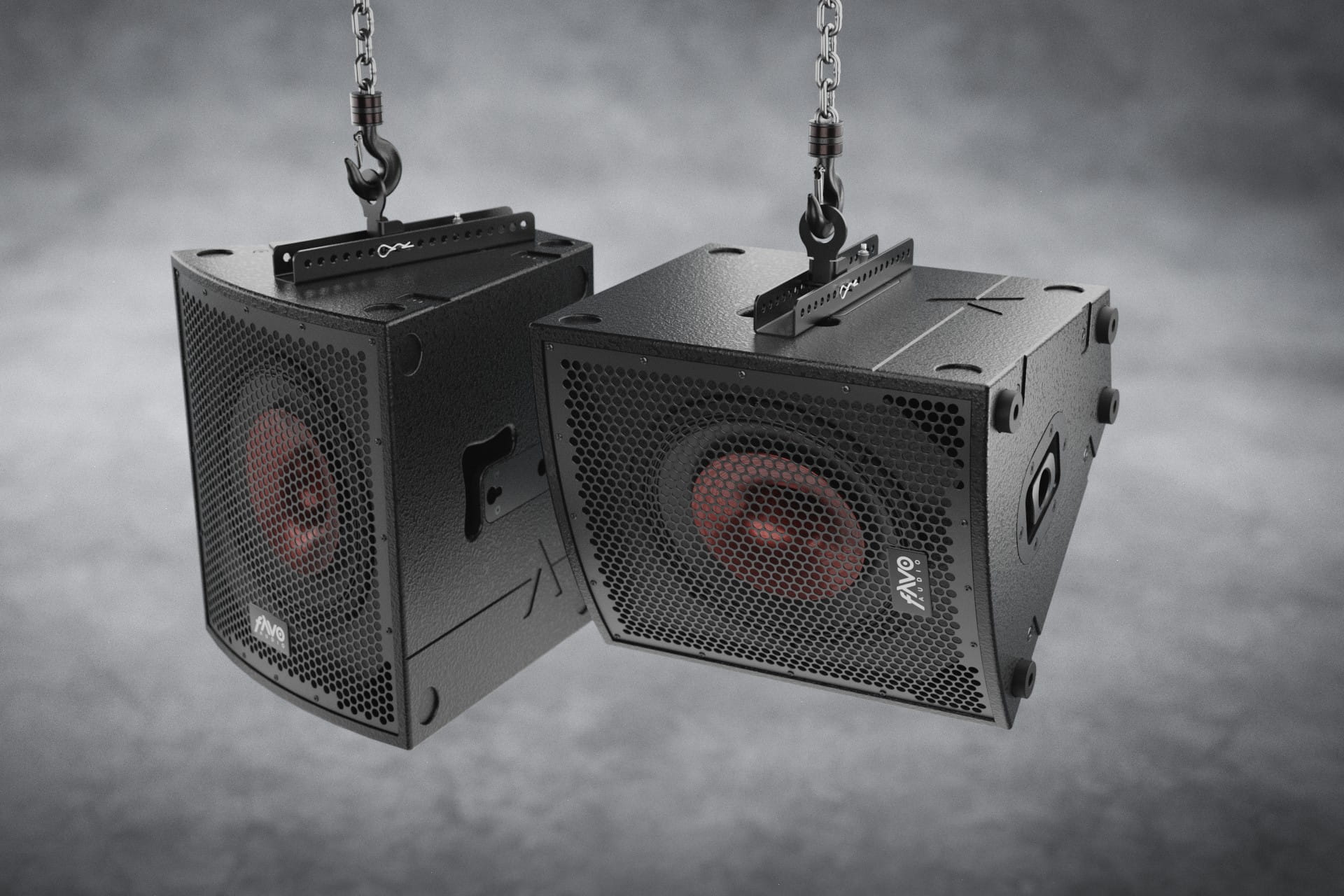

• frames for hanging vertically and horizontally,
• Cordura transport covers.

BASIC TECHNICAL DATA:

• Nominal power : 350W

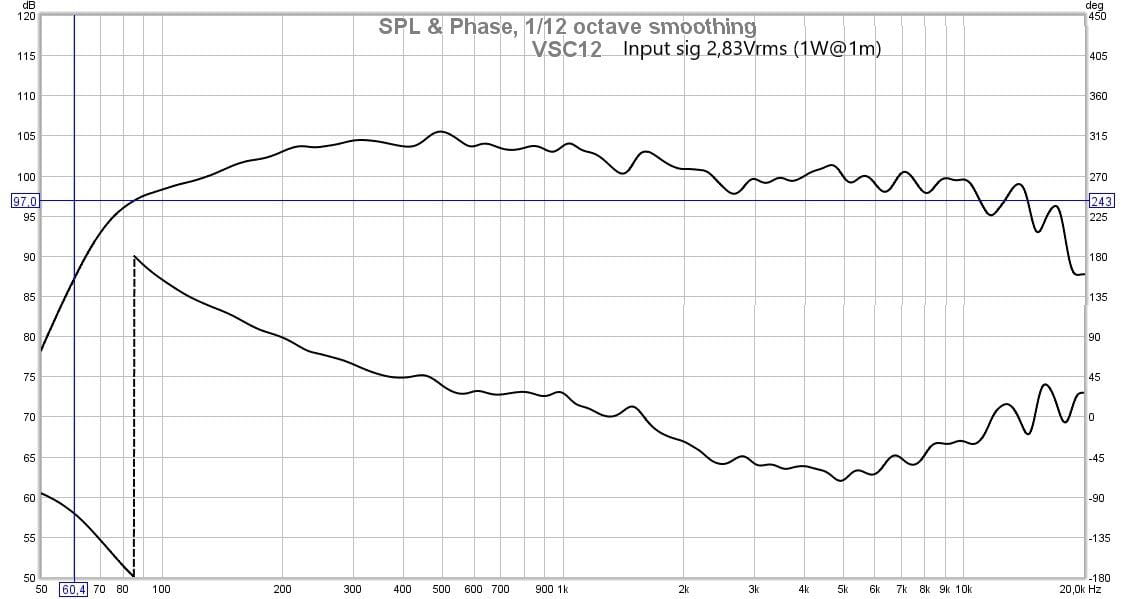

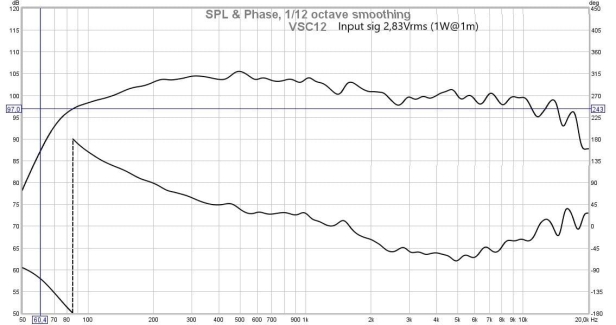

• SPL efficiency (1w/1m): 99dB
• Recommended amplifier power: 450-600W RMS
• Usable frequency range: 90Hz-18kHz
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically (can be changed by 90 degrees)
• Maximum SPL (peak CF6dB): 130dB
• Maximum SPL under long continuous load: 124dB
• Speakers: B&C Speakers 12" coaxial neodymium with 3" voice coil, 1.4" exit driver with 3" voice coil, common magnet
• Impedance: 8Ω

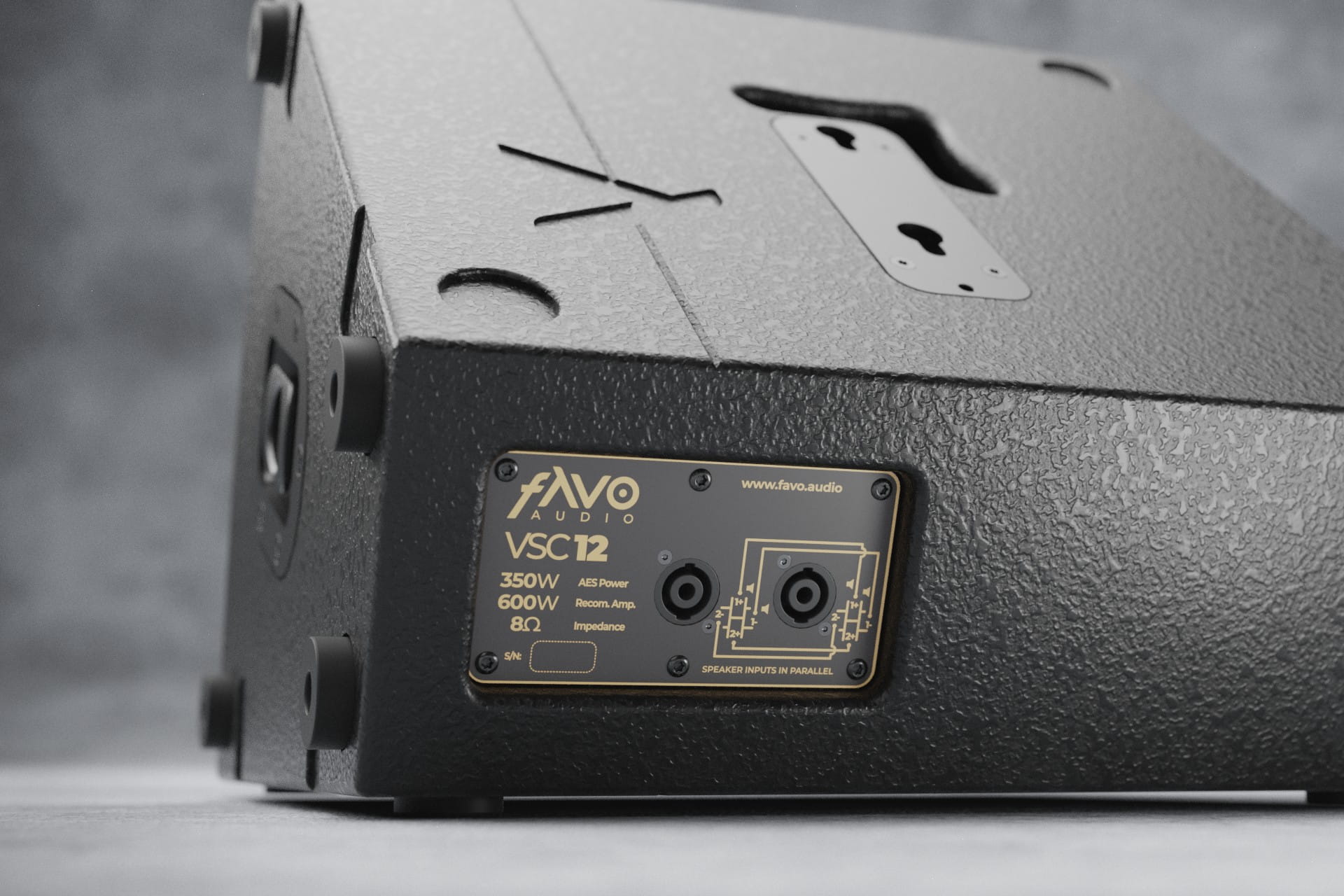

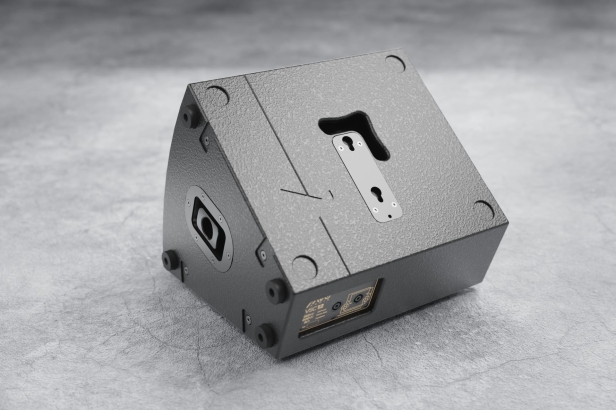

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 462mm x 417mm x 400mm
• Weight : 18kg
