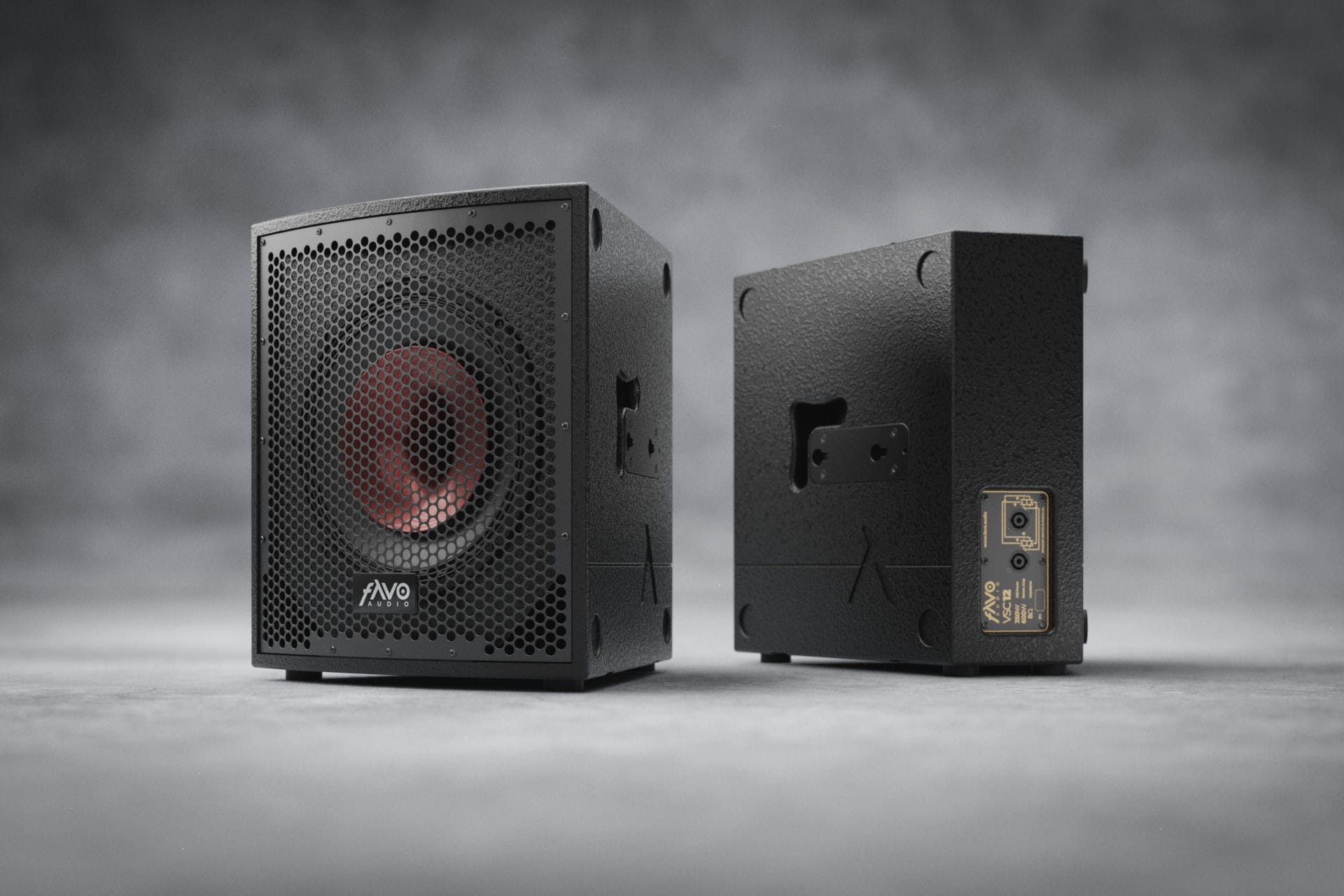

FAVO VSC12F multifunction satellite

PRODUCT DESCRIPTION:

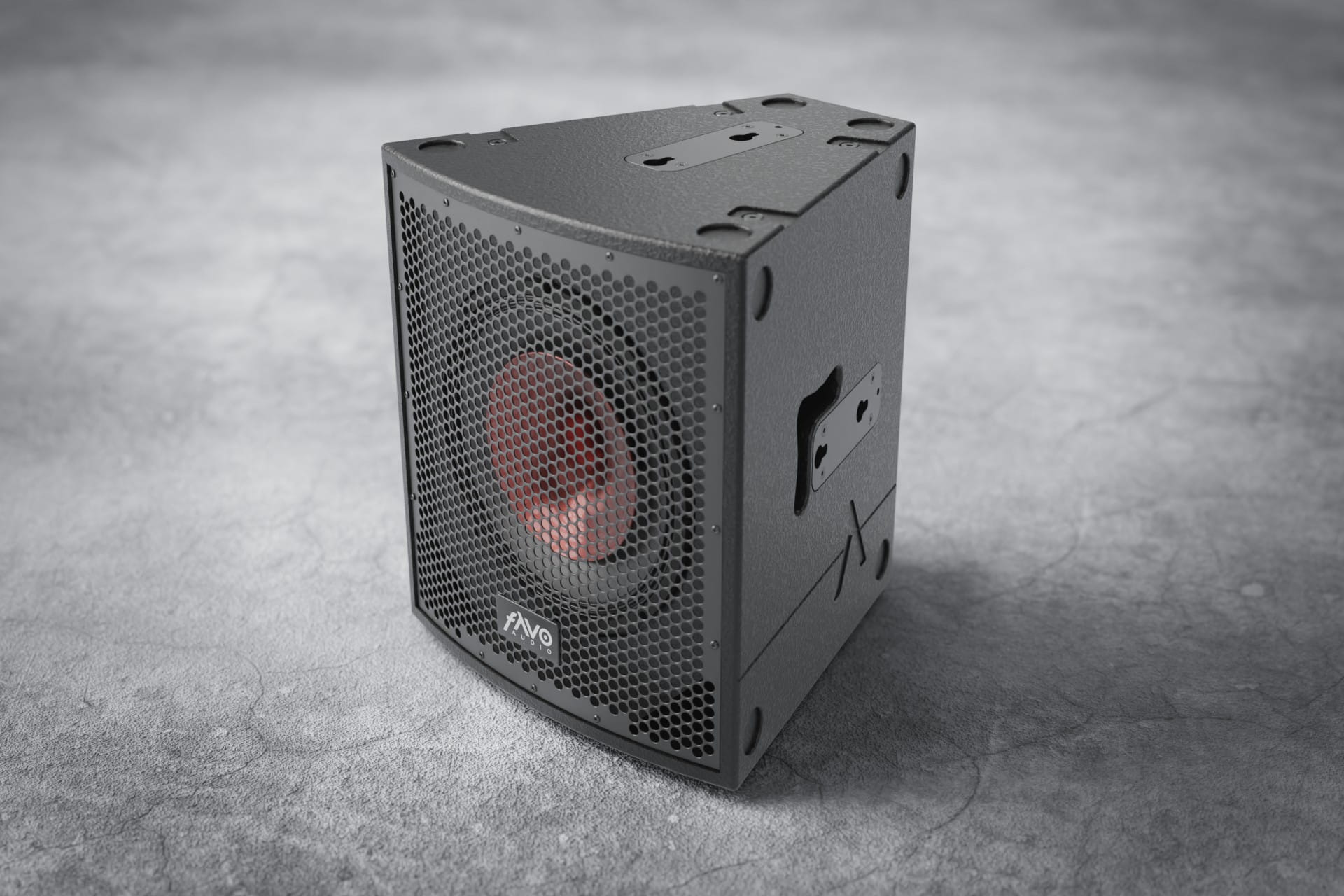

The NAW VSC12f is a satellite with a 12" coaxial speaker and a 1.4" exit driver and a common ferrite magnet.

Designed specifically for wideband reproduction and controlled directivity of 60 x 40 degrees, the centrally positioned driver with a 3" voice coil ensures low distortion at very high power and SPL.

The VSC series are full-range satellite systems that allow for the creation of short, series-based PA systems with specific directivity. They are also excellent for infill, sidefill, and drumfill applications combined with bass. Each element has a 40-degree dispersion between the side walls and the tweeter waveguide, providing a 40 x 60-degree dispersion pattern, adjustable by 90 degrees. Optionally, they are equipped with connectors that allow for easy assembly of two elements, providing 80 degrees of dispersion without comb filtering in the acoustic crossover zone. Such filtering, which manifests as unpleasant distortion, is a characteristic of poorly matched PA modules.

APPLICATION:

• Live music
• Music from records
• Speech
• Installations

OPTIONAL:

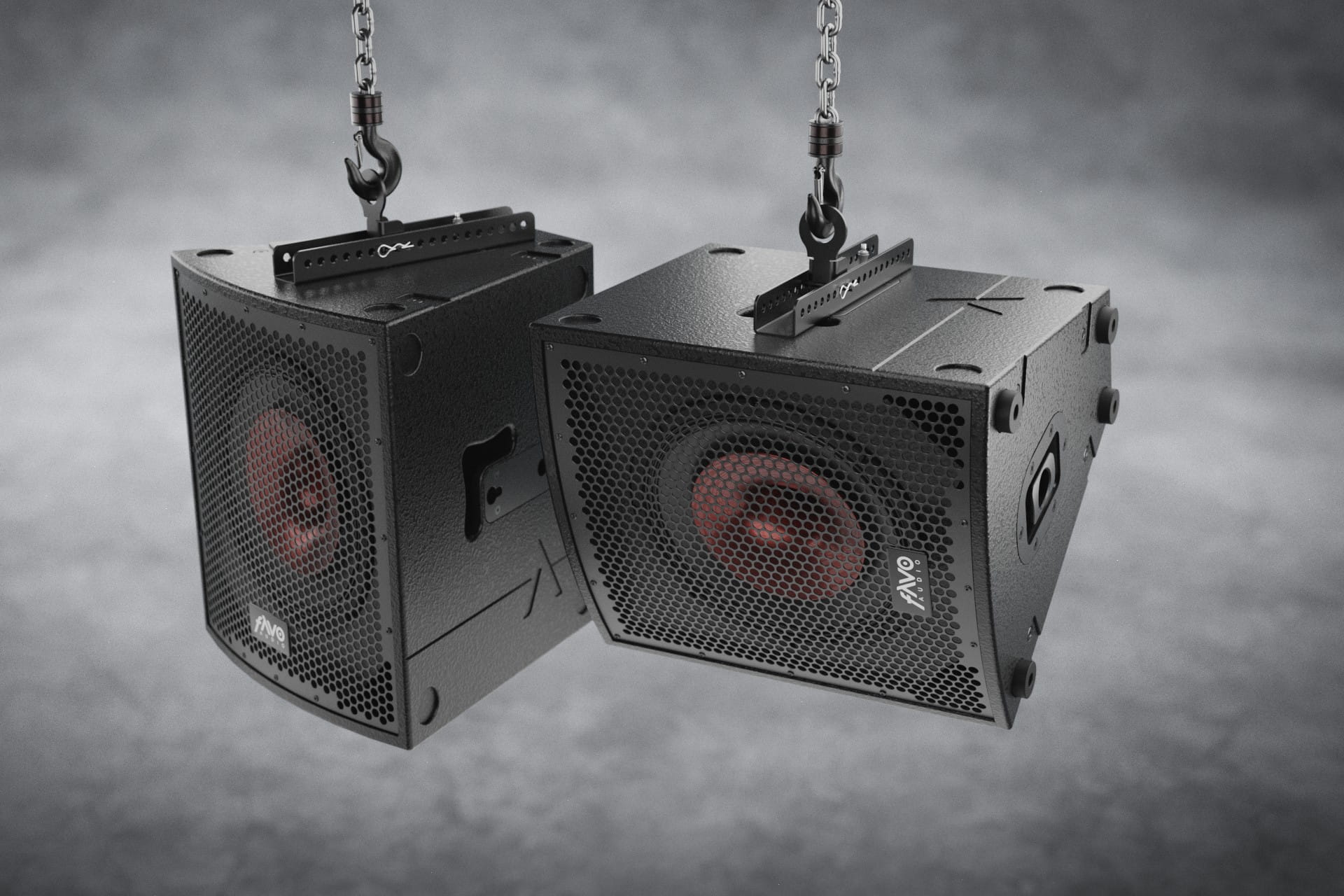

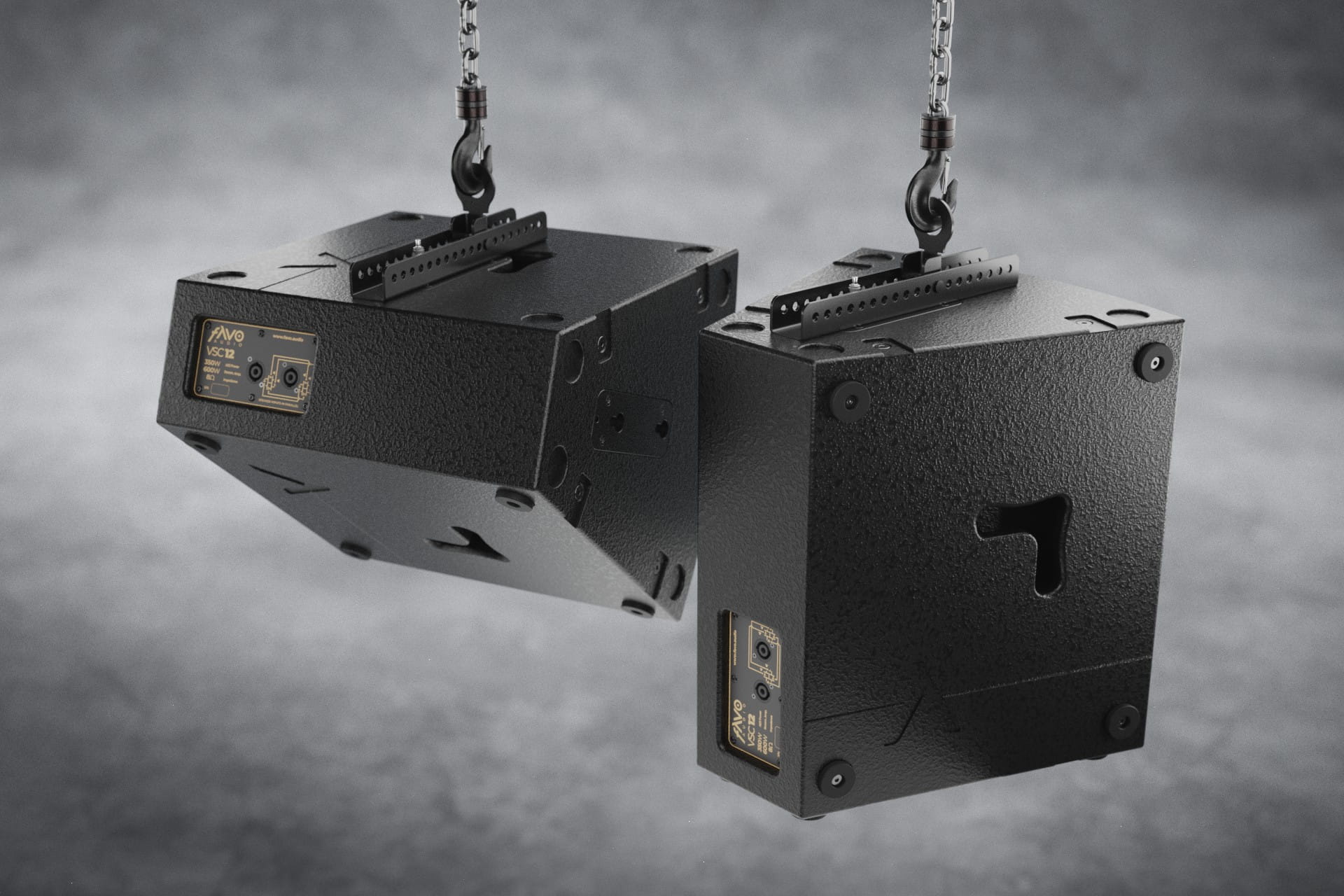

• frames for vertical and horizontal suspension with connecting sheets,

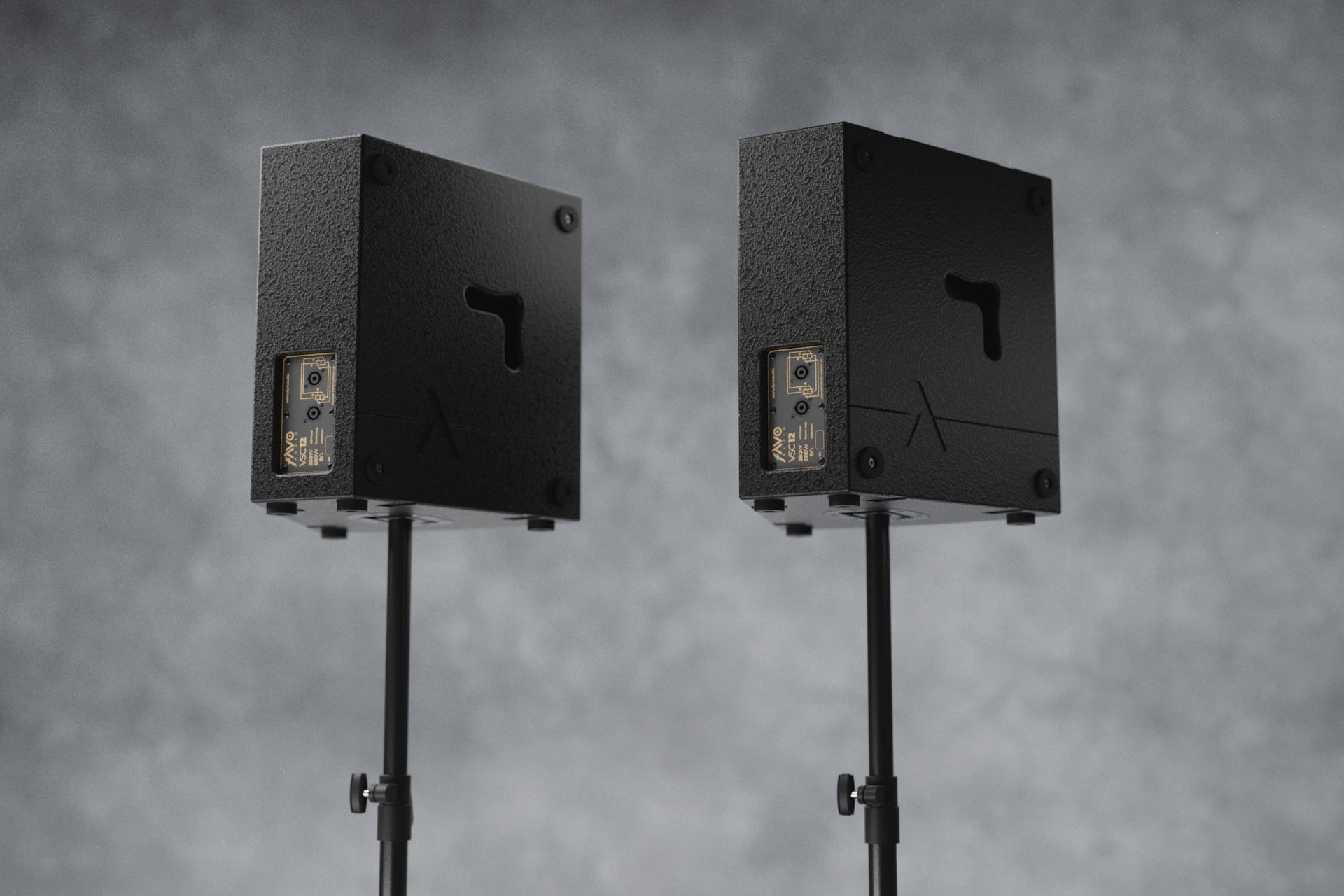

• Y adapters for placing two pieces on a tripod

BASIC TECHNICAL DATA:

• Nominal power : 350W
• SPL efficiency (1w/1m): 98dB
• Recommended amplifier power: 450-600W RMS

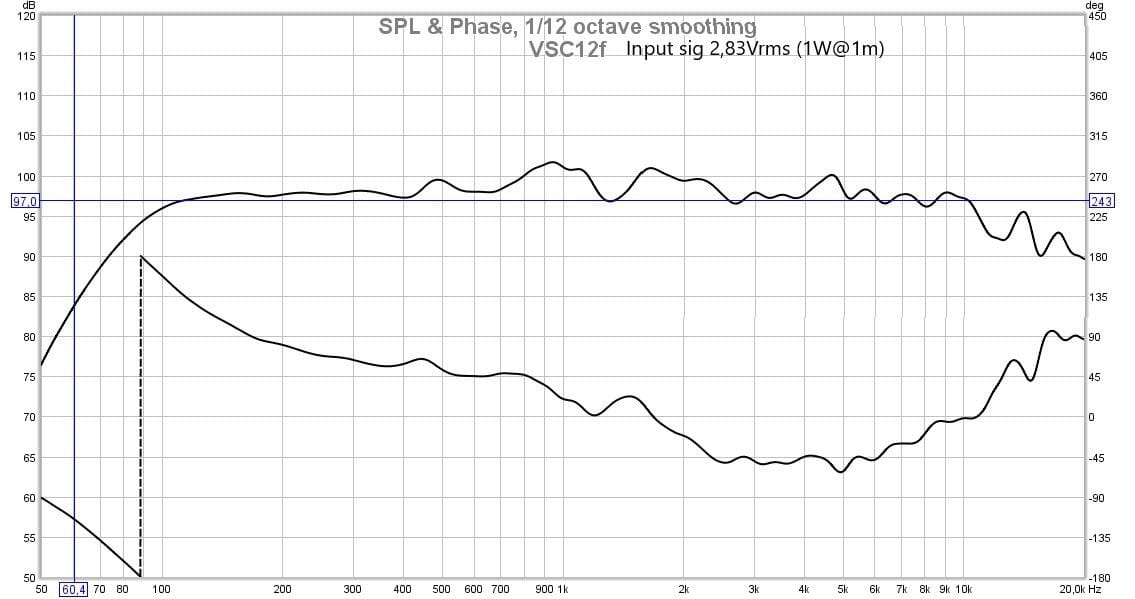

• Usable frequency range: 90Hz-18kHz
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically (can be changed by 90 degrees)
• Maximum SPL (peakCF6dB): 129dB
• Maximum SPL under long continuous load: 123dB
• Speakers: B&C Speakers coaxial 12" ferrite with 3" voice coil, 1.4" exit driver with 3" voice coil, common magnet
• Impedance: 8Ω

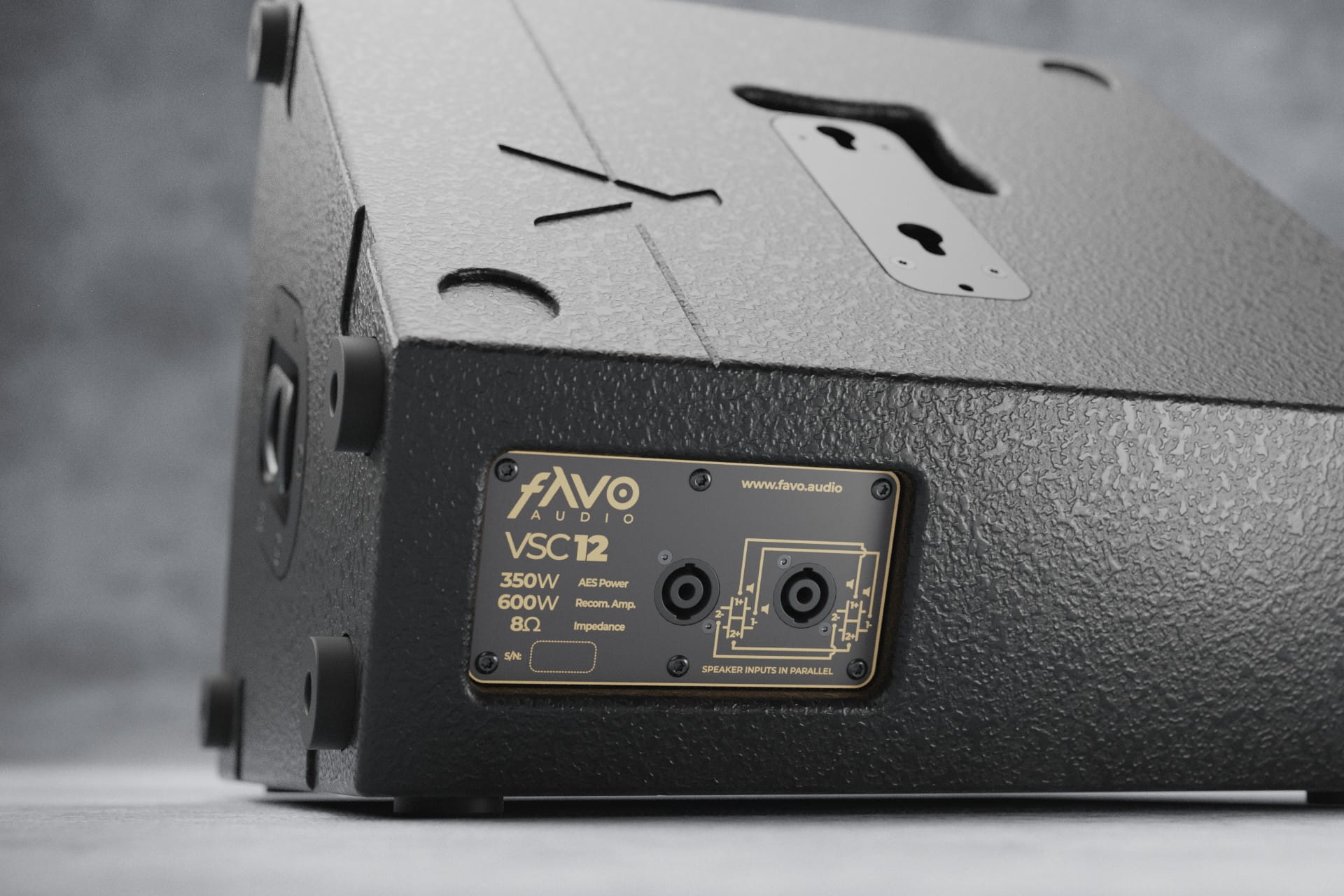

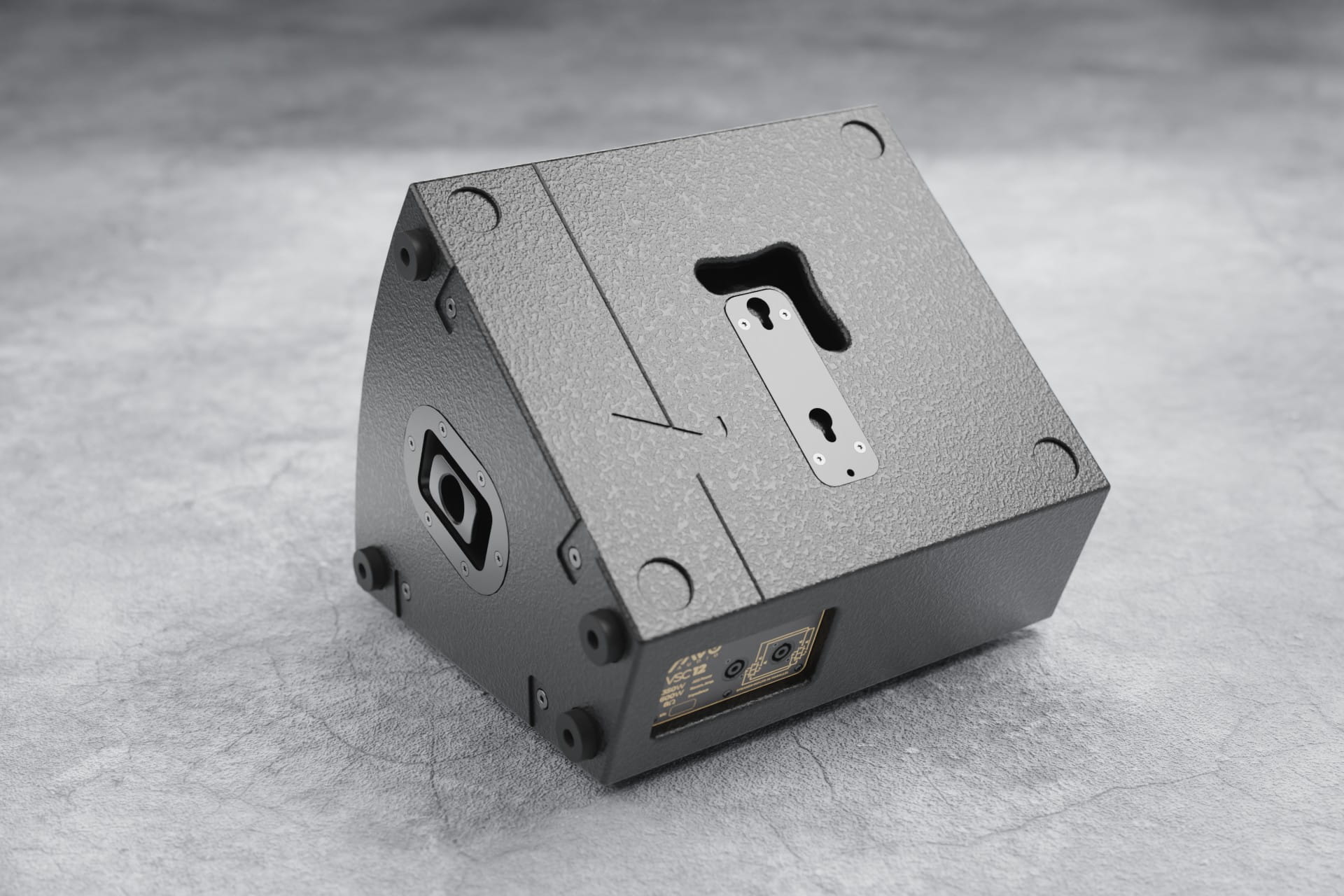

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 462mm x 417mm x 400mm
• Weight : 21kg
