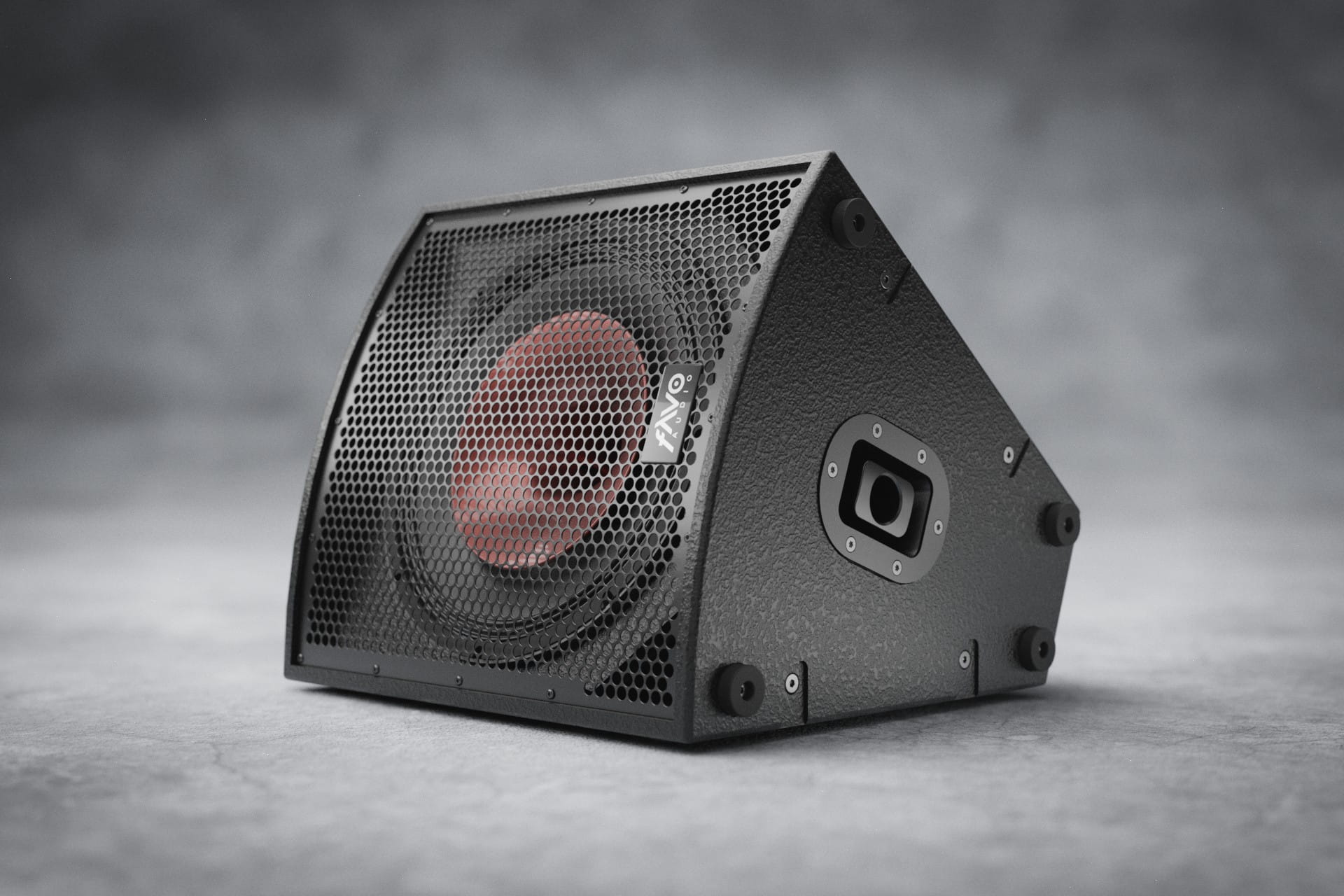

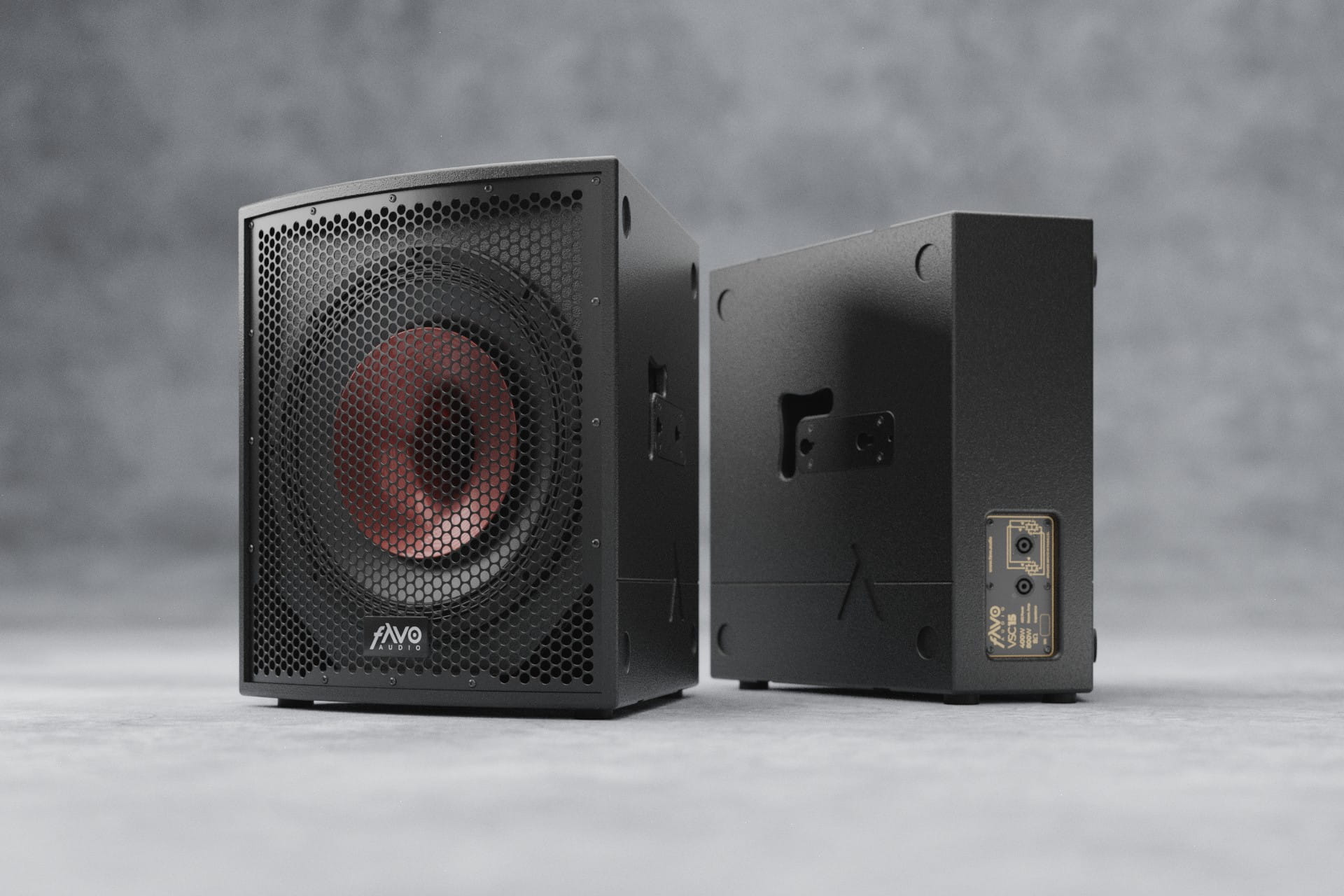

FAVO VSC15 multifunctional satellite

PRODUCT DESCRIPTION:

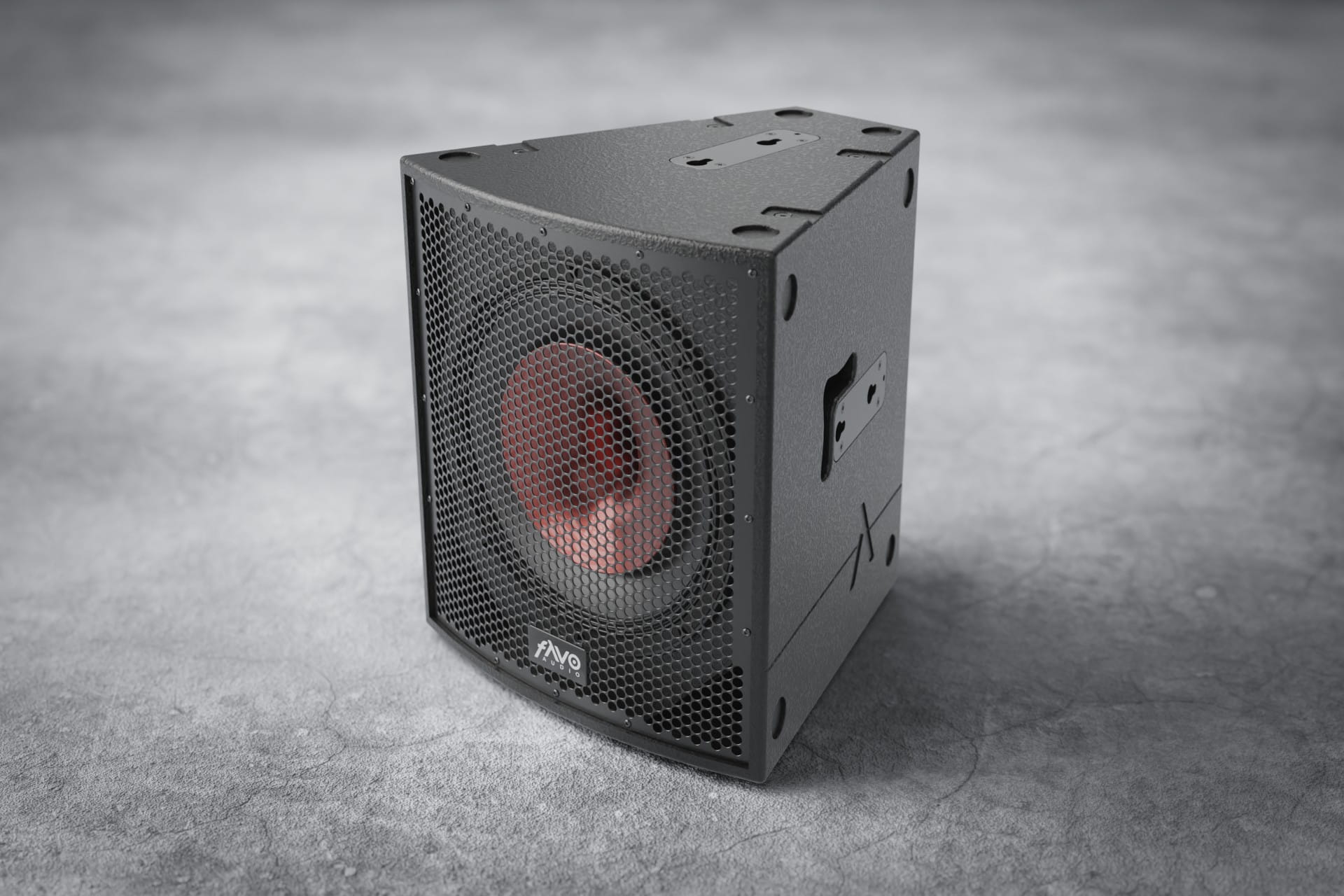

NAW VSC15 satellite with a 15"/3" coaxial speaker and a 3" voice coil, 1.4" exit driver and a neodymium magnet.

The VSC series are full-range satellite systems that allow for the creation of short, series-based PA systems with specific directivity. They are also excellent for infill, sidefill, and drumfill in conjunction with bass. Each element has a 40-degree dispersion between the side walls and the tweeter horn, resulting in a 40x60-degree dispersion. They are equipped with standard connectors that allow for easy assembly of two elements, providing 80 degrees of dispersion without comb filtering at the transition between sound sources (acoustic crossovers). Such filtering, which manifests as unpleasant high-frequency distortion, is a characteristic of poorly matched PA modules.

APPLICATION:

• Live music
• Music from records
• Speech
• Installations

OPTIONAL:

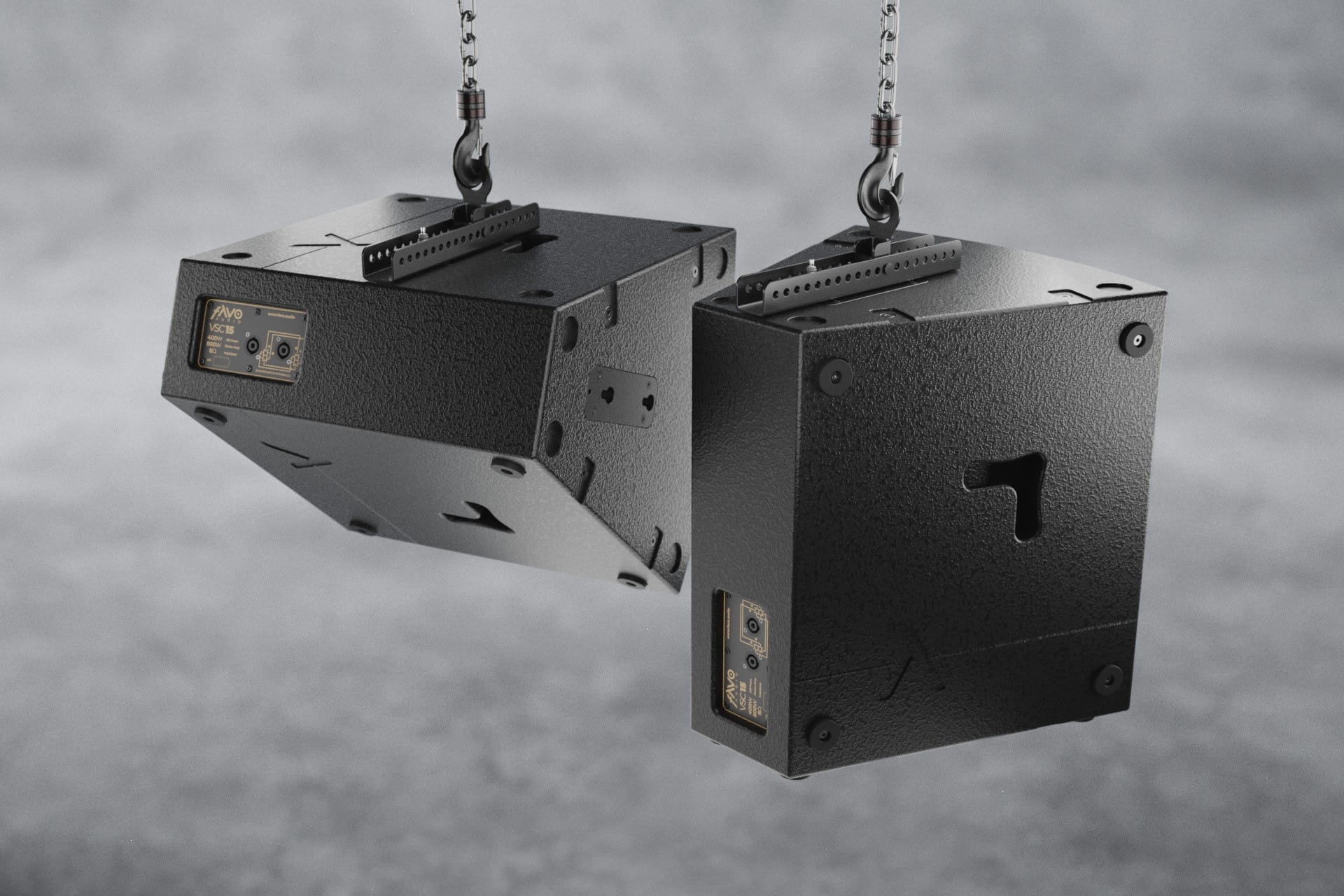

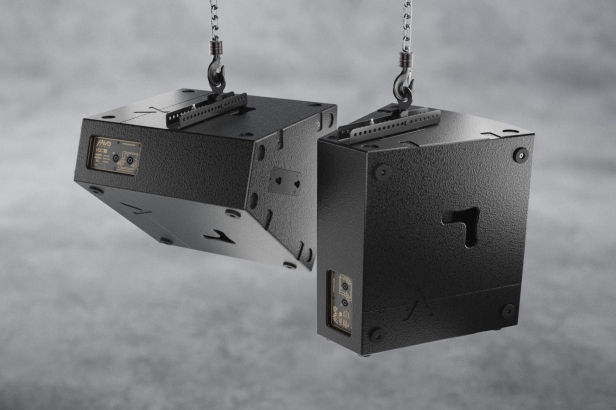

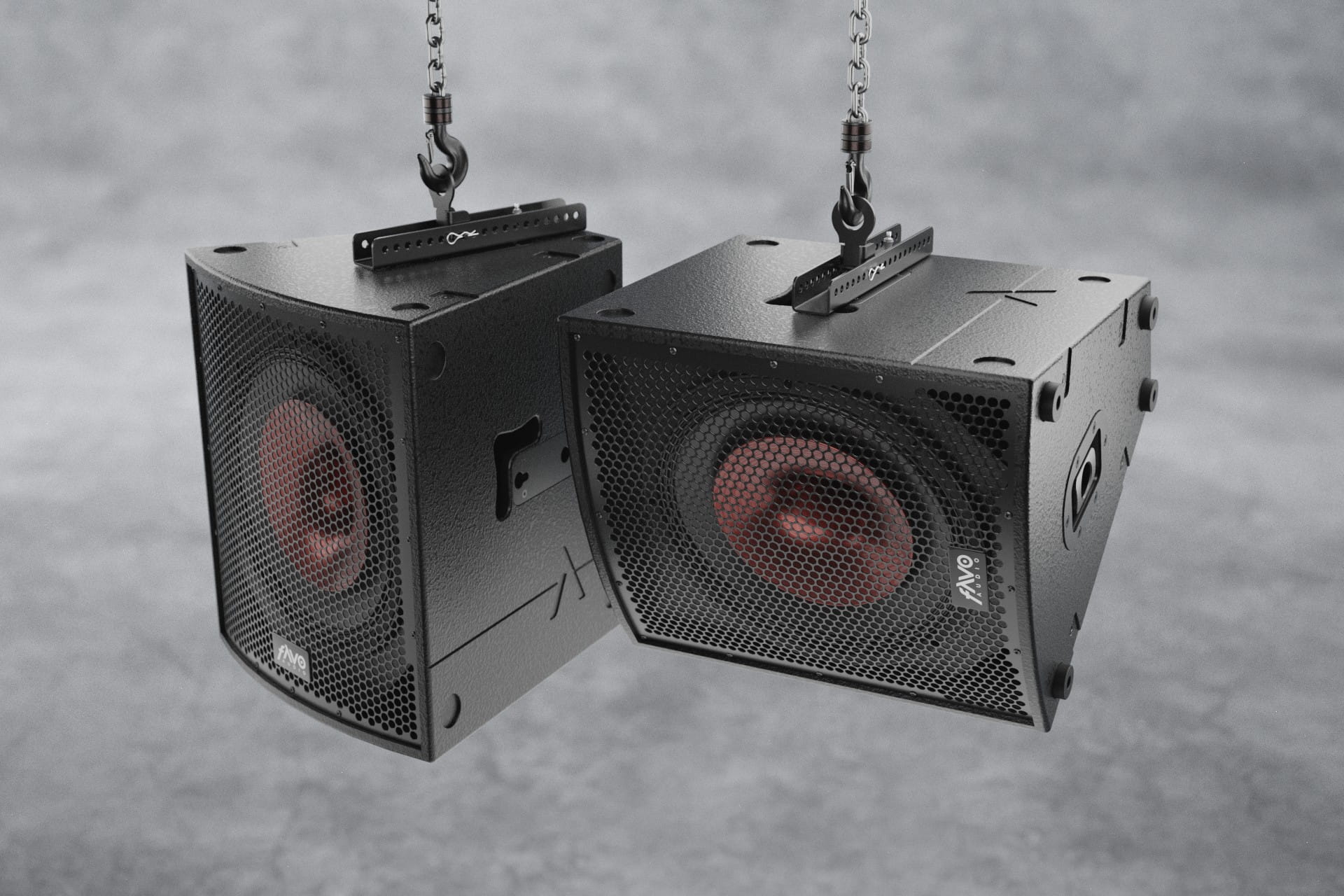

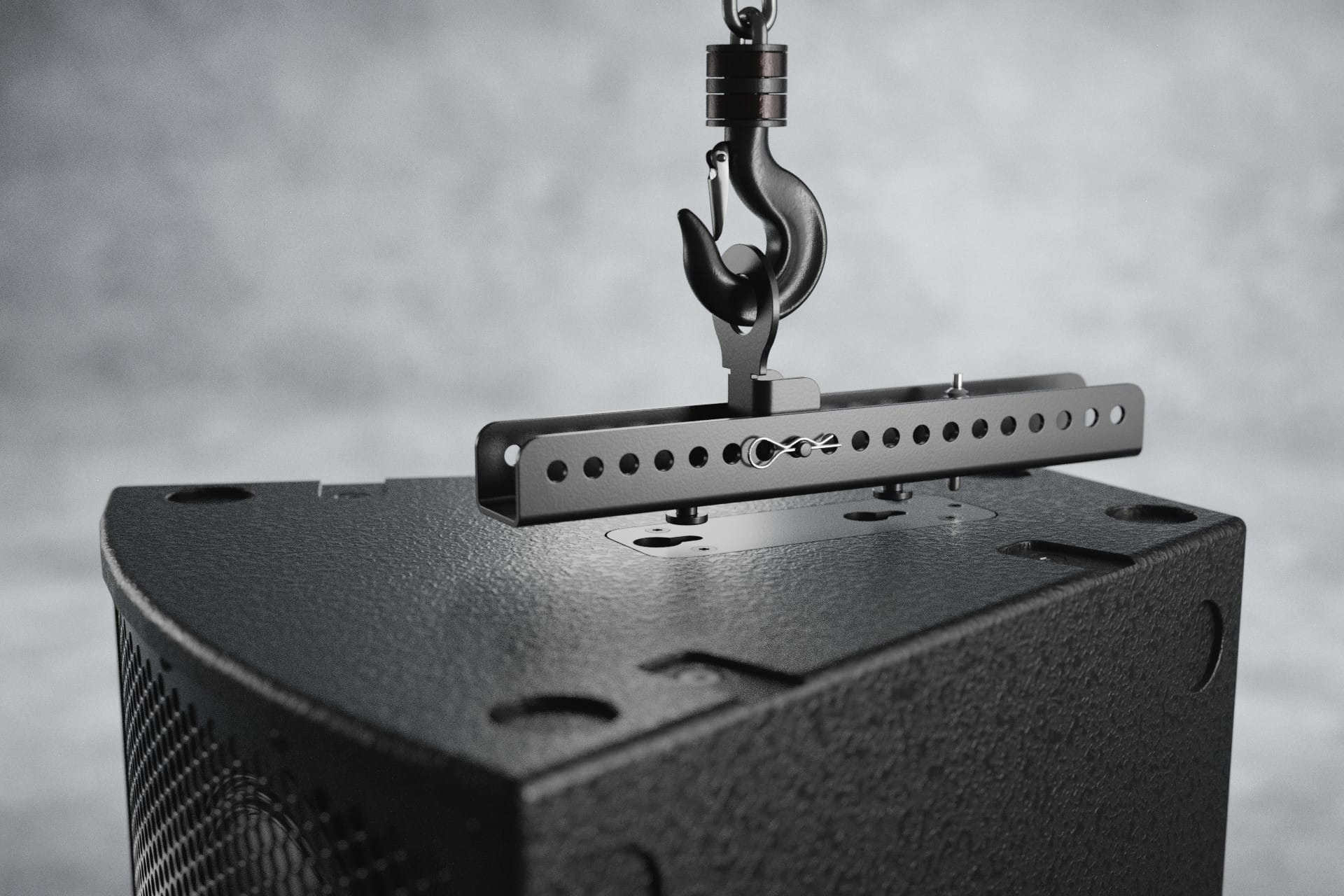

• frames for hanging vertically and horizontally

BASIC TECHNICAL DATA:

• Nominal power: 400W

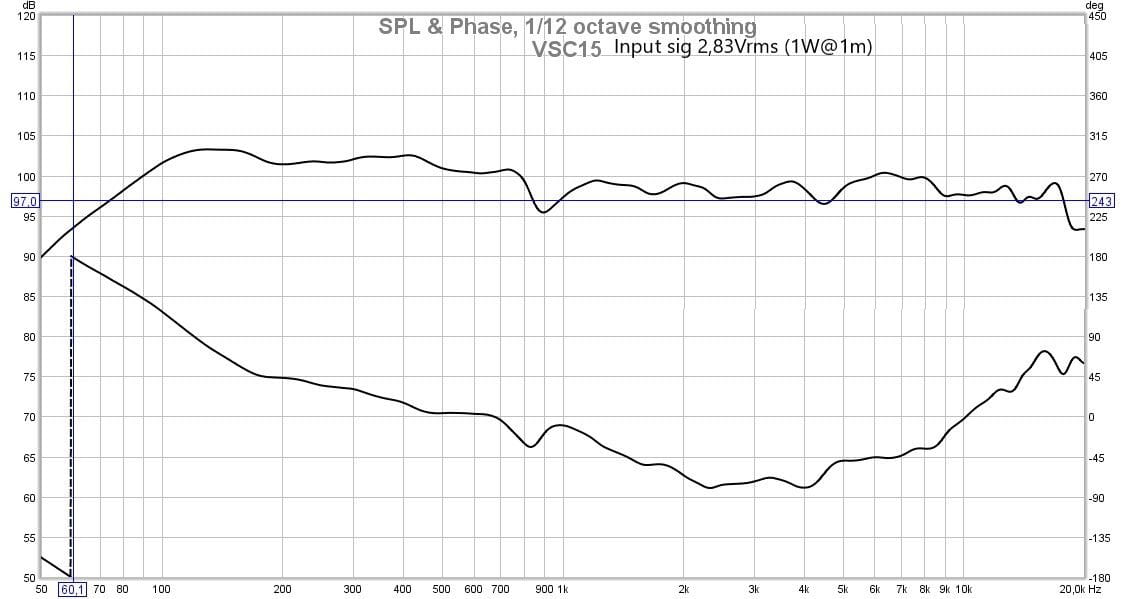

• SPL efficiency (1w/1m): 100dB
• Recommended amplifier power: 600-800W RMS
• Usable frequency range: 80Hz-18kHz
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically (can be changed by 90 degrees)
• Maximum SPL (peak CF6dB): 132dB
• Maximum SPL under long continuous load: 126dB
• Speakers: B&C Speakers coaxial 15" neodymium with 3" voice coil, 1.4" exit driver with 3" voice coil, common magnet

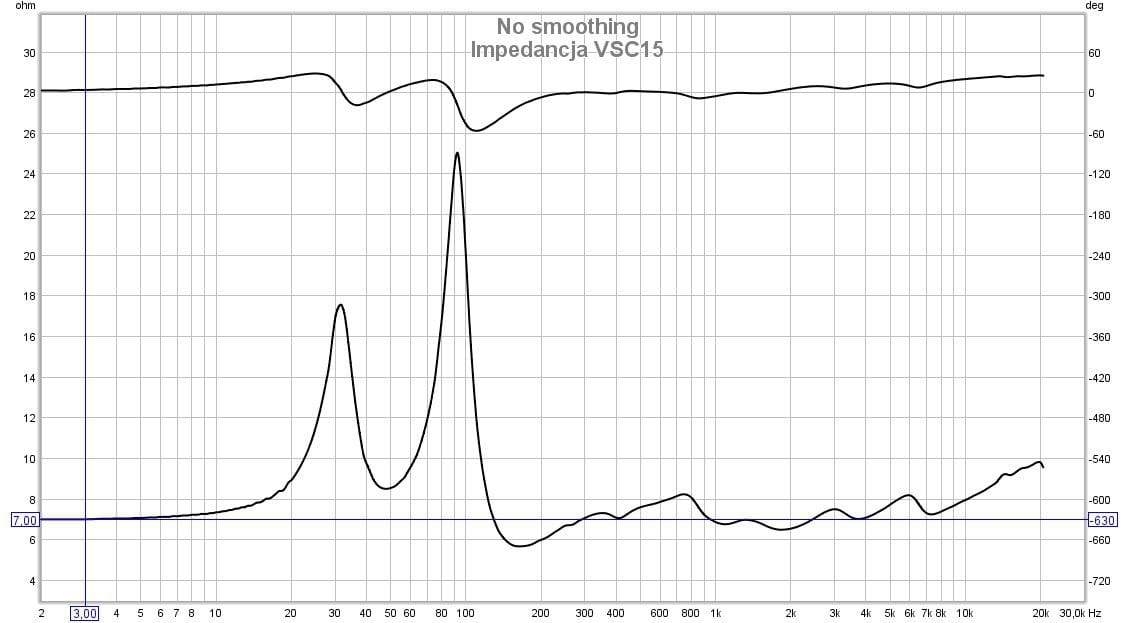

• Impedance: 8Ω

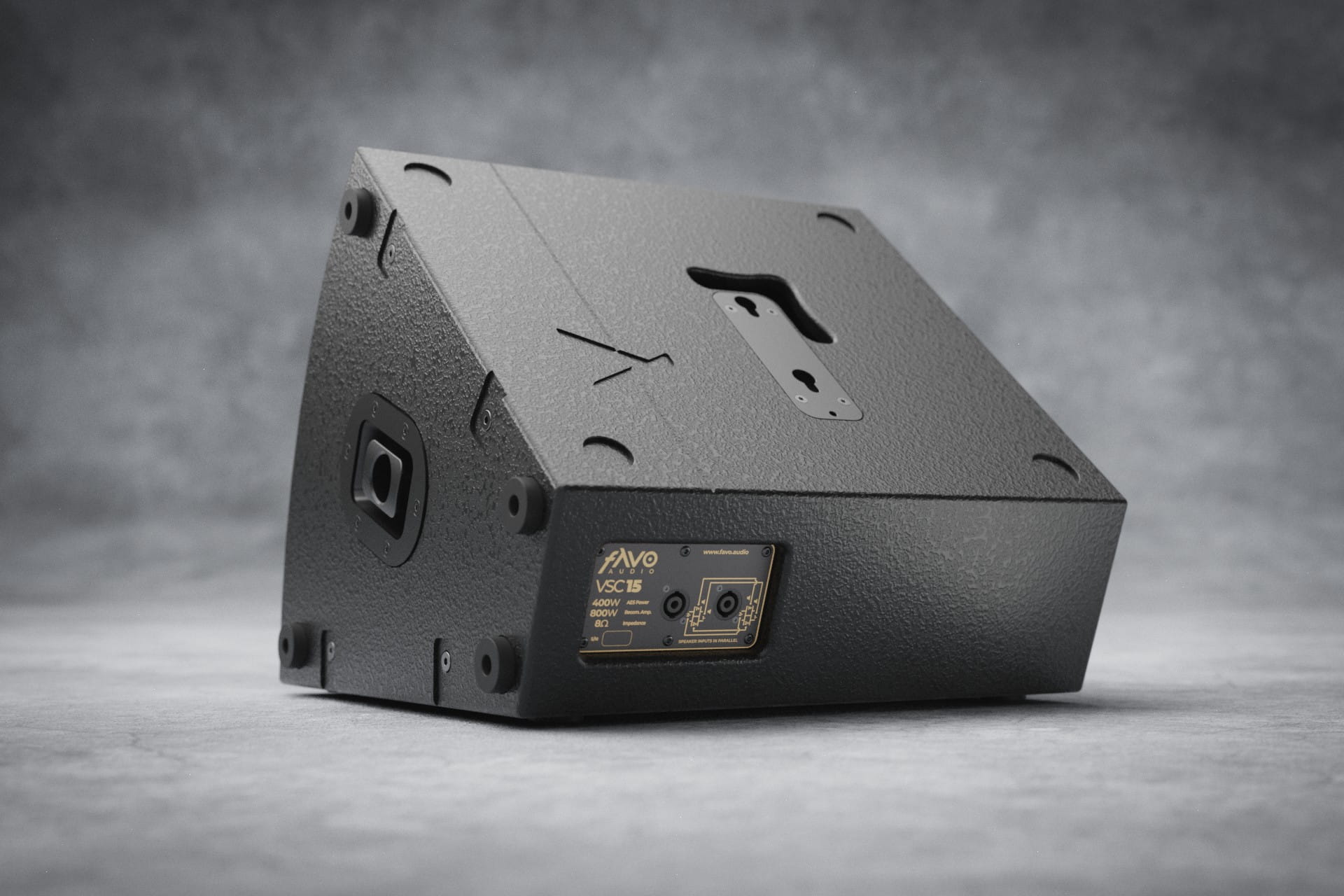

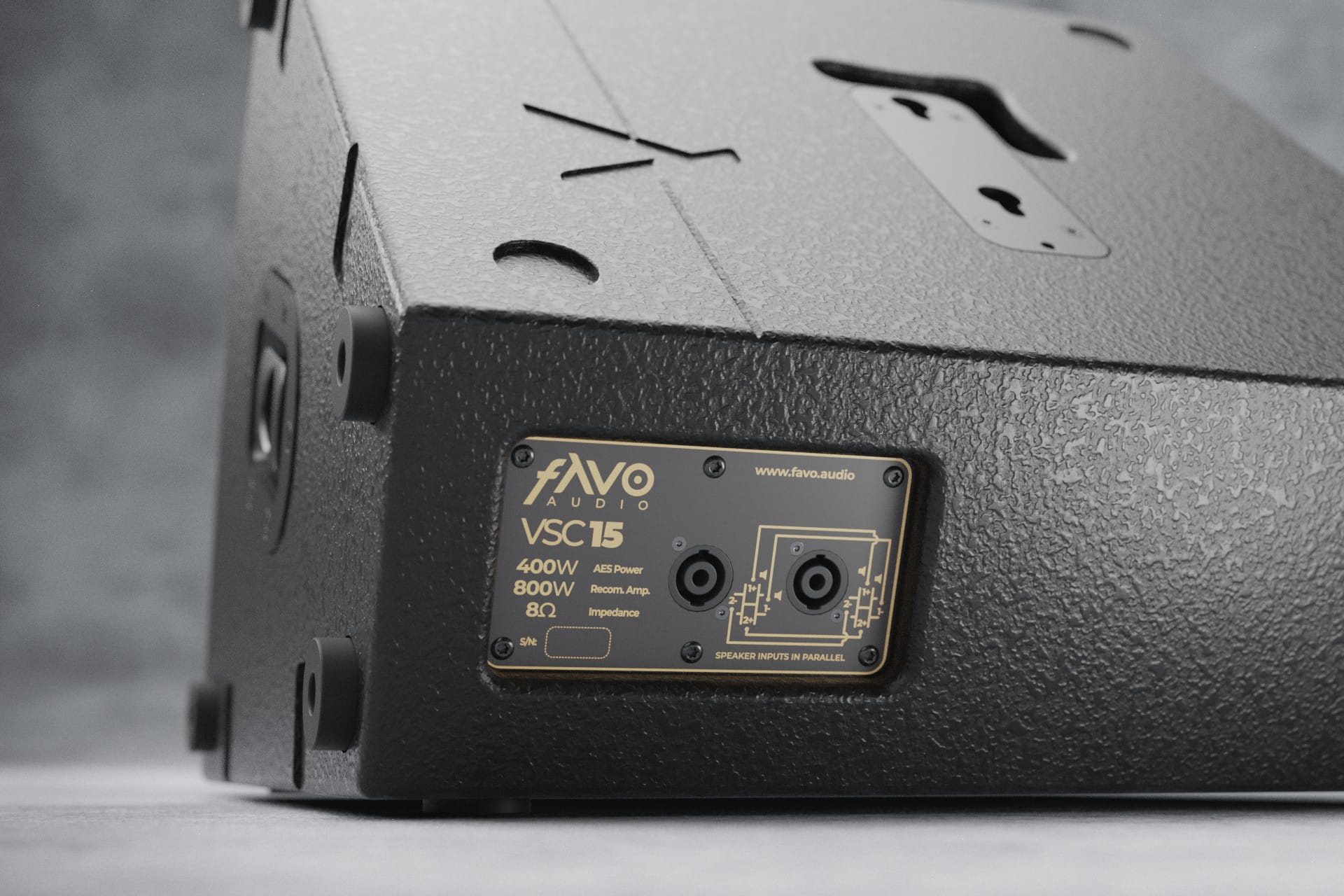

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 510mm x 470mm x 465mm, 40 degrees between side walls
• Weight : 21 kg
