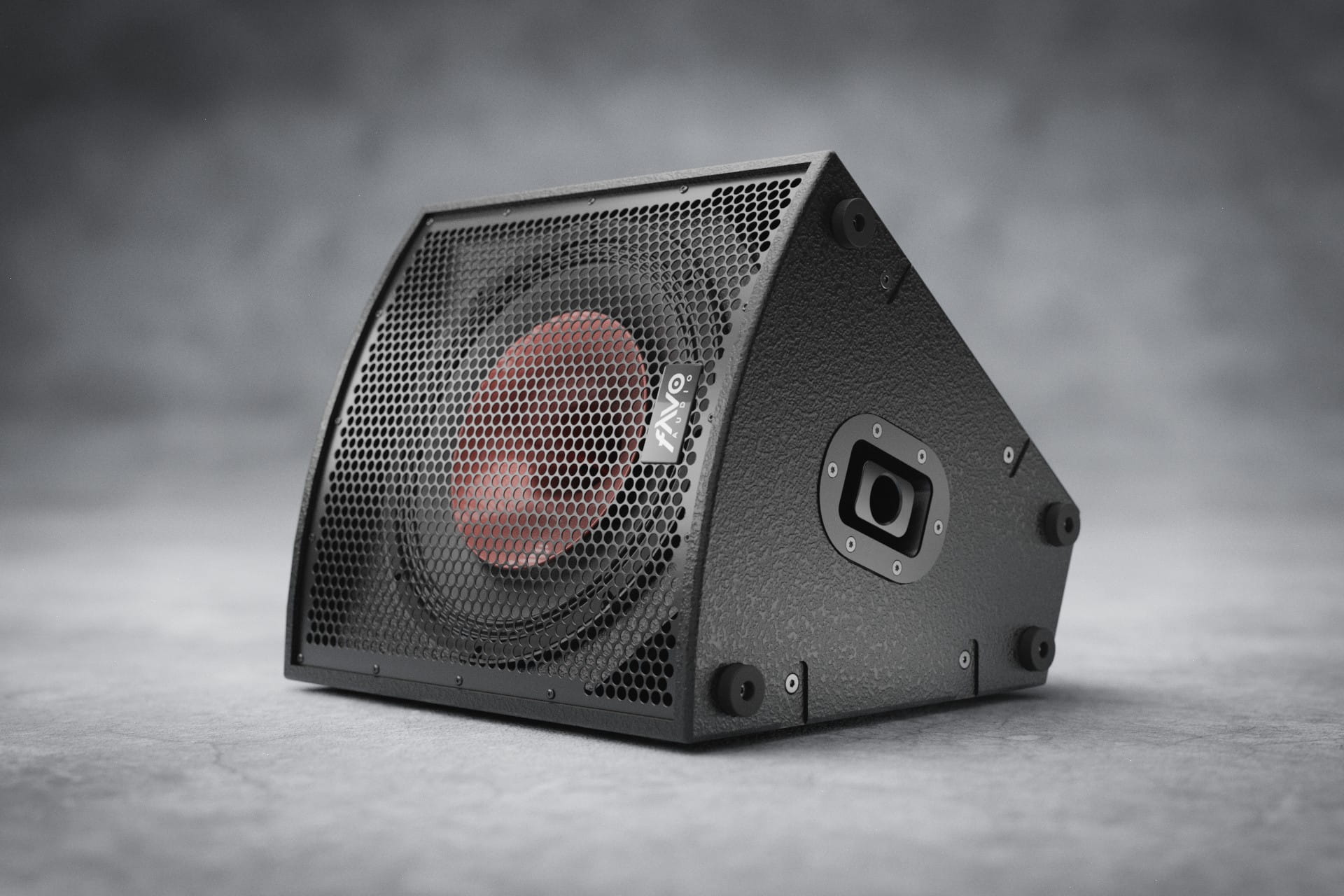

FAVO VSC15F multifunction satellite

PRODUCT DESCRIPTION:

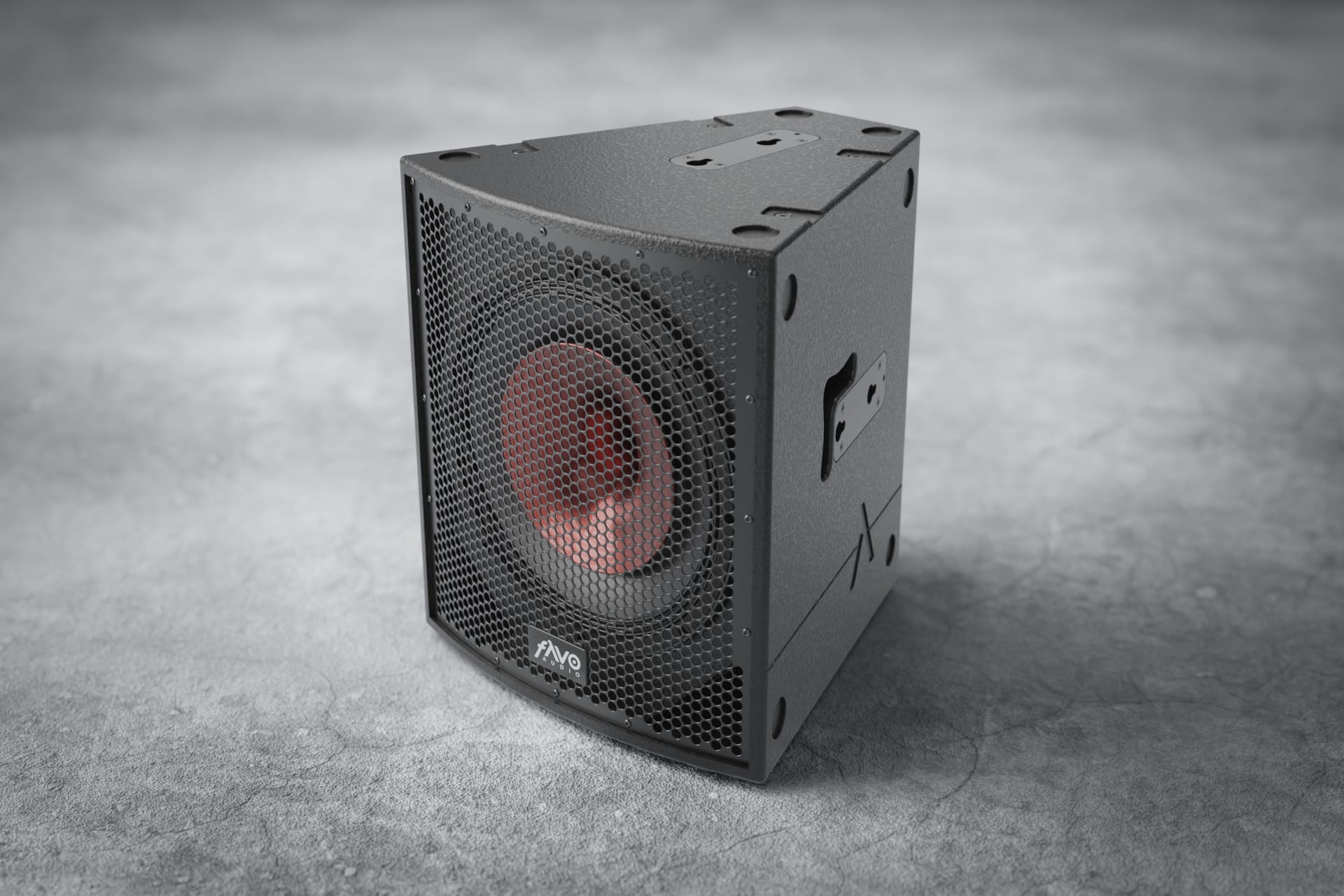

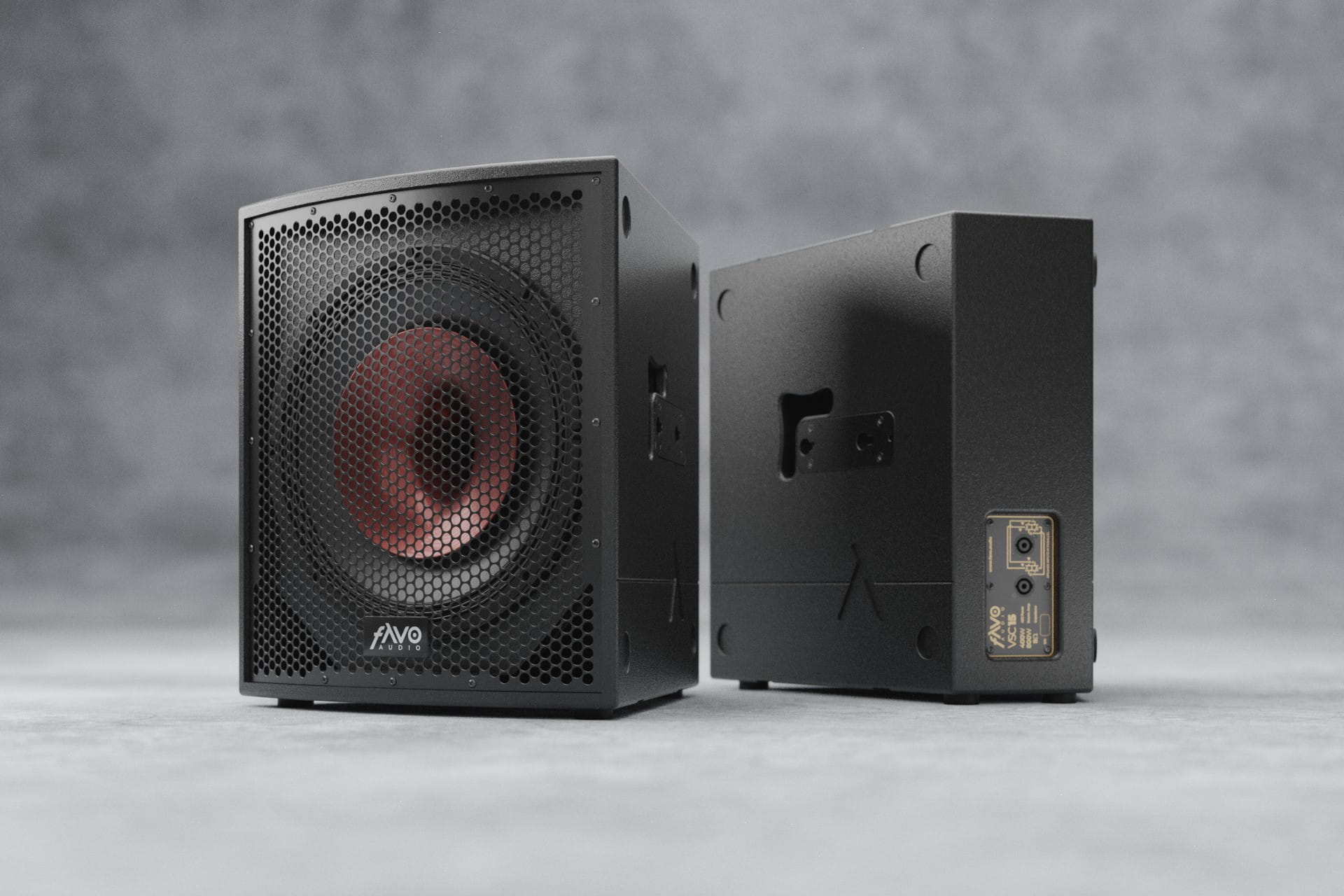

NAW VSC15f satellite with 15"/3" coaxial ferrite speaker and 3" voice coil/1.4" exit driver

The VSC series are full-range satellite systems that allow for the creation of short, series-based PA systems with specific directivity. They are also excellent for infill, sidefill, and drumfill applications combined with bass. Each element has a 40-degree dispersion between the side walls and the tweeter horn, representing a 40x60-degree dispersion. They are equipped with standard connectors that allow for easy assembly of two elements, providing 80-degree dispersion without comb filtering in the transition zone (acoustic crossover). Such filtering, which manifests as unpleasant distortion, is a characteristic of poorly matched PA modules.

APPLICATION:

• live music,
• music from records,
• speech,
• installations.

OPTIONAL:

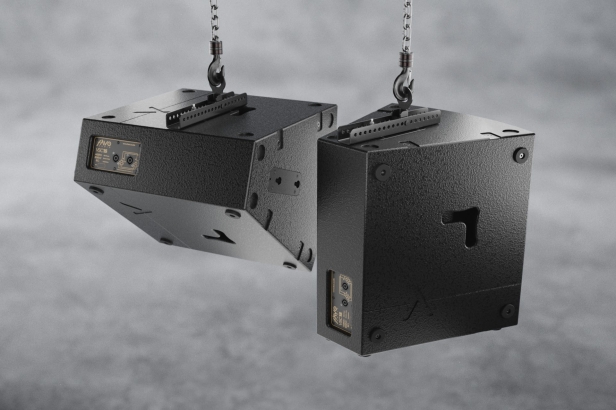

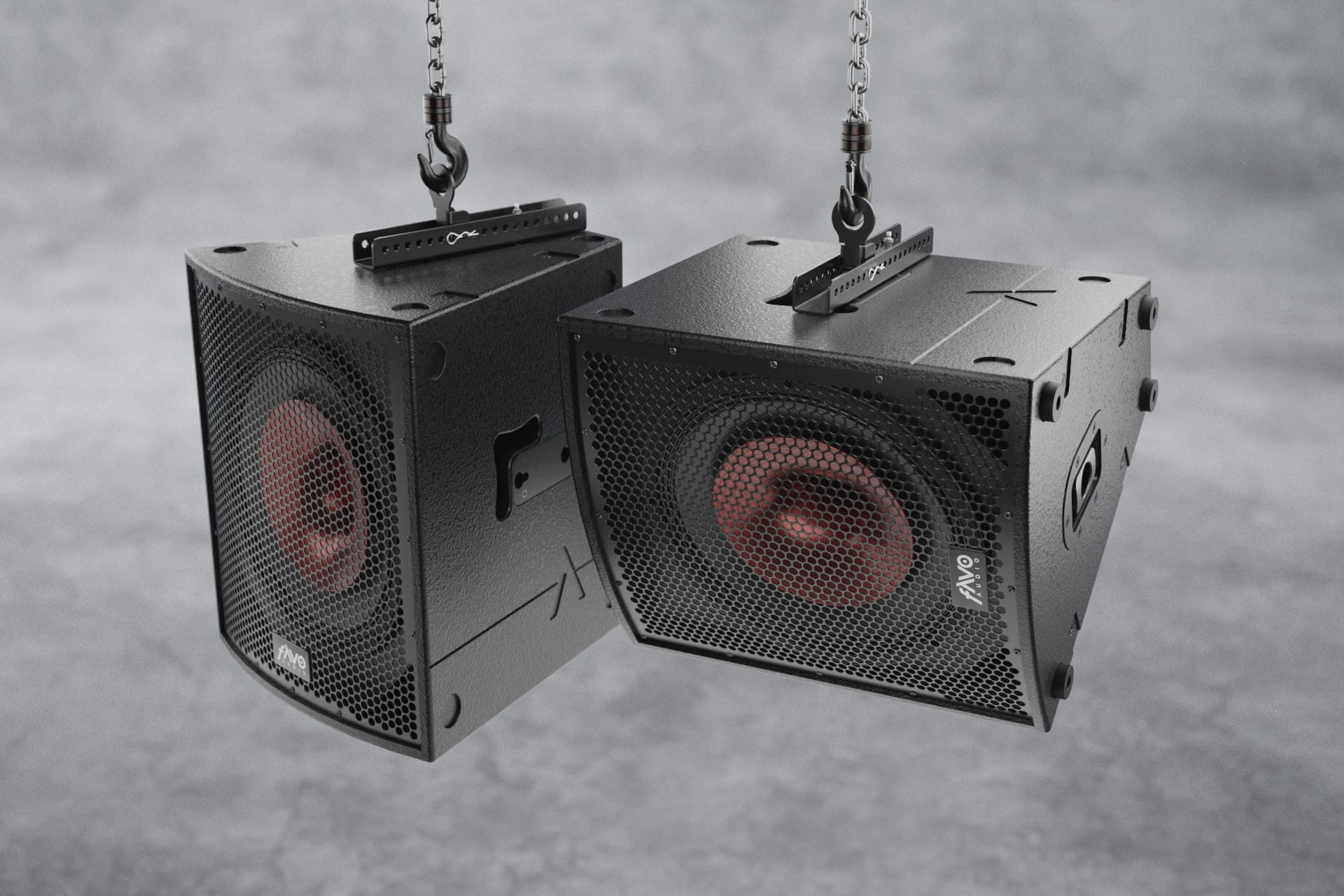

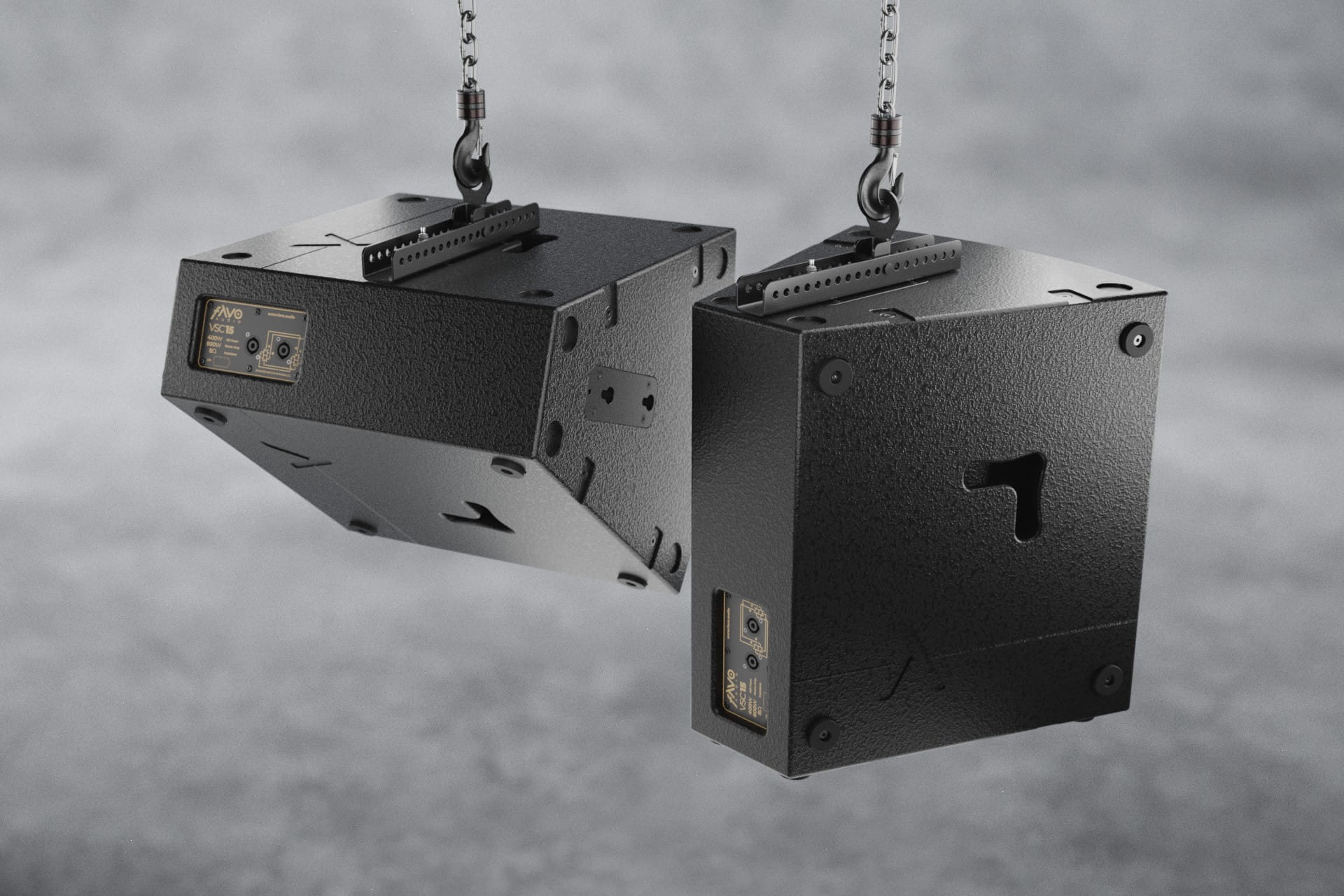

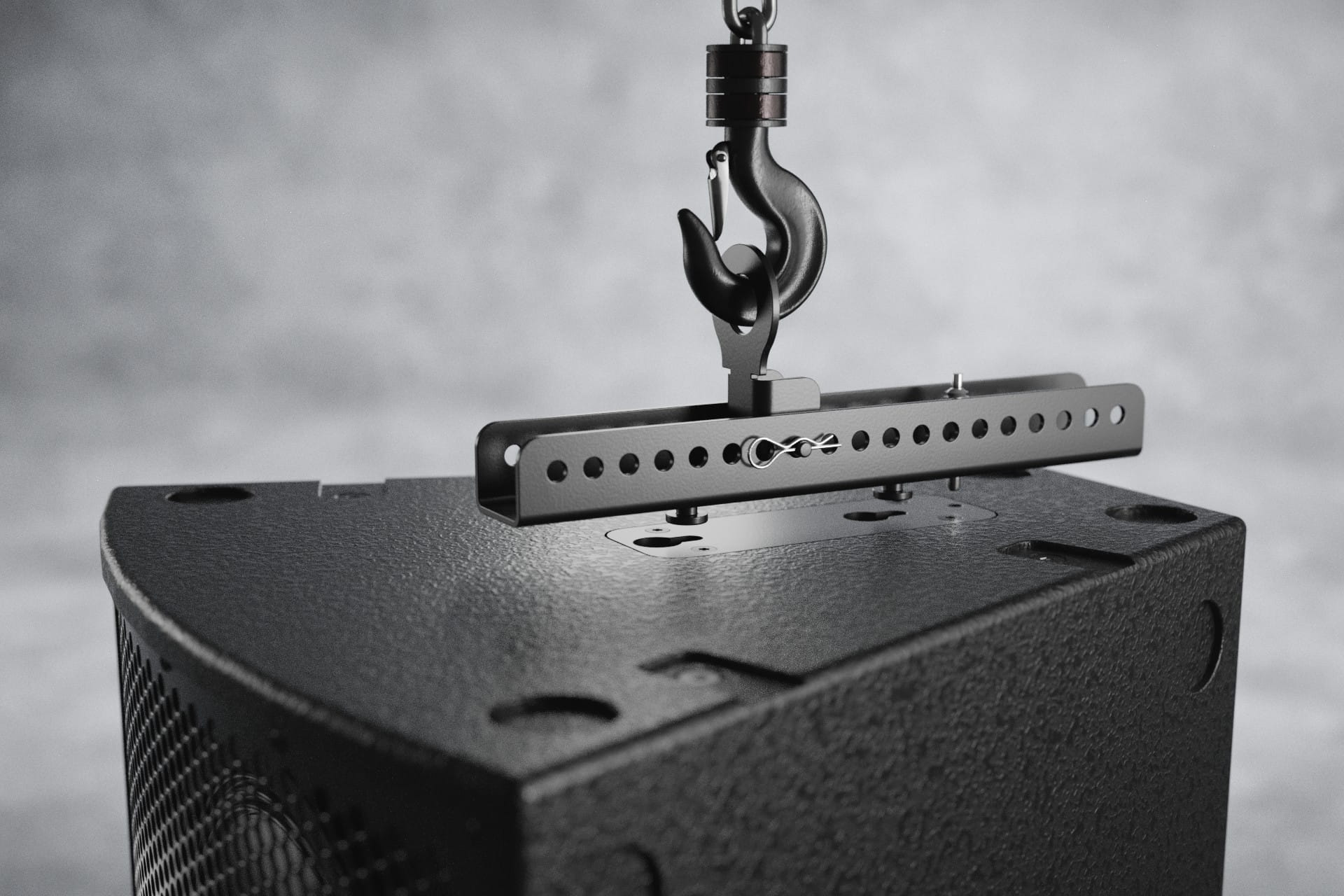

• frames for hanging vertically and horizontally

BASIC TECHNICAL DATA:

• Nominal power : 400W
• SPL efficiency (1w/1m): 99dB
• Recommended amplifier power: 600-800W RMS
• Usable frequency range: 80Hz-18kHz
• HF tube dispersion: 40 degrees horizontally x 60 degrees vertically
• Maximum SPL (peak CF 6dB): 131dB
• Maximum SPL under long continuous load: 125dB
• Speakers: B&C Speakers coaxial 15" ferrite with 3" voice coil, 1.4" exit driver with 3" voice coil, common magnet
• Impedance: 8Ω

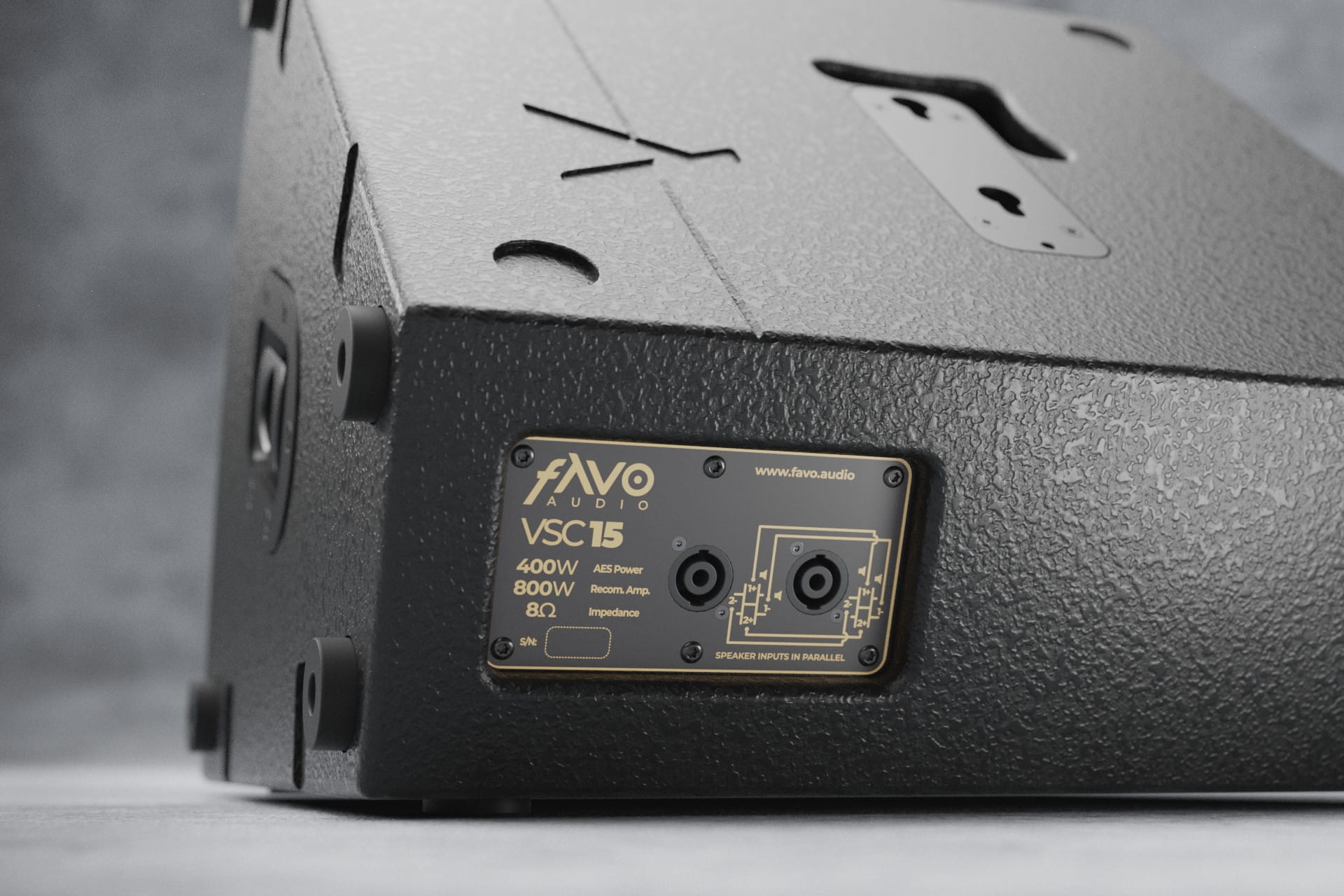

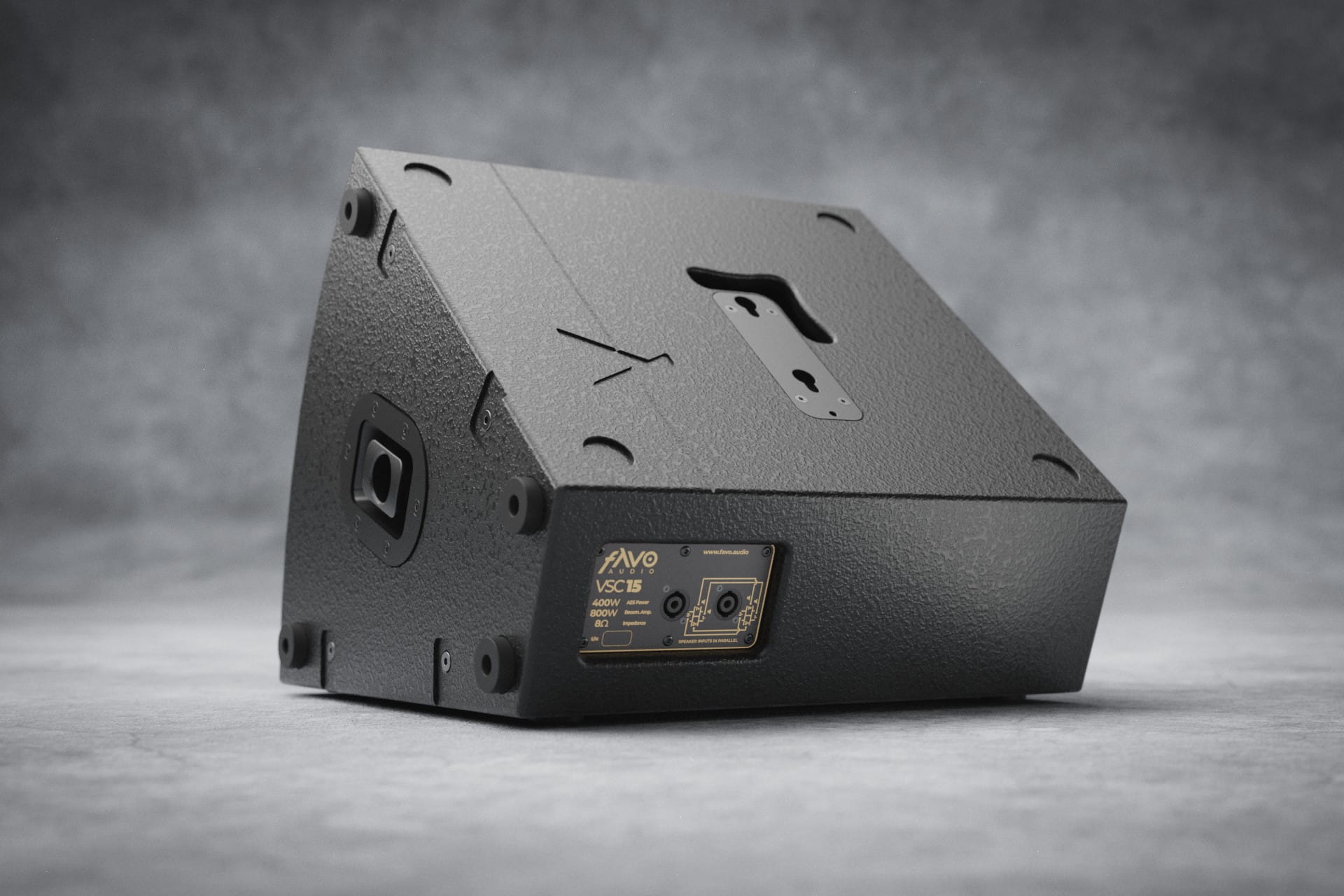

• Connectors: 2x Neutrik NL4MP
• Dimensions (HxWxD): 510mm x 470mm x 465mm, 40 degrees between side walls
• Weight: 24kg
