Favo C5

PRODUCT DESCRIPTION:

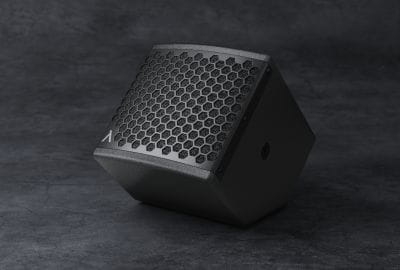

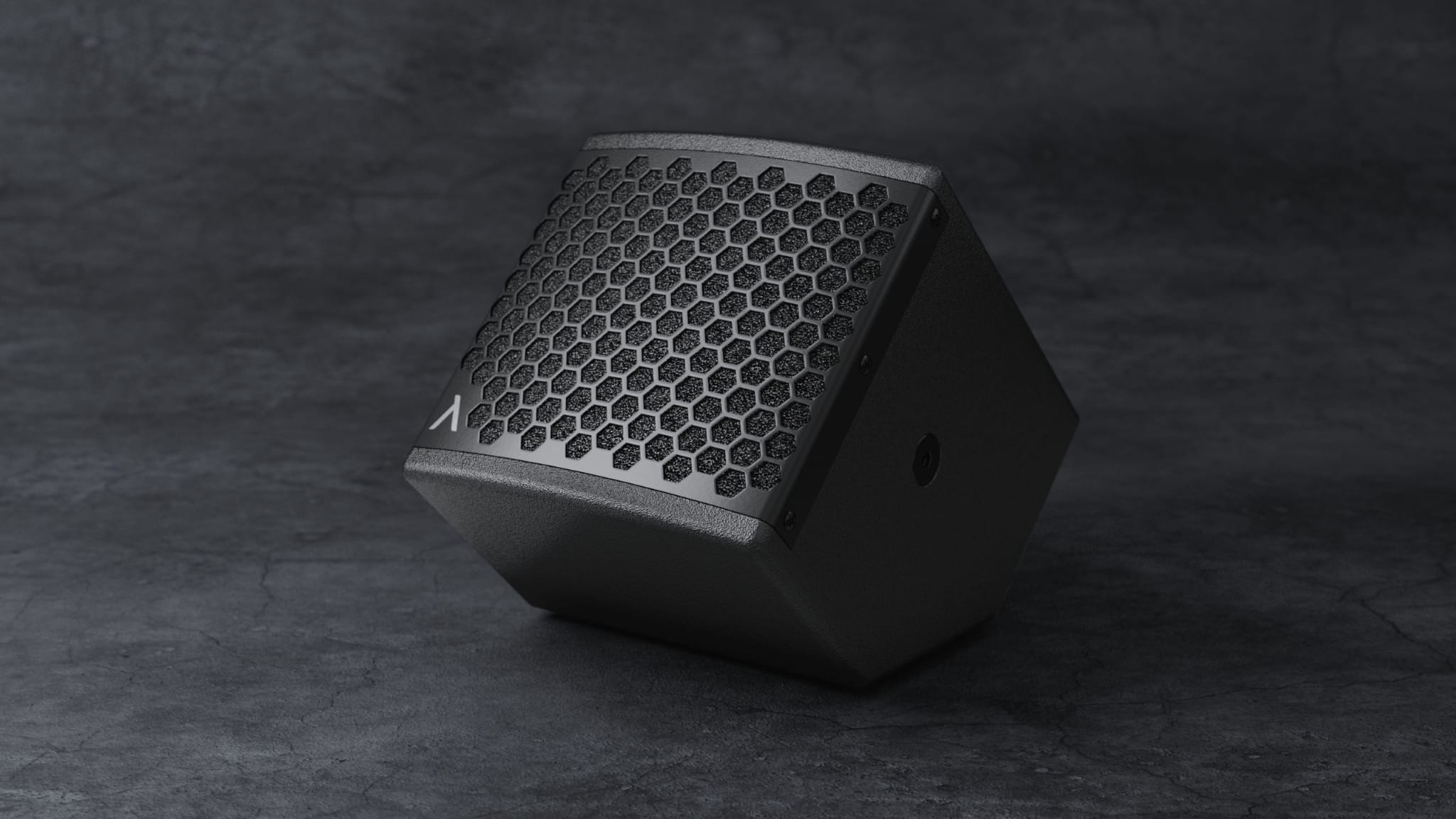

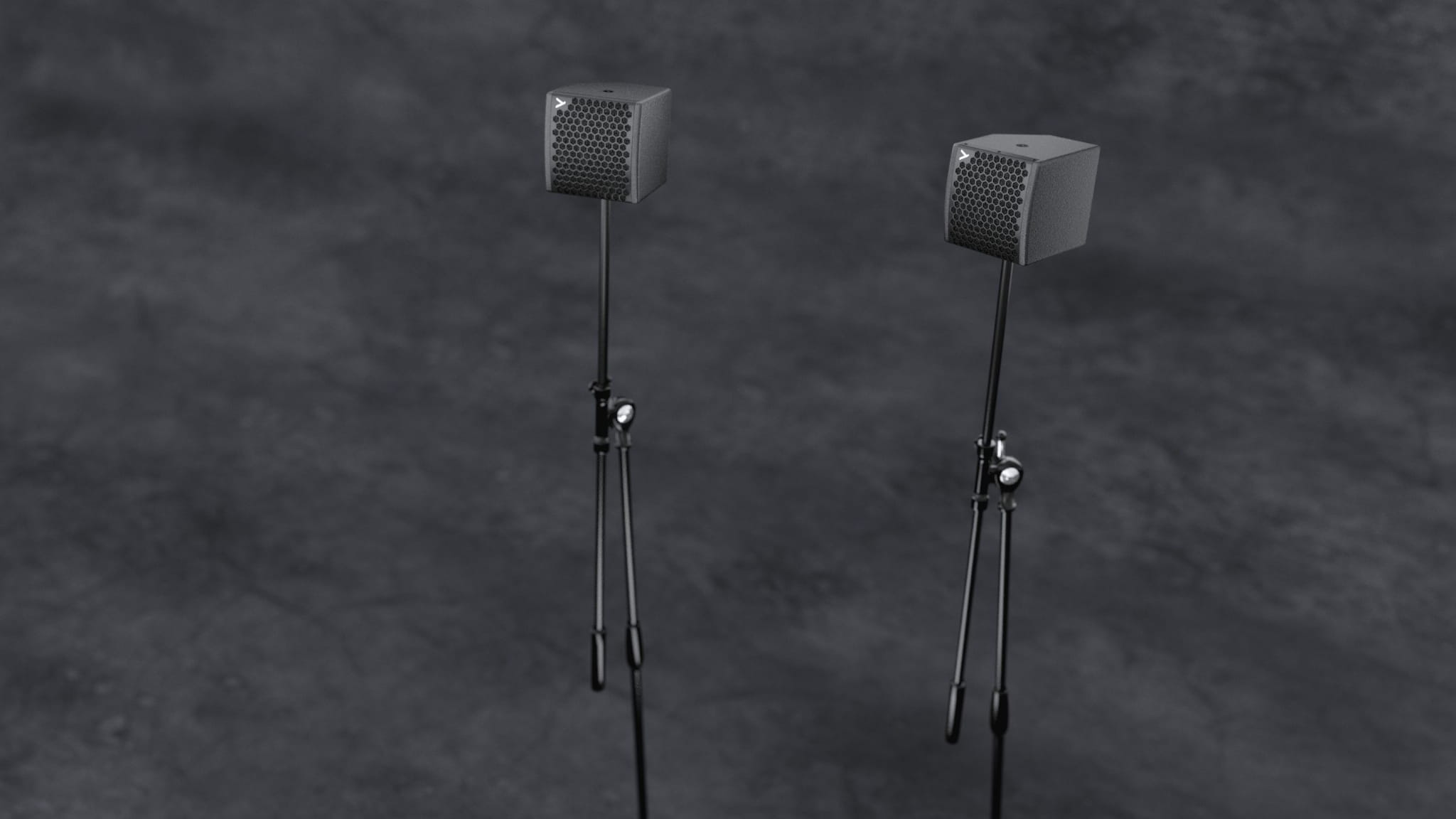

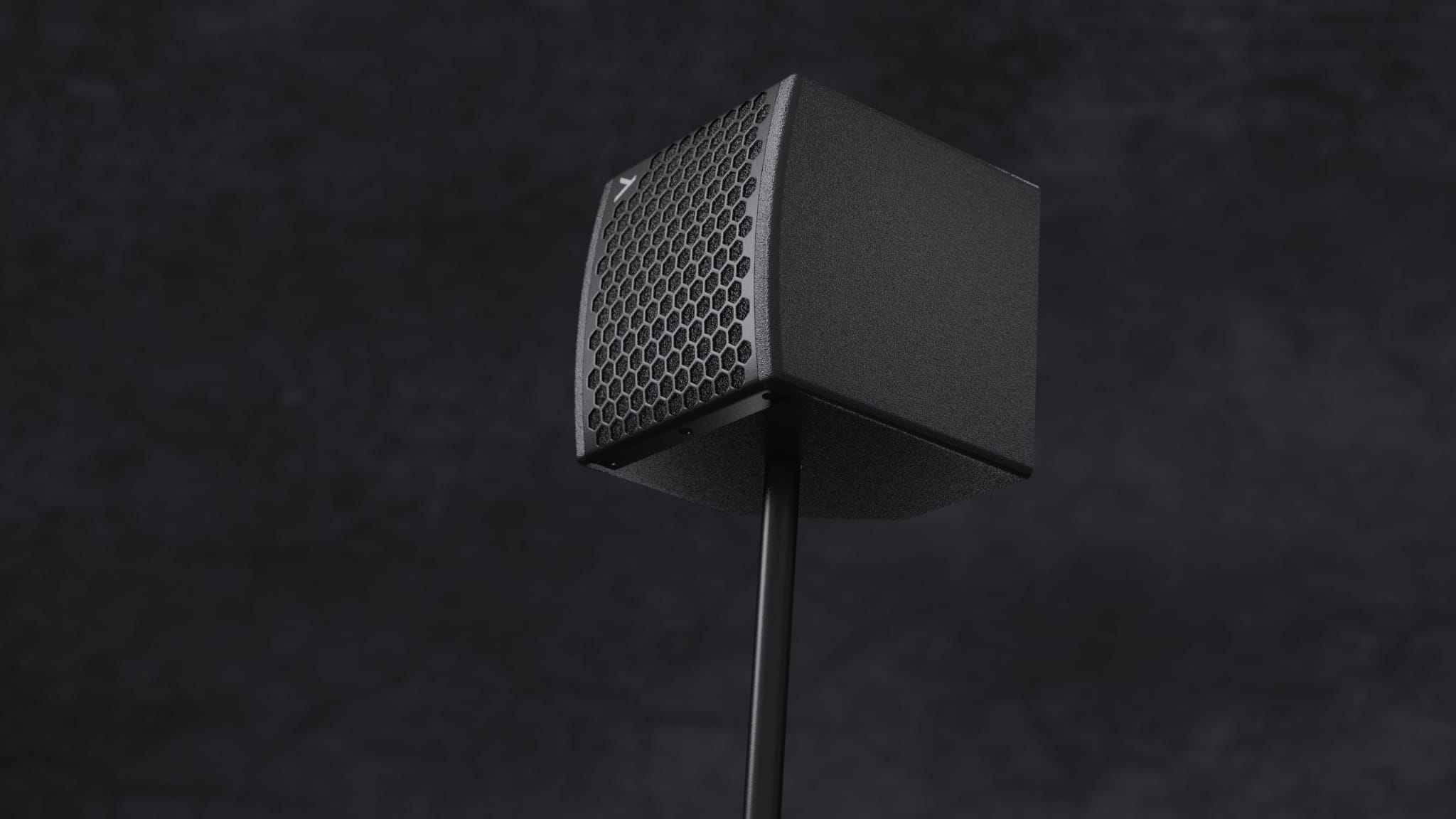

NAW C5. Plenty of great sound in an ultra-compact size. A full-range, two-way satellite with a 5" coaxial driver and a 1" diaphragm. Its point source design with a 90-degree nominal directivity symmetrical about the axis allows for use where visual discretion and excellent sound quality are required. Ideal for short-range fills (max 100 dB at 8 m), for personal monitoring (mounted on a microphone stand with an M10 thread or as a floor monitor), and in installations where, in addition to discretion, sound quality at high volumes is essential. The product is covered with a waterproof material and is suitable for outdoor installations.

APPLICATION:

• Installations, fillings, personal monitor
• Recorded music
• Speech
• Live music and a small sound system (subwoofer support required)

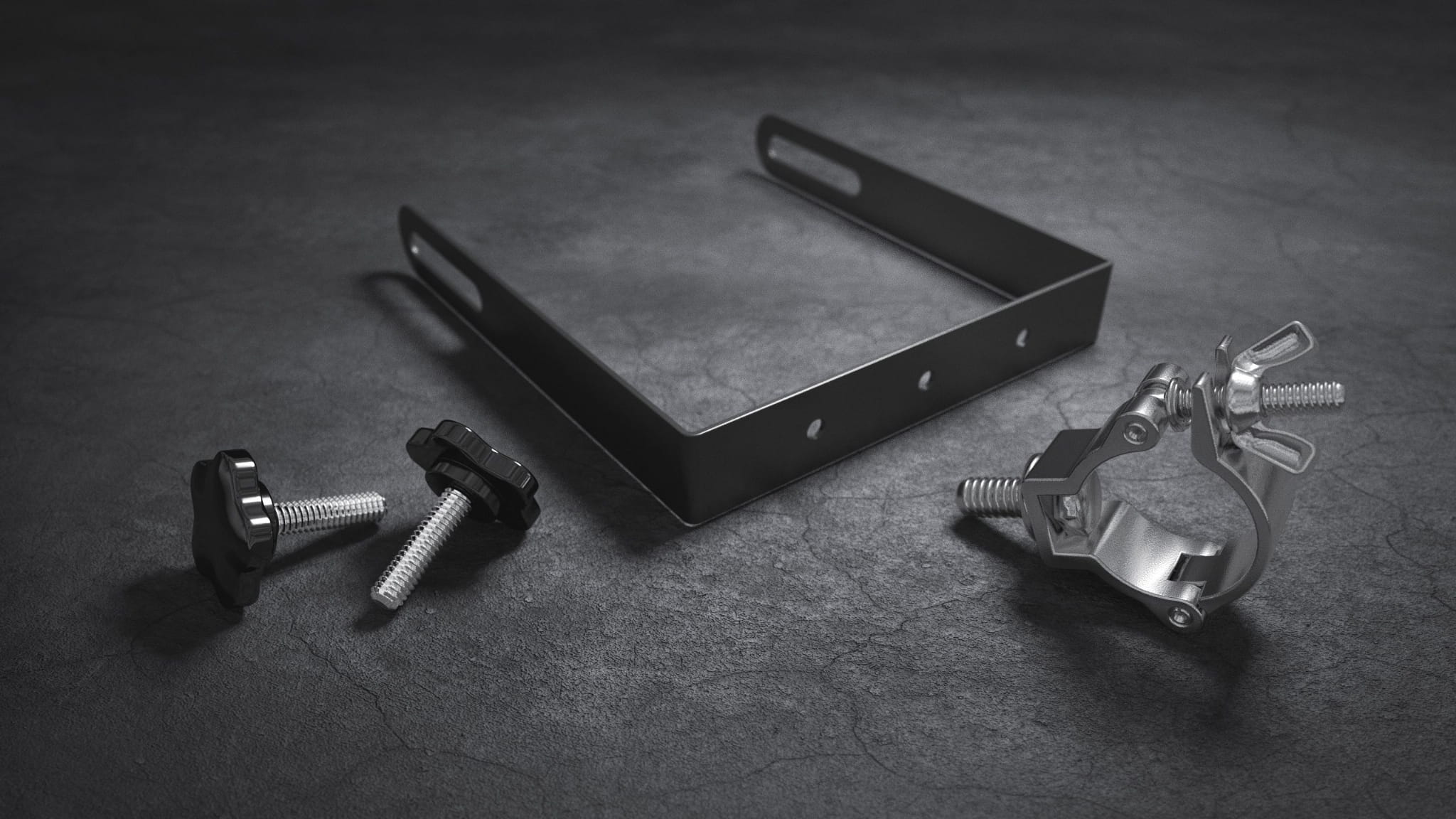

OPTIONAL:

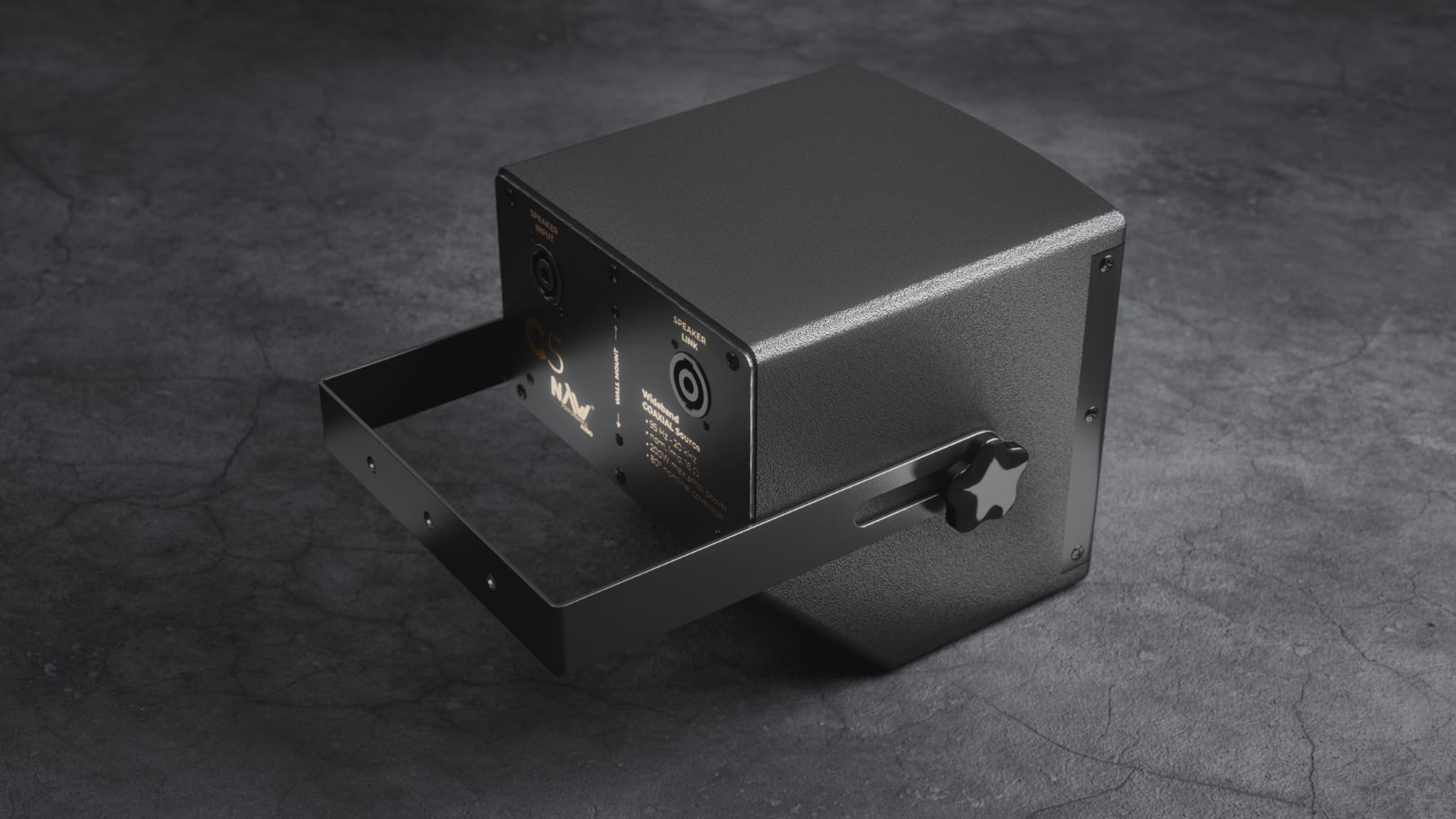

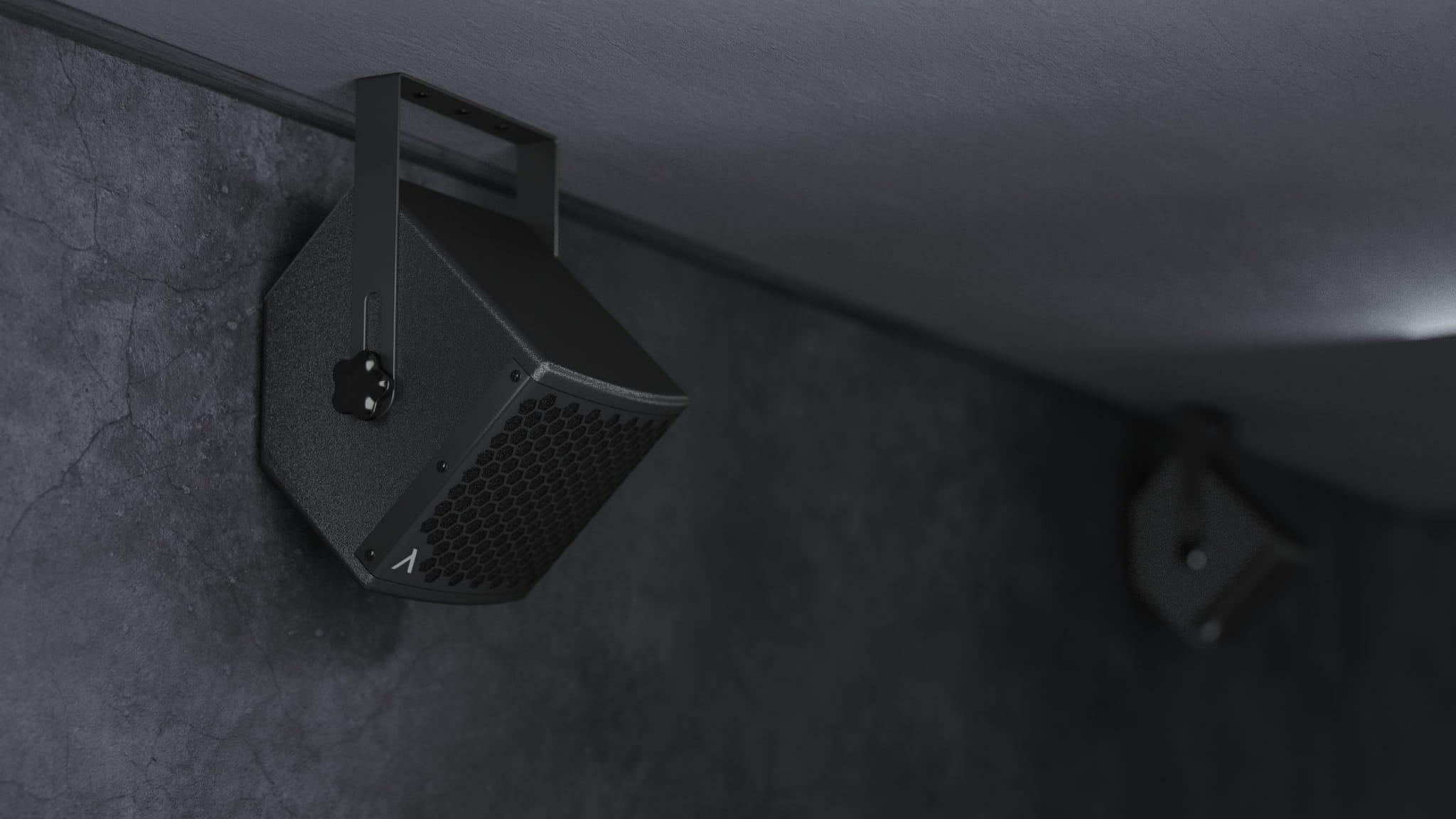

• installation frame with M10 knob

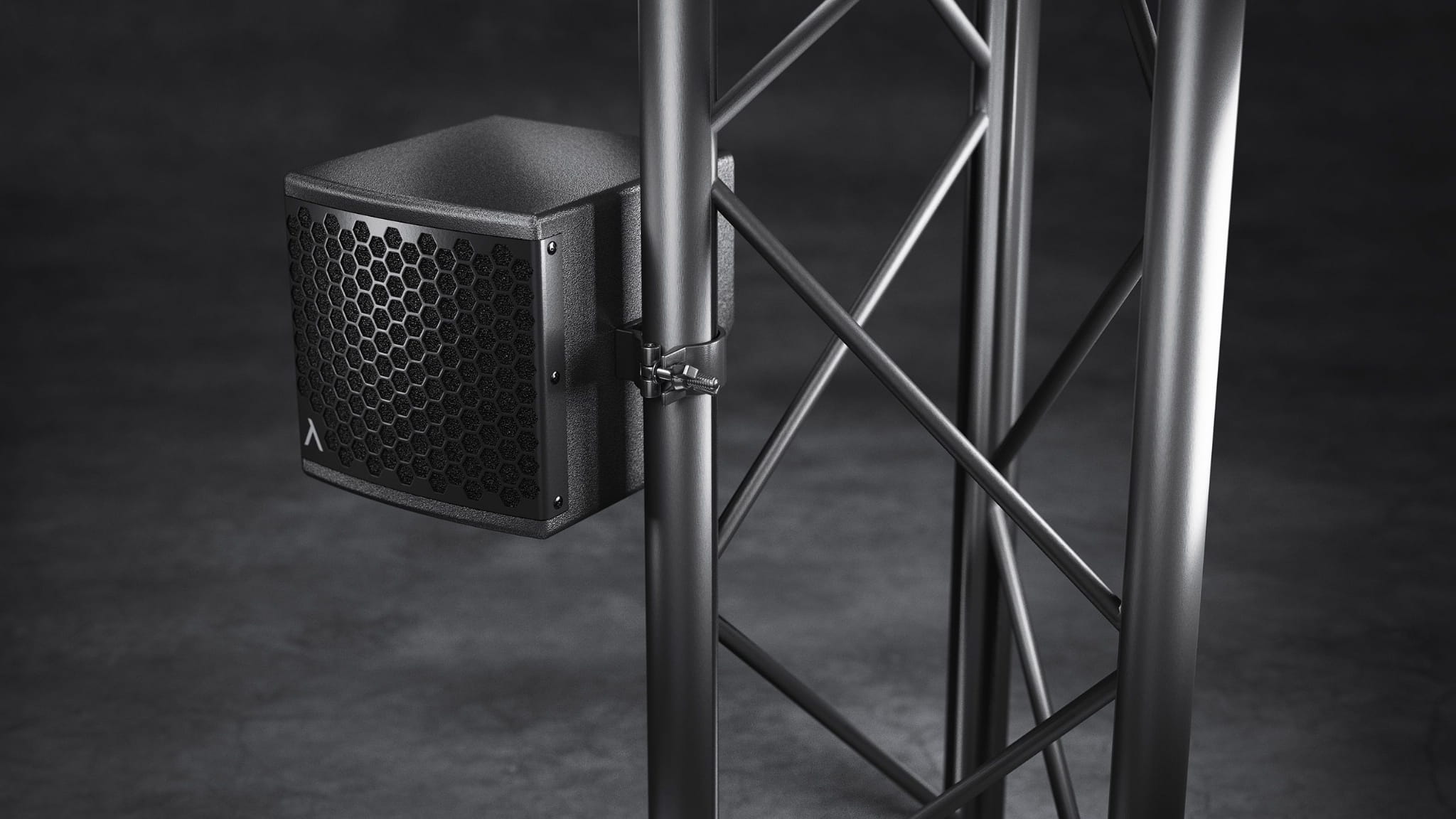

• 50mm pipe holder

BASIC TECHNICAL DATA:

• Nominal power : 150W
• SPL efficiency (1w/1m): 91dB
• Recommended amplifier power: 150-250W RMS

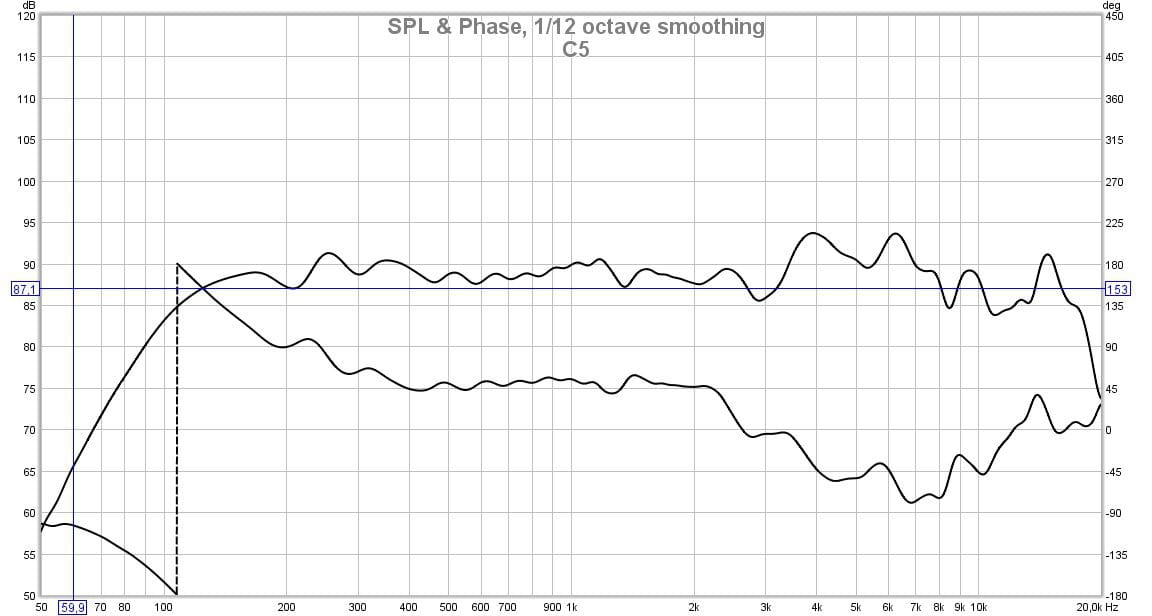

• Usable frequency range: 95Hz-20kHz (-10dB)
• HF waveguide directivity: 90 degrees symmetrically along the axis
• Maximum SPL (peakCF6dB): 119dB
• Speakers: Custom B&C Speakers coaxial 5" ferrite driver with 1.7" voice coil, 1" voice coil
• Impedance: 16Ω

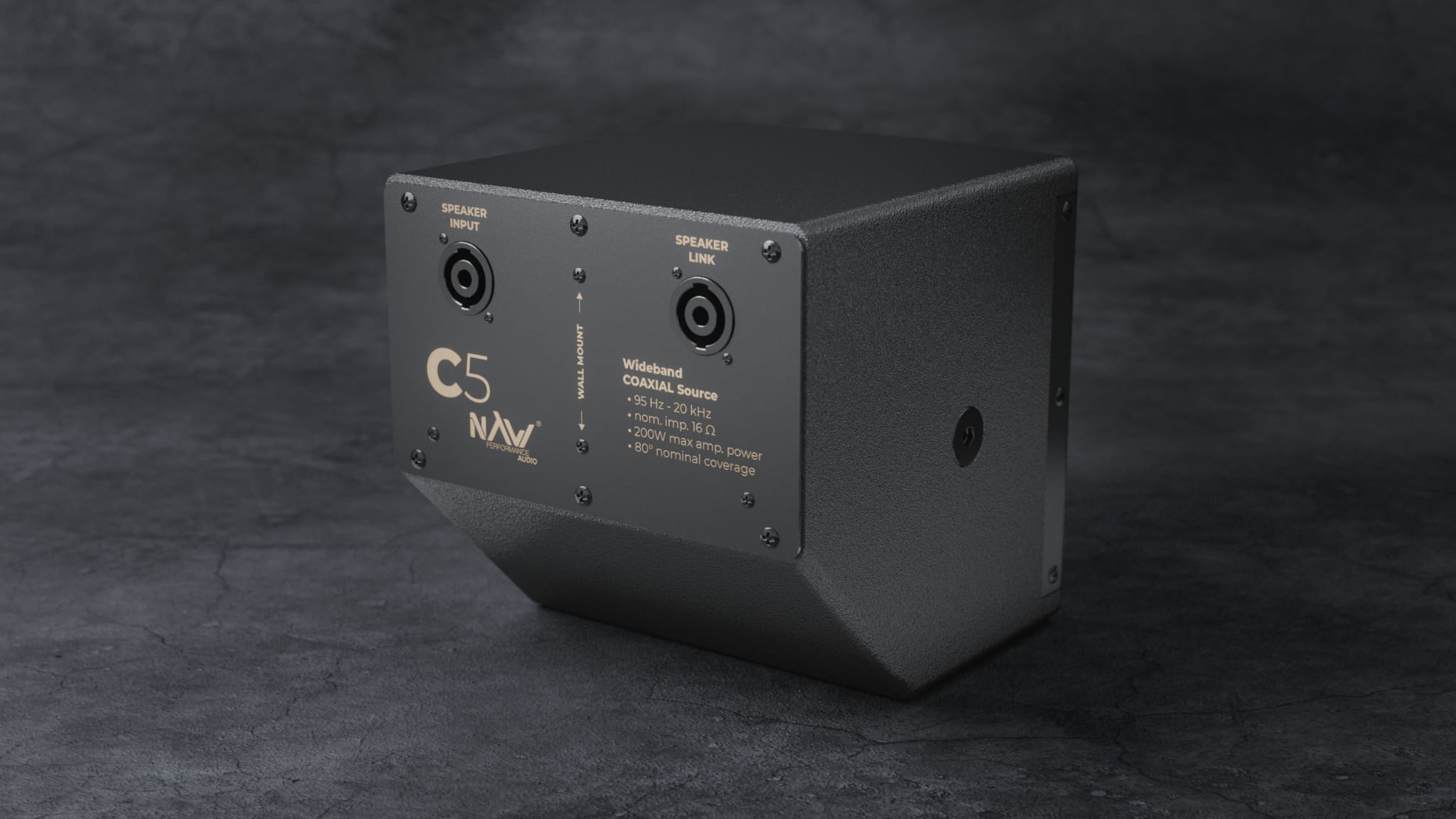

• Connectors: 2x Neutrik NL4MP

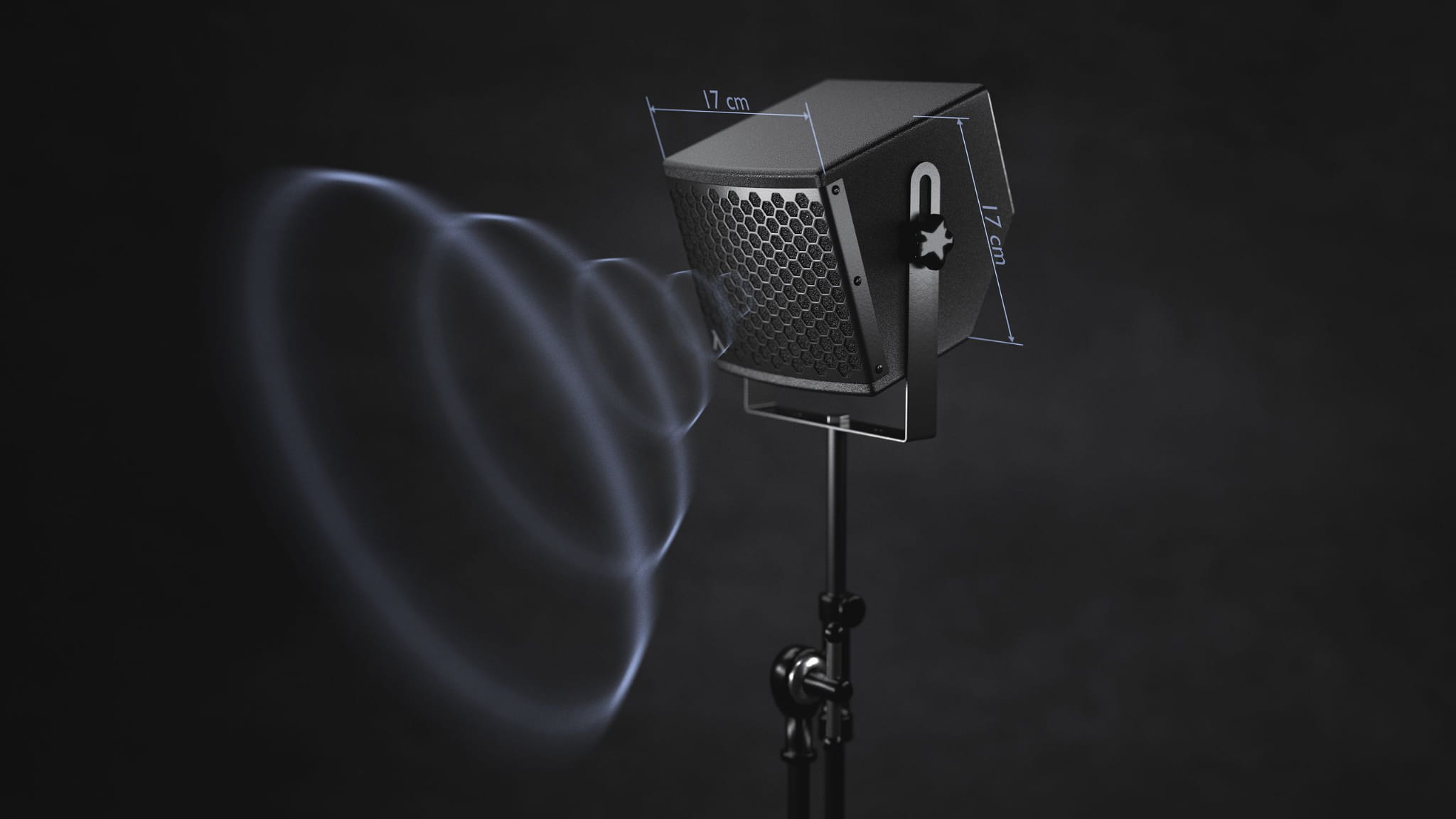

• Dimensions (HxWxD): 170mm x 170mm x 170mm
• Weight : 3.5kg
